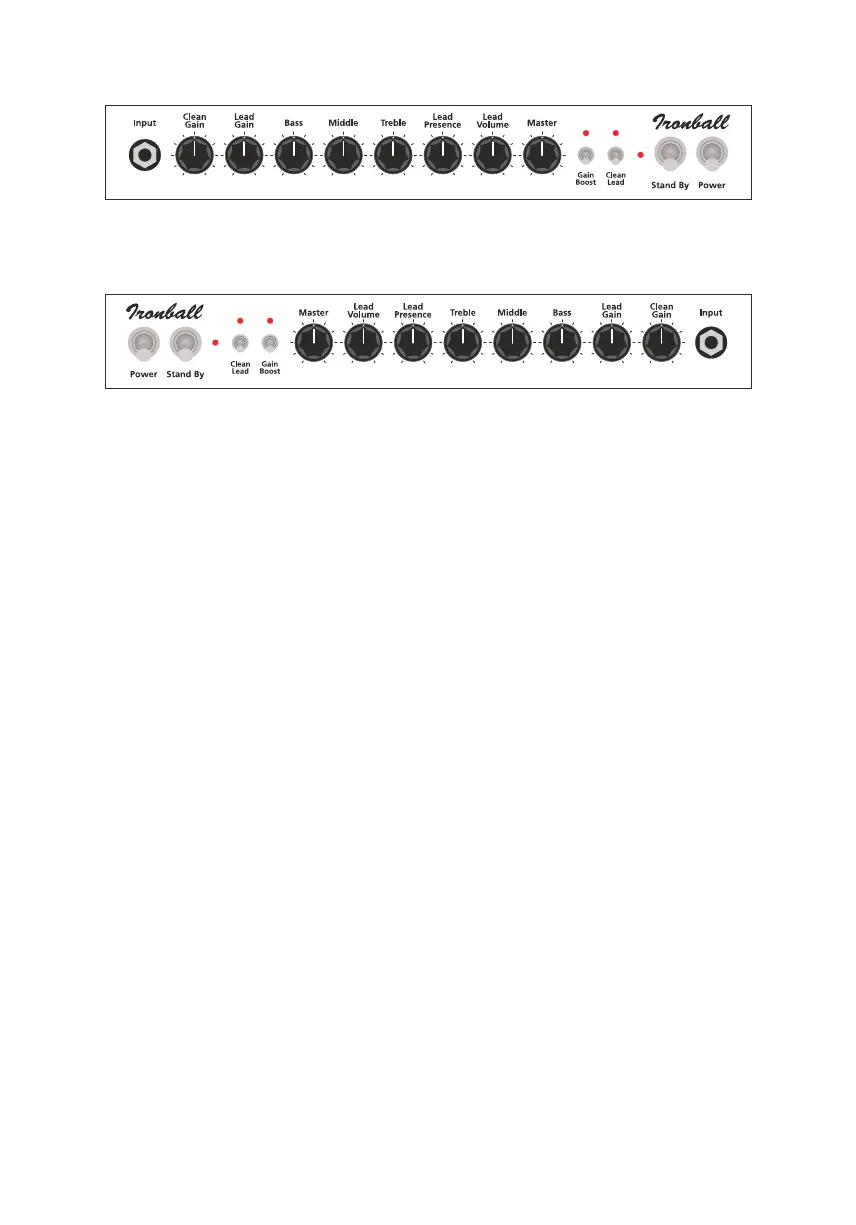

Figure: Front panel E606 head
Figure: Front panel E600 combo
Input
Input (conventional 6.3mm / ¼“ TS) unbalanced input. Plug your guitar in here using a shielded instrument
cable.
Clean Gain
Gain control for the Clean channel.
Lead Gain
Gain control for the Lead channel.
Bass
Bottom end voicing control of the preamp´s passive EQ.
Middle
Mid-range voicing control of the preamp´s passive EQ.
Treble
Upper range voicing control of the preamp´s passive EQ.
Lead Presence
This control defines the Treble response in the poweramp stage for the Lead channel.
Lead Volume
Volume control for the Lead channel (pre-FX Loop, influences the send level). Use this knob to dial in the
desired balance of levels between the Lead and Clean channels.
