7

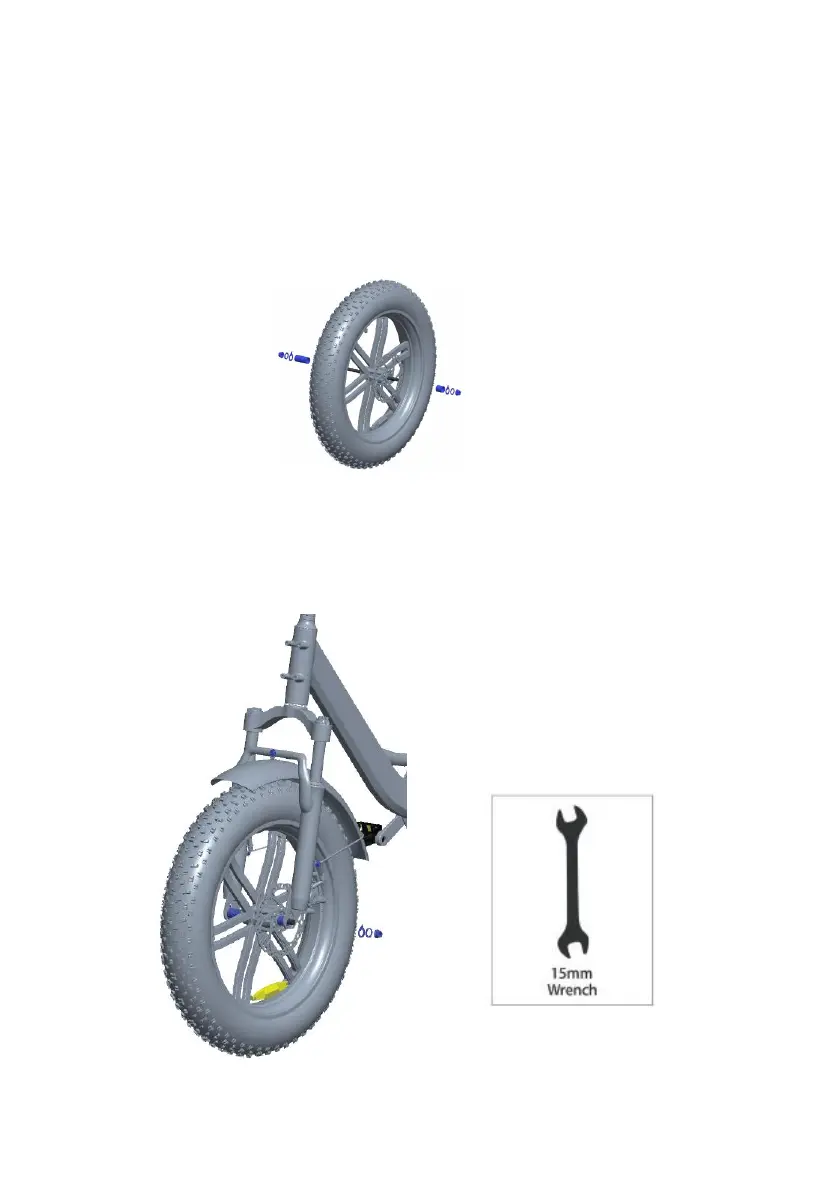

4.2 Install the front wheel
1
Remove the front wheel to remove the packing material,
and install the screw gasket shaft sleeve according to the
drawing.
2
Place the front wheel in the front fork card slot and lock it
with a 15mm wrench.
