Installation Instruction

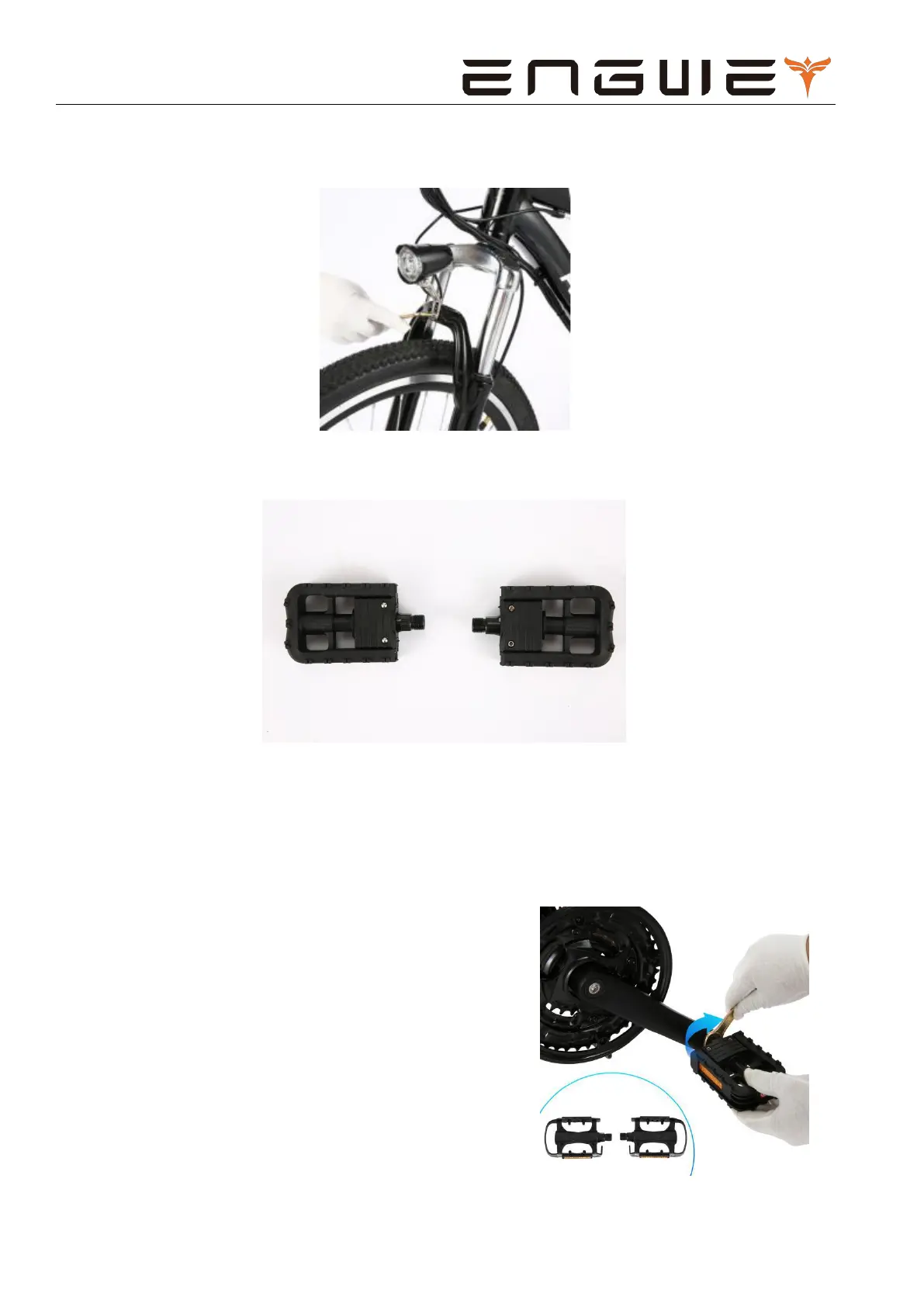

5. Install Front Light.
5.1 Screw front light right on front fork holder as shown.
6. Install Pedal.
6.1 There is a right pedal marked "R" and a left pedal marked "L".
6.2 The pedal marked "R" has right-hand threads. Tighten it in a clockwise direction.
The pedal marked "L" has left-hand threads. Tighten it in a counterclockwise direction
(anti-clockwise). Turn the right pedal marked "R" into the right side of the crank arm, and
the left pedal marked "L" into the left side of the crank arm.
☛Make sure the threads of each
pedal are fully into the crank arm.
☛Make sure pedals are fully
tightened with wrench.
☛Note:
Be sure to identify R/L letters
on pedal’s bolt when you installing.
