11
2.7 Analog Output
The meter can output AC and DC voltage signals proportional to

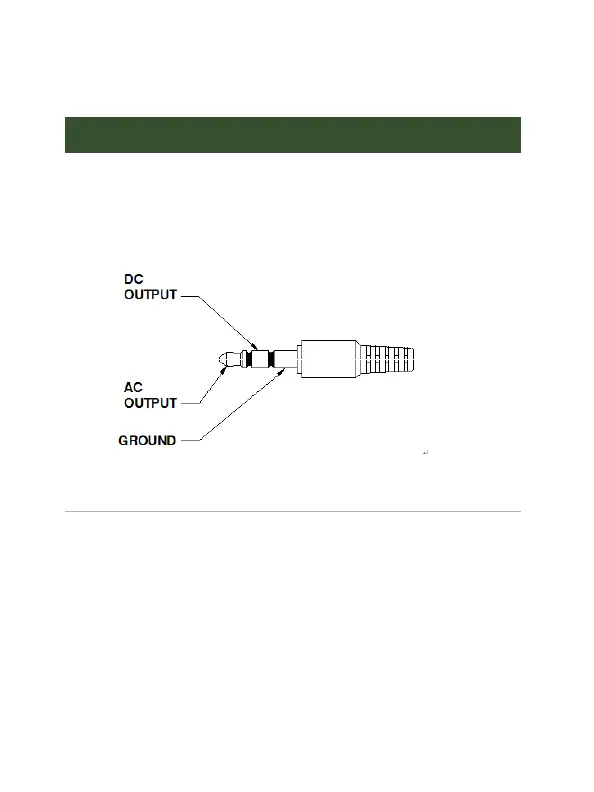

the measured values for other recorders or devices. A 3.5mm stereo
mini plug is required for the outputs.
AC Output
An AC signal corresponding to the frequency-weighted signal is
available at this connector.
Output voltage: 4Vrms±100mVrms（at full-scale of range）
Output impedance: 1kΩ
Load impedance: ≥1MΩ
