Page 29 of 72 EN109-1498751-47 IFU

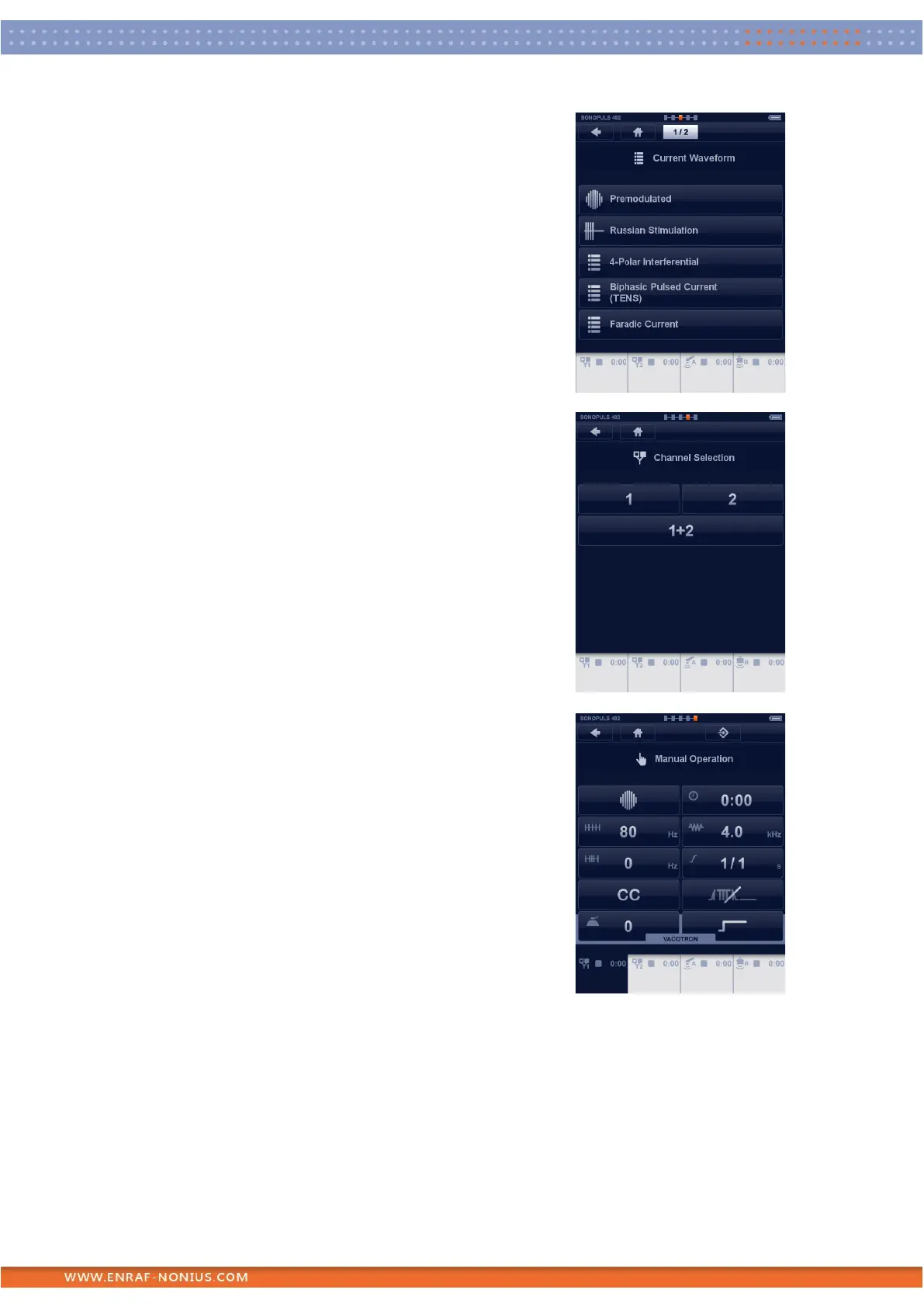

Select from the list a current waveform
Scroll to the next page with the central controller [7] or select
the current waveform by touching the button.
Note: some of these selections are groups and in the next
screen another list appears from which the current waveform
can be selected.
Channel Selection
Here you can select the channels for electrotherapy.
When channel 1 is selected, channel 2 is still available for
another therapy.
When Channel 1+2 is selected both channels have the same
parameters. Only the intensity can be set differently.
Parameter screen
Adjust the parameters by touching the button and change the
value with the central controller [7].
Note: some parameters are grouped and in the next screen the
settings can be changed the same way as above.
