EN109-1435752-42 Page 14 of 29

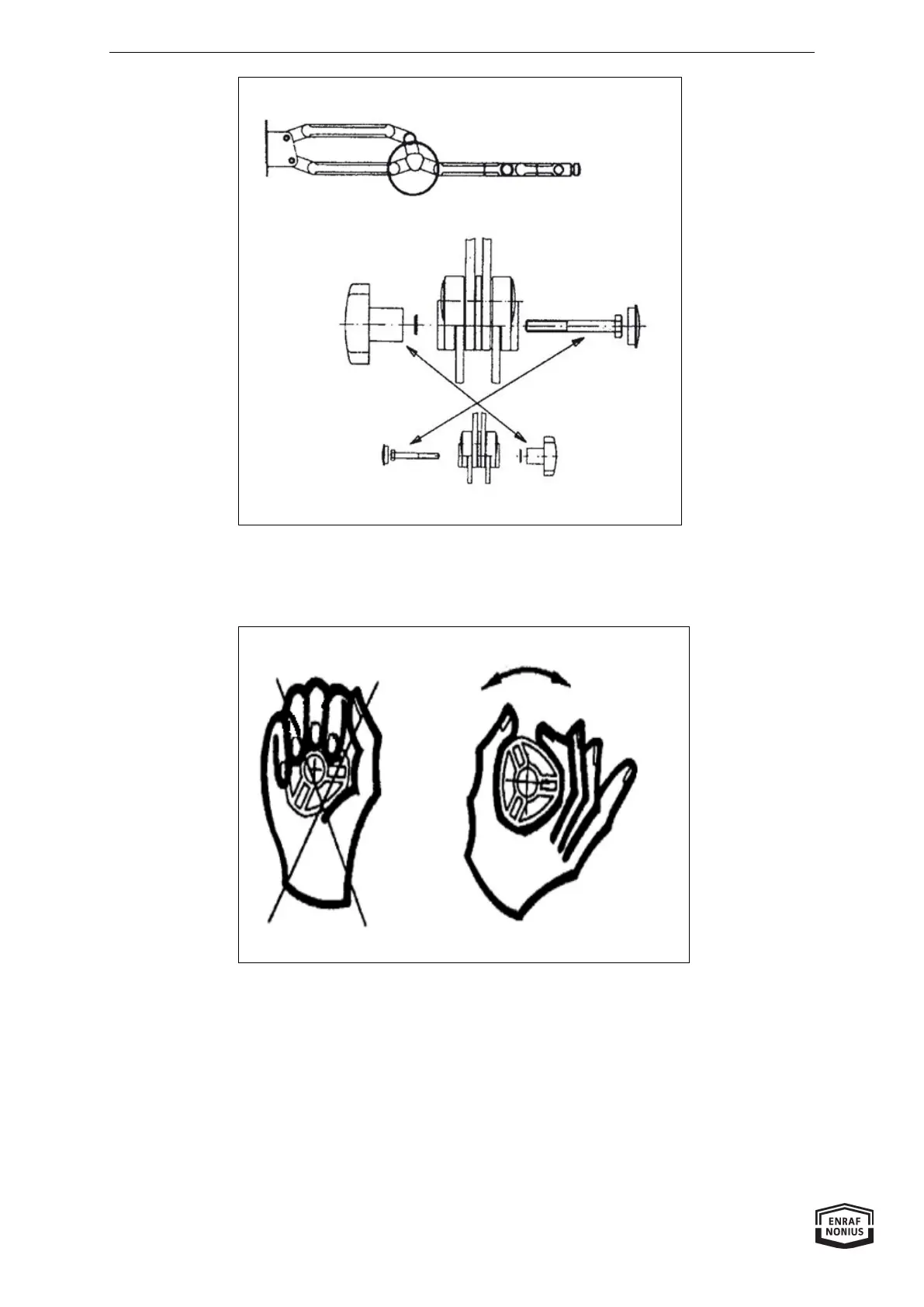

8.7.2 Operation fixation button
8.8 Connection HF-cable
8.8.1 Connection to the unit
The HF-cable is connected through connection point [12] to the unit by means of a screw thread
connection.
The length of the HF-cable is critical. Therefore only use the by Enraf-Nonius supplied cable.
8.8.2 Connection to the radiator
The HF-cable is connected to the radiator by means of a “fast” coupling.
