Enraf Nonius Sonopuls 190 User Manual

Page 18 of 34 EN109-1631750-48 IFU

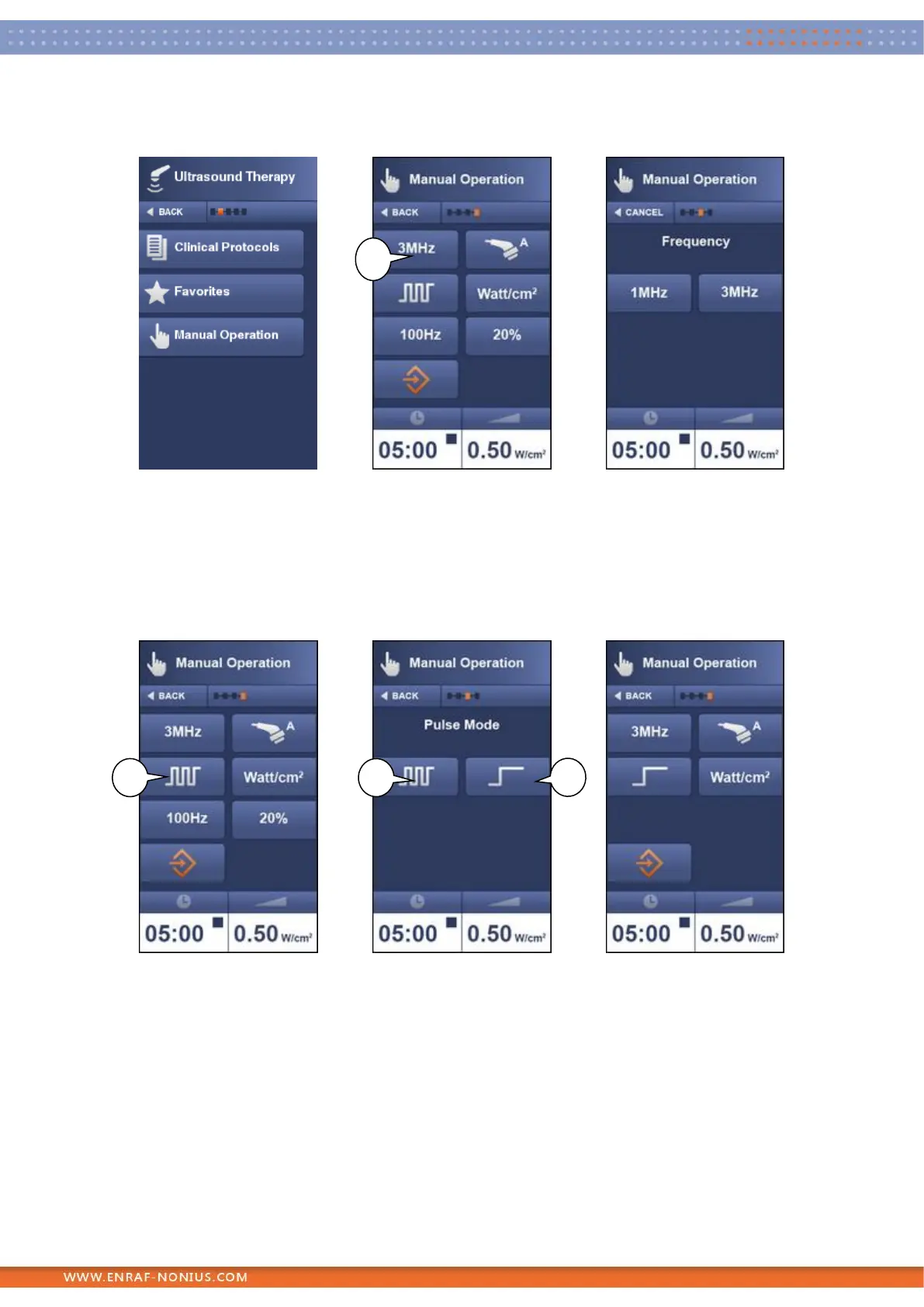

Manual Operation
Ultrasound Frequency
• Push the action icon
“Manual Operation” to
activate this function
Select a parameter in the
screen by pushing the icon.
• Push icon [1] to change the
frequency.
Select the frequency by
pushing the icon.
• 1 MHz is deep
• 3 MHz is superficial
You will return to the previous
menu.
Continuous / Pulsed Mode
• Push the icon [2] to select
continuous or pulsed mode
Push A or B
• A is pulsed mode
• B is continuous mode
Push OK to confirm and to
return to the previous menu
If continuous pulse mode is
selected no other parameters
(Frequency or Duty Cycle) are
available.
1
2
A
B
