Page 6 of 34 EN109-1631750-48 IFU

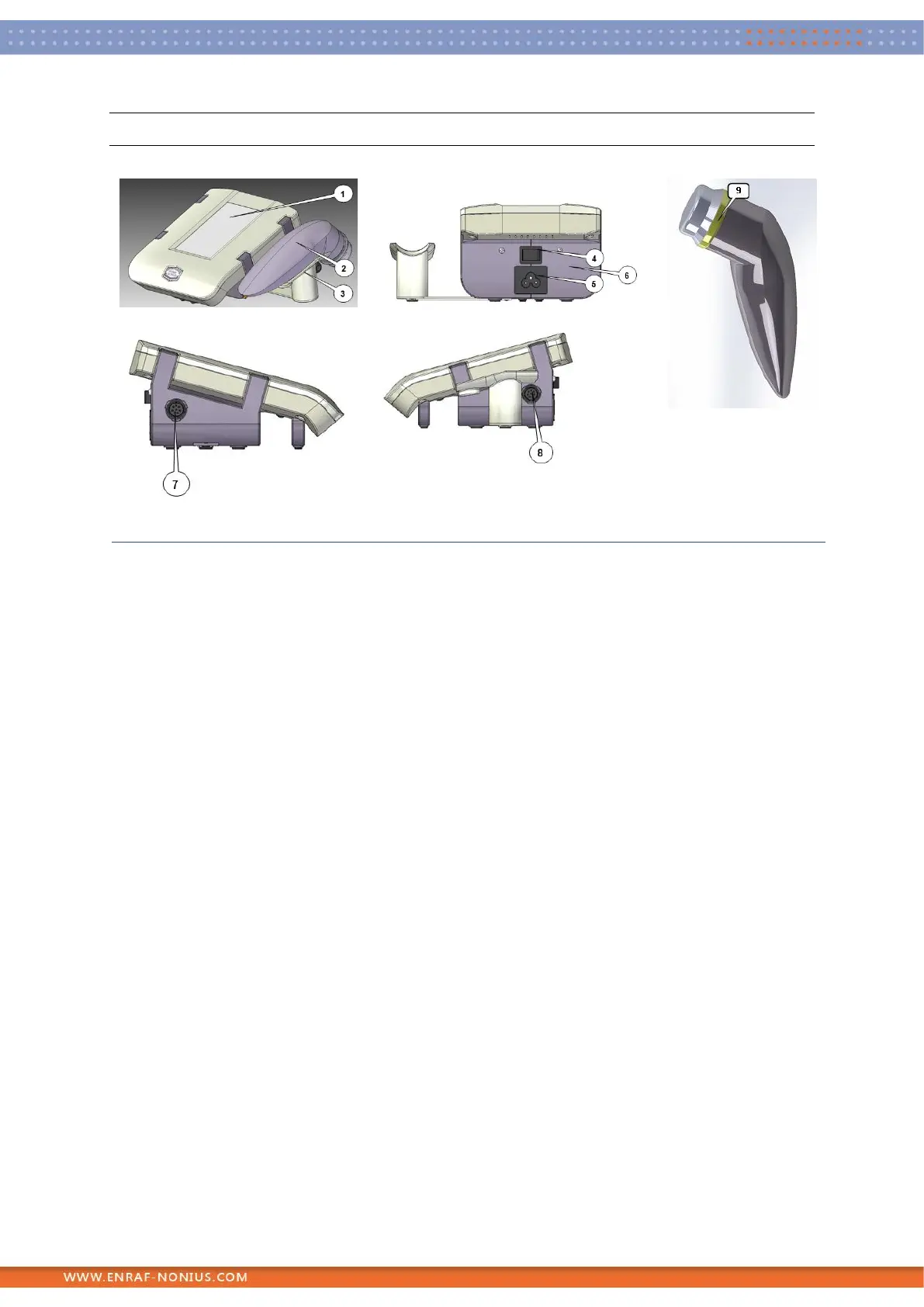

3 Device components
Colour TFT display 4.3” with touch screen
Ultrasound applicator Multi-frequency 1 and 3 MHz
Applicator holder. Can be mounted on the right or left
side of the unit.
To switch the unit on and off
When turning the unit off the display remains visible for a
few seconds (low-energy method).
Connector for mains cable
To disconnect the device from the power line, unplug the
power cord.
Type number/warning
sticker
Provides information on the apparatus, such as type and
serial number, as well as connection data such as mains
voltage and maximum current consumption.
Connection Ultrasound
Applicator A
Ultrasound applicator connection left side
Connection Ultrasound
Applicator B
Ultrasound applicator connection right side
Contact Control light ring
This LED ring emits yellow color light when the contact
between the treatment area and the applicator is poor.
