Enso PB875 - Quick Reference Guide; Control Box and Electronics Overview

8
Power Cord
Input Cord
Split Cable
Powerdown
Box
LED Light
quick reference guide
Not to scale. For illustration purposes only. Read all instructions before beginning installation.
ELECTRONICS OVERVIEW
If installing a split unit - see page 14.

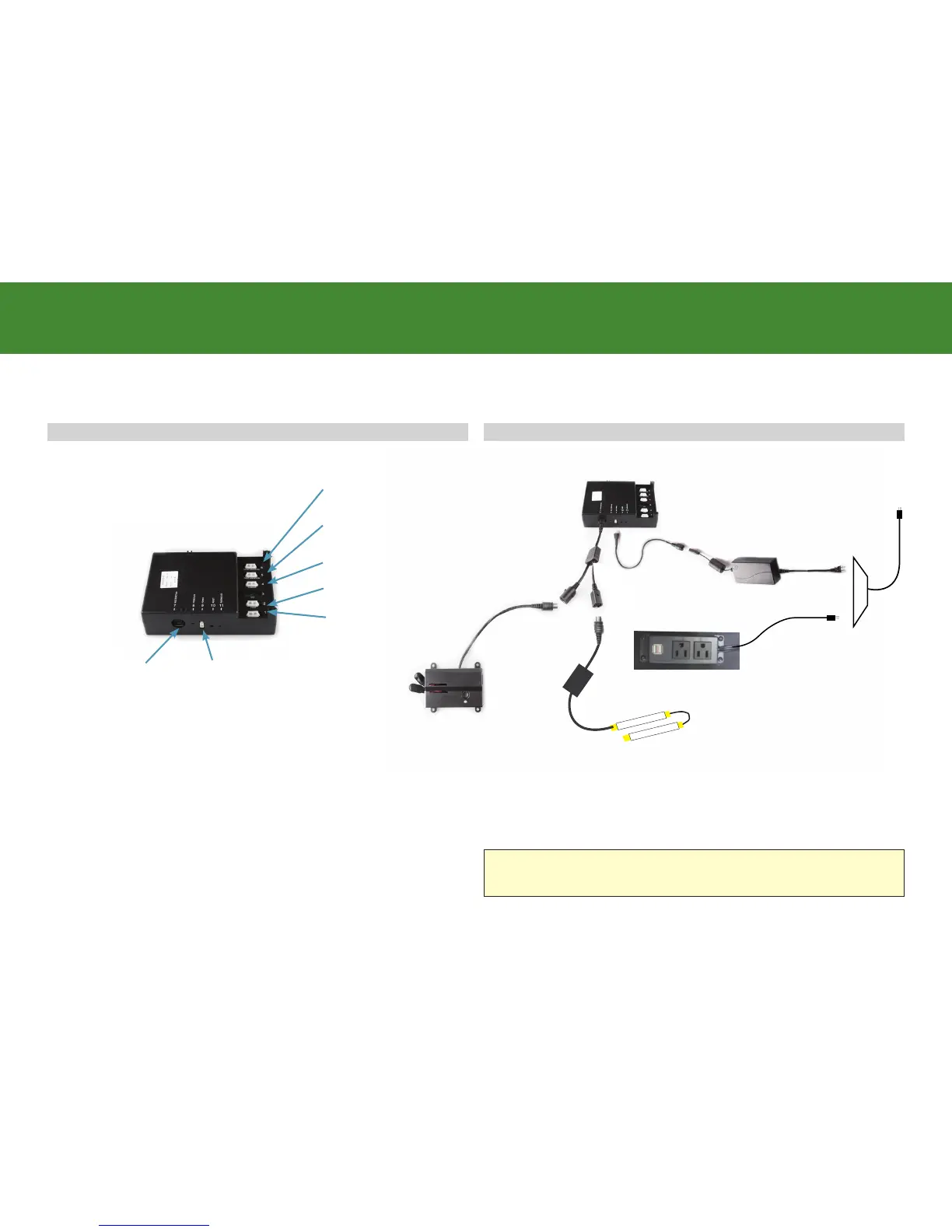

CONTROL BOX OVERVIEW
Power Supply
Connection
Multi-function
Connection
Foot Motor
Port
Lumbar Motor
Port
Head Motor
Port
Head Massage-
Motor Port
Foot Massage-
Motor Port
Control Box
Power Supply
Scart Connector
USB Charger &
Outlet
