Section 6 - Standard Sound Programming
.jde I2db/oa
cmotl
0 Irequency
Filter 1 = 2 pole / Low-pass
amplitude
_ ampkiudo
Irequoncy
Rlter 2 * 2 pole / High-pass
Irequoncy
Bandpass
FC1 Cutoff/Envelope2
Filter Bank
Cutoff
nvelope2

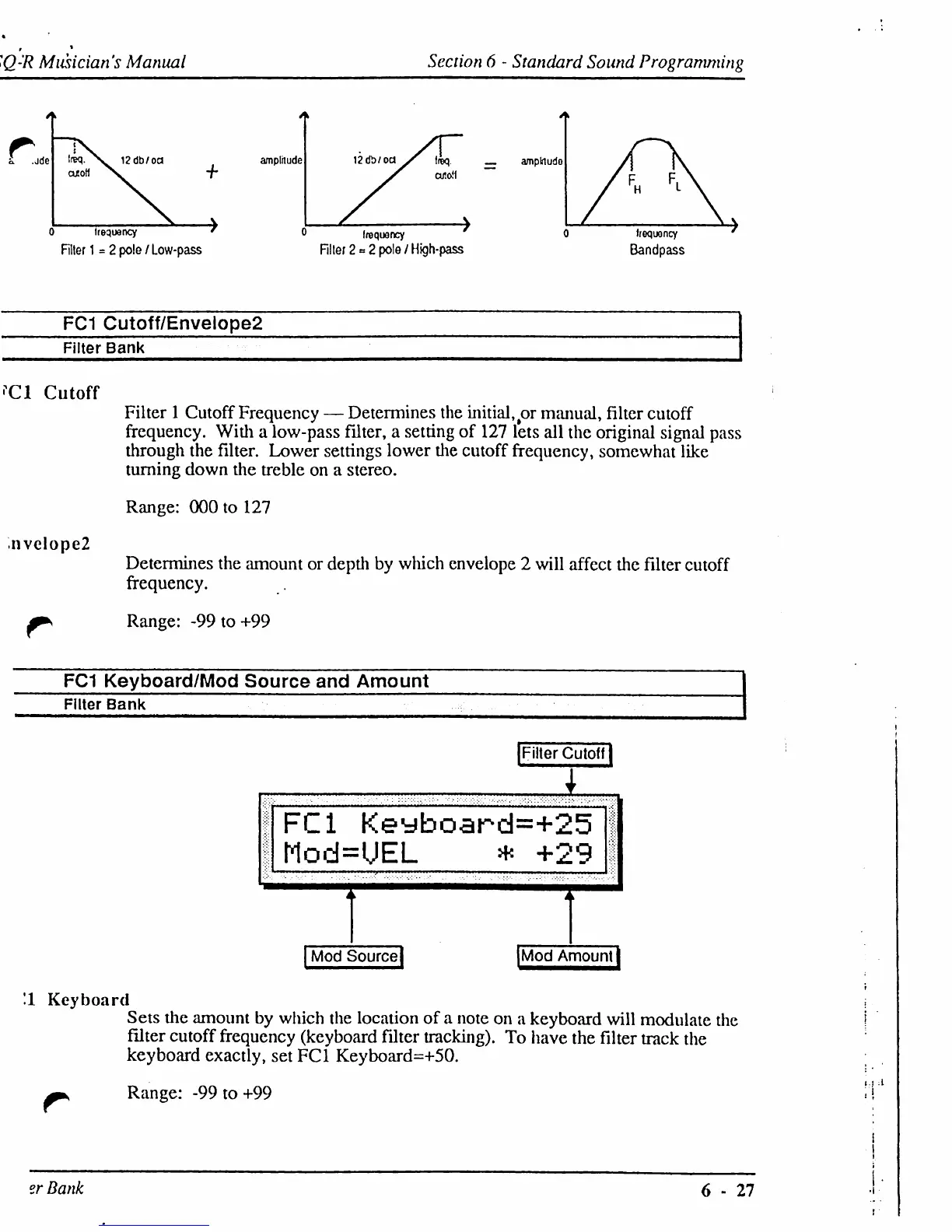

Filter 1 Cutoff Frequency — Determines the initial,pr manual, filter cutoff
frequency. With a low-pass filter, a setting of 127 lets all the original signal pass
through the filter. Lower settings lower the cutoff frequency, somewhat like
turning down the treble on a stereo.
Range: 000 to 127
Determines the amount or depth by which envelope 2 will affect the filter cutoff
frequency.
Range: -99 to+99
FC1 Keyboard/Mod Source and Amount
Filter Bank
Filter Cutoff |
FC1 Keyboard=+25
Mod=UEL * +29
Mod Source] Mod Amount)
!1 Keyboard
Sets the amount by which the location of a note on a keyboard will modulate the
filter cutoff frequency (keyboard filter tracking). To have the filter track the
keyboard exactly, set FC1 Keyboard=+50.
Range: -99 to+99
