ENSONIQ SQ-R

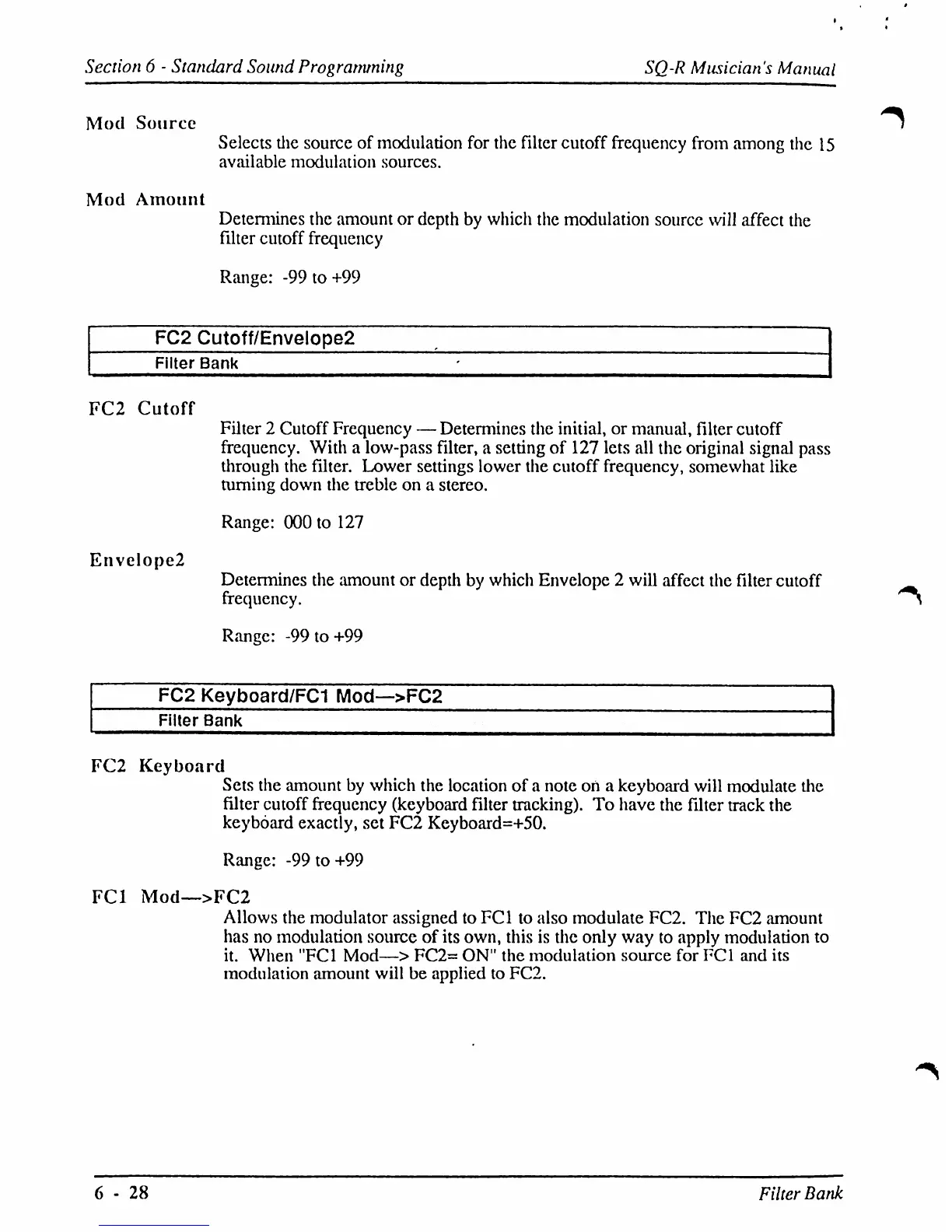

Section 6 - Standard Sound Programming
SQ-R Musician's Manual
Mod Source
Mod Amount
Selects tlie source of modulation for the filter cutoff frequency from among the 15
available modulation sources.
Determines the amount or depth by which the modulation source will affect tlie
filter cutoff frequency
Range: -99 to+99
FC2 Cutoff/Envelope2
Filter Bank
FC2 Cutoff
Envelope2
Filter 2 Cutoff Frequency —Determines the initial, or manual, filter cutoff
frequency. With a low-pass filter, a setting of 127 lets all the original signal pass
through the filter. Lower settings lower the cutoff frequency, somewhat like
turning down the treble on a stereo.
Range: 000 to 127
Determines the amount or depth by which Envelope 2 will affect tlie filter cutoff
frequency.
Range: -99 to+99
FC2 Keyboard/FC1 Mod—>FC2
Filter Bank
FC2 Keyboard
Sets the amount by which the location of a note on a keyboard will modulate the
filter cutoff frequency (keyboard filter tracking). To have the filter track the
keyboard exactly, set FC2 Keyboard=+50.
Range: -99 to+99
FC1 Mod—>FC2
Allows the modulator assigned to FC1 to also modulate FC2. The FC2 amount
has no modulation source of its own, this is tlie only way to apply modulation to
it. When "FC1 Mod—> FC2= ON" the modulation source for FC1 and its
modulation amount will be applied to FC2.
6 - 28
Filter Bank
