Section 4 - Effects
SQ-R Musician's Manual

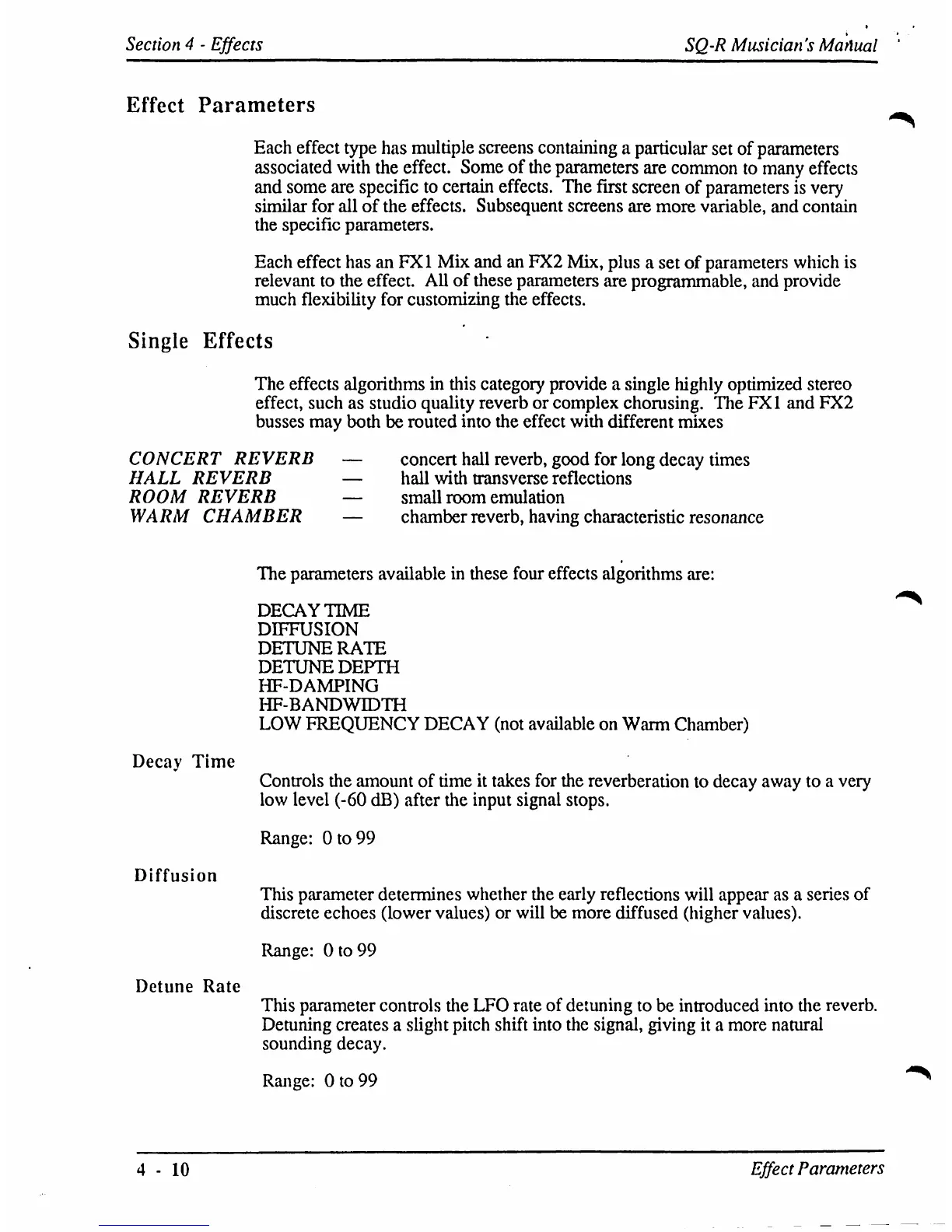

Effect Parameters
Each effect type has multiple screens containing a particular set of parameters
associated with the effect. Some of the parameters are common to many effects
and some are specific to certain effects. The first screen of parameters is very
similar for all of the effects. Subsequent screens are more variable, and contain
the specific parameters.
Each effect has an FX1 Mix and an FX2 Mix, plus a set of parameters which is
relevant to the effect. All of these parameters are programmable, and provide
much flexibility for customizing the effects.
Single Effects
The effects algorithms in this category provide a single highly optimized stereo
effect, such as studio quality reverb or complex chorusing. The FX1 and FX2
busses may both be routed into the effect with different mixes
CONCERT REVERB
HALL REVERB
ROOM REVERB
WARM CHAMBER
concert hall reverb, good for long decay times
hall with transverse reflections
small room emulation
chamber reverb, having characteristic resonance
Decav Time
Diffusion
Detune Rate
The parameters available in these four effects algorithms are:
DECAY TIME
DIFFUSION
DETUNE RATE
DETUNE DEPTH
HF-DAMPING
HF-BANDWIDTH
LOW FREQUENCY DECAY (not available on Warm Chamber)
Controls the amount of time it takes for the reverberation to decay away to a very
low level (-60 dB) after the input signal stops.
Range: 0to99
This parameter determines whether the early reflections will appear as a series of
discrete echoes (lower values) or will be more diffused (higher values).
Range: 0to99
This parameter controls the LFO rate of detuning to be introduced into the reverb.
Detuning creates a slight pitch shift into the signal, giving it a more natural
sounding decay.
Range: 0to99
4 - 10
Effect Parameters
