3.4. MANUAL TRIP/LOCKING DEVICE
During control circuit faults or line repair, users can locally trip or lock the Recloser with the
manual Trip/Locking device positioned on the front side of main tank. It can be manually operated
by COS hot stick. If Trip/Locking device lever is in lock position, the Recloser can't be operated by
local/remote control due to actuator power-off.
In this lock position, the user should push the manual Trip/Locking device up to the trip position to
release the locking status of the recloser and then the recloser can be operated by local or remote
control.
The recloser can be opened manually by using a hot stick to pull down the manual trip handle and
the recloser with further pulling down can be locked.
Manual trip &
Locking device
Hot stick
TRIP
LOCK

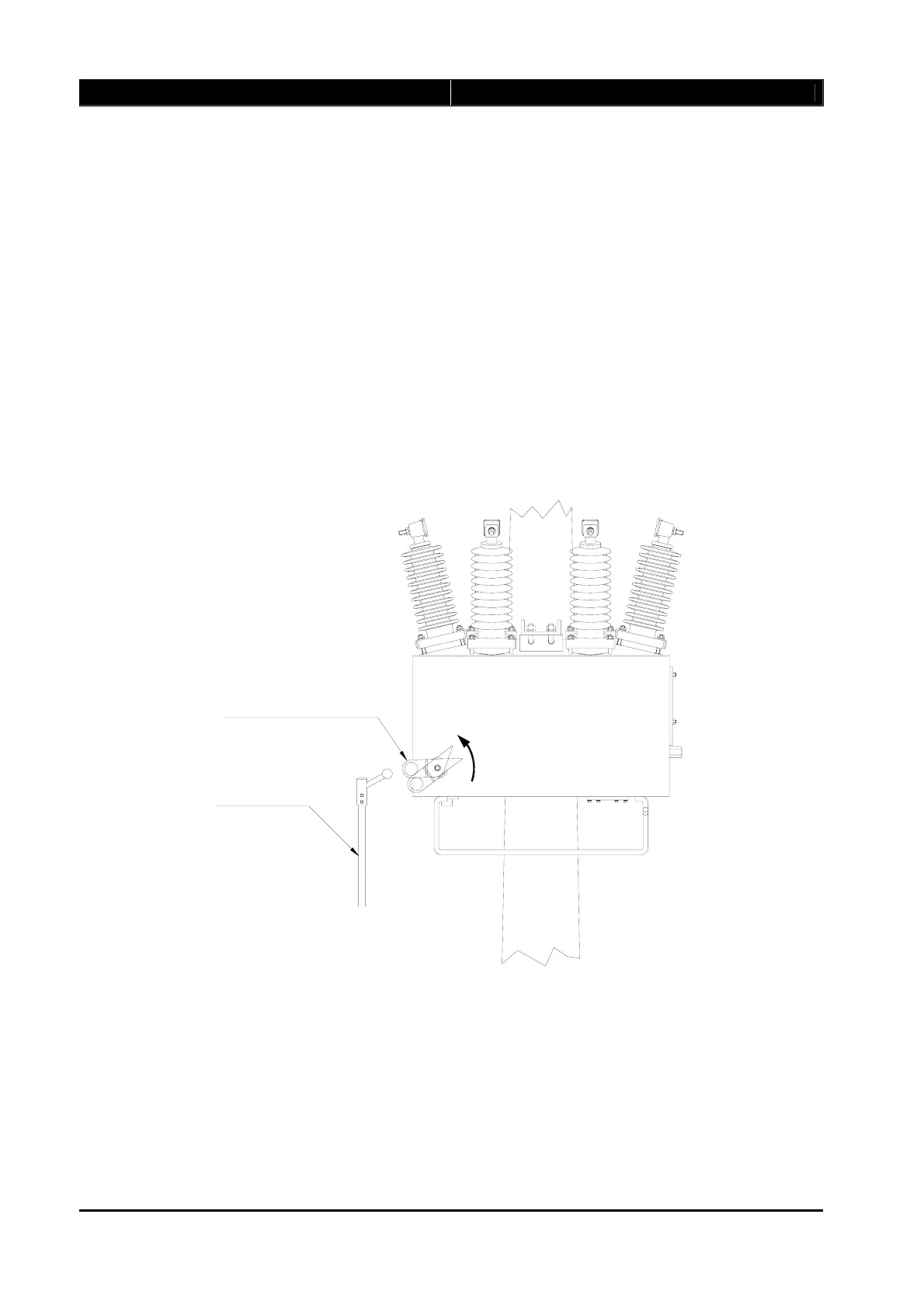

Figure 3-3. Manual Trip/Locking device of the recloser
