3.10. GAS FILLING VALVE
This valve is on the side of the recloser tank and “CARE” must be paid, not to be opened with
protection cap for preventing the gas leakage on the filling value.

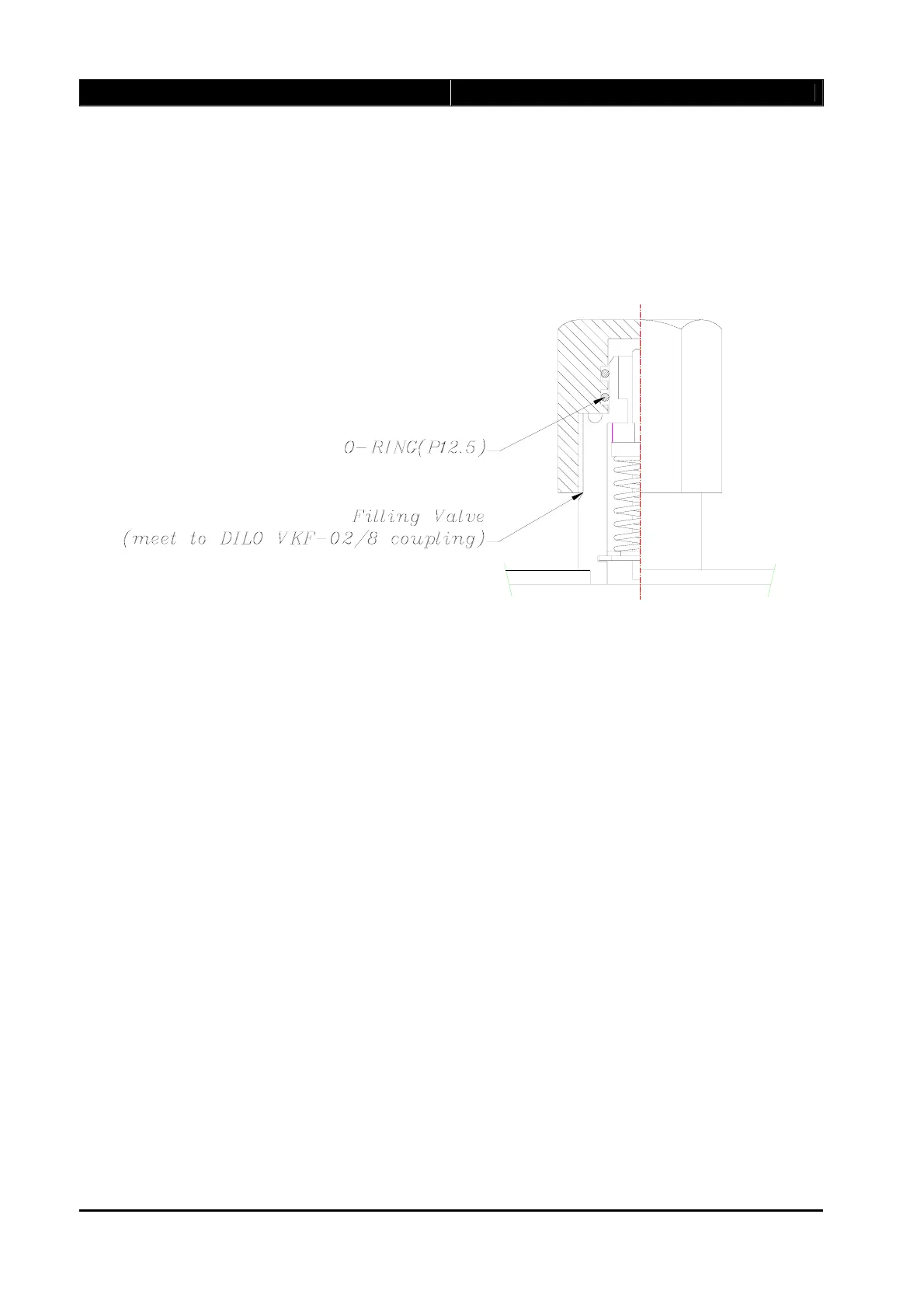

SF6 gas filling valve detail is shown in Figure 3-8.
Figure 3-8. Gas Filling Valve
3.11. ACCESSORIES
1) ON/OFF indication is located on the bottom inside of the main tank to be seen transparently
from the underneath of the tank.
2) Operating counter is provided in the control cubicle and if fitted, available at the bottom of the
main tank.
3) SF6 gas pressure sensor is available, if required as option.
4) Pressure rupture device is mounted on the side of recloser tank for protection of overpressure
due to overheating of internal arc.
