5.3.1-2. Substation mounting frame
If required, substation mounting frame can be supplied together with the recloser.
Please assemble the mounting frame and adjust the height of mounting the recloser.
Fasten tightly the recloser to the mounting frame with enclosed M16 bolts and nuts.
2600-2900 Adjustable
H.V Terminal
M16 Anchor
bolts
Anchor bolts dimension

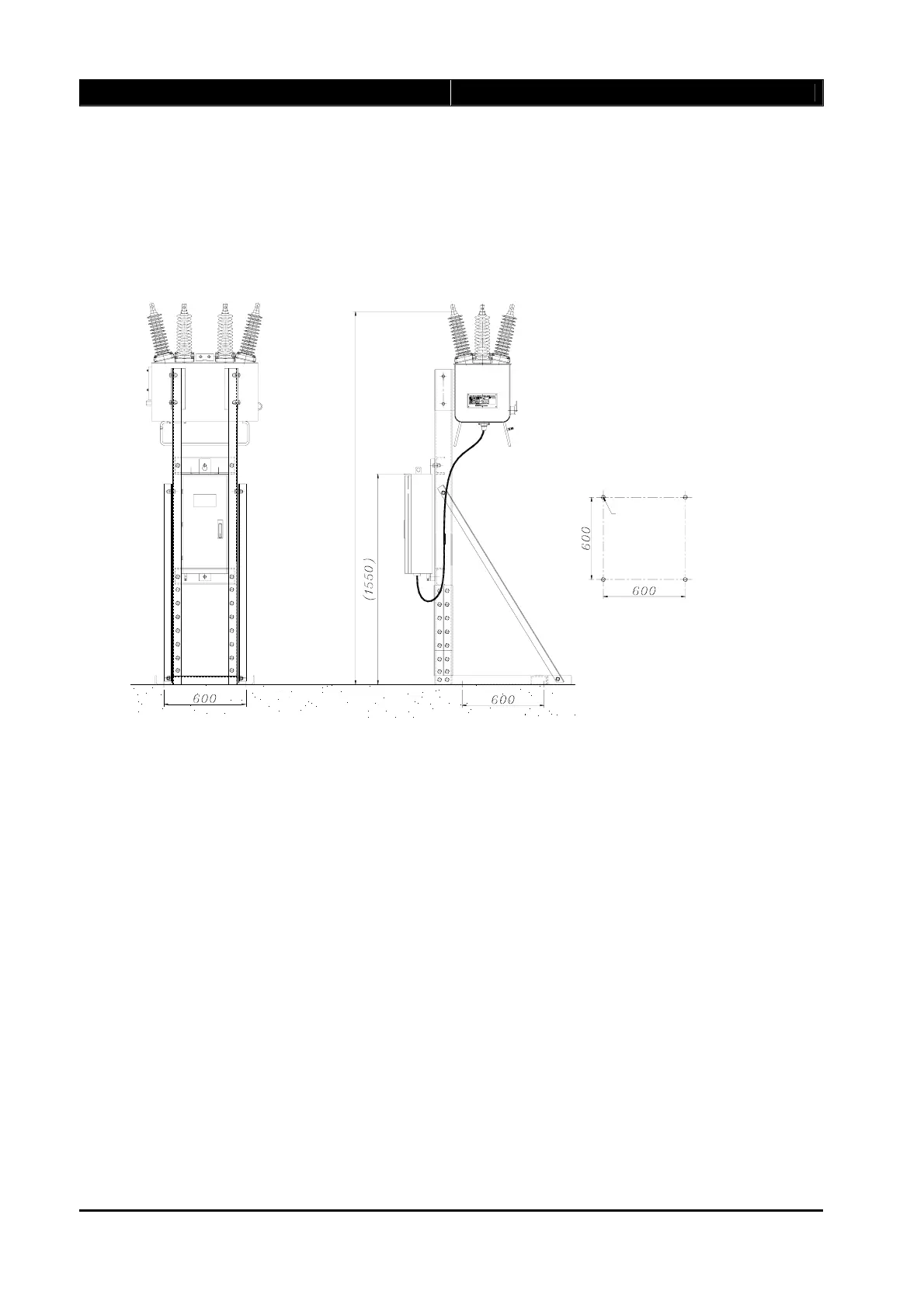

Figure 5-3. Substation mounting frame
