EVR AUTOMATIC RECLOSER http://www.entecene.co.kr
27
ENHANCED TECHNOLOGY
1000 max.
Hanger Band
Cable Cleats
Control Cable
Control Cubicle
Earth Cable
600
Pole Mounting Bracket
Manual trip &
locking device

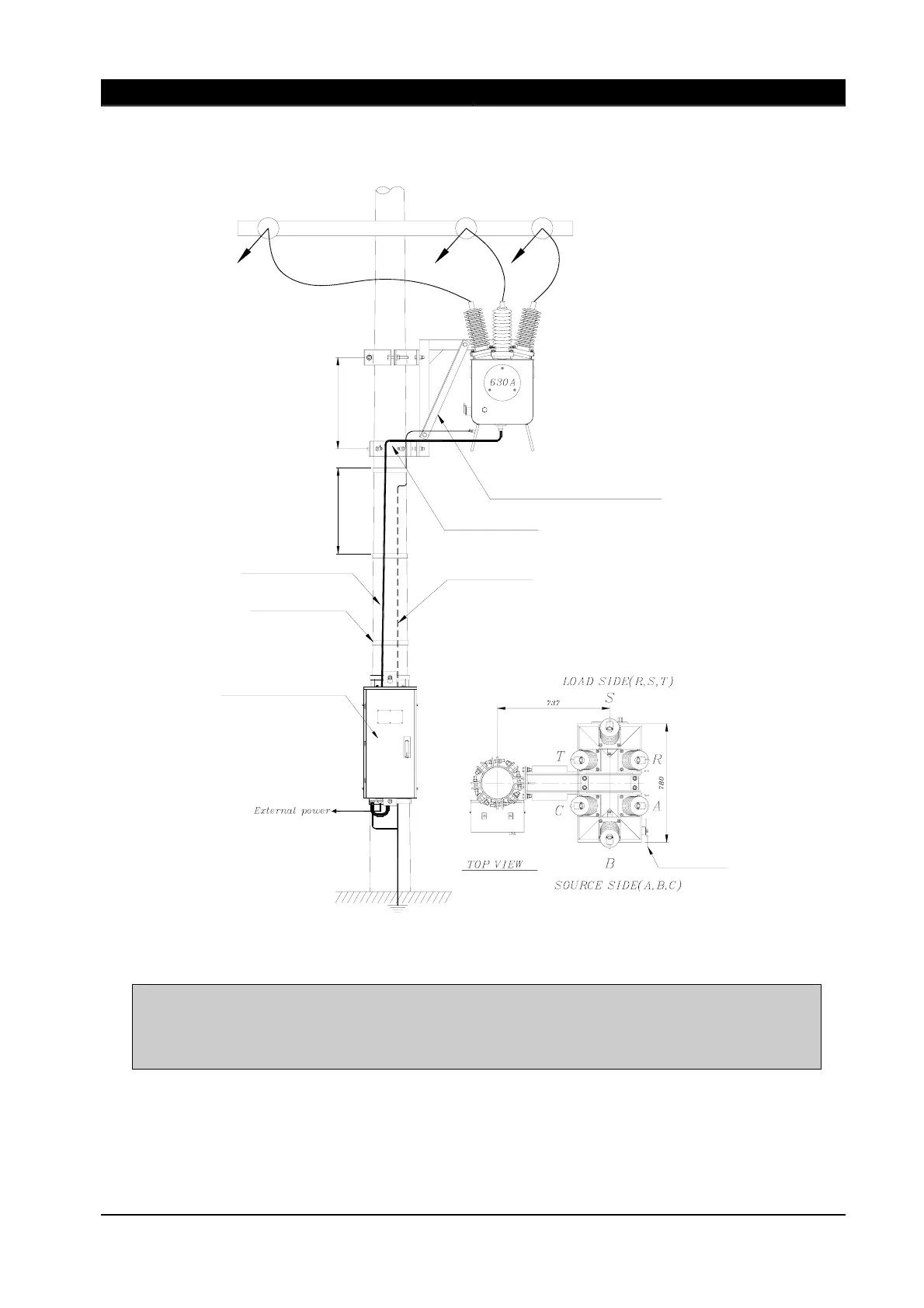

Figure 5-2. Pole Mounting Detail
CAUTION: In Installation of recloser, Source Side of user system and recloser Source Side shall
be matched in order to have a precise metering.
A, B, C are indicated for Source Side in Recloser and R, S, T are indicated in Load Side
