Redundant Power Supply Specifications
A-4 Specifications
STK-RPS-150PS Specifications
Table A-5 provides the specifications for the STK-RPS-150PS.
STK-RPS-150PS Redundant Power Supply Connector
For pin location and function, refer to Figure A-1 and Table A-6, respectively.

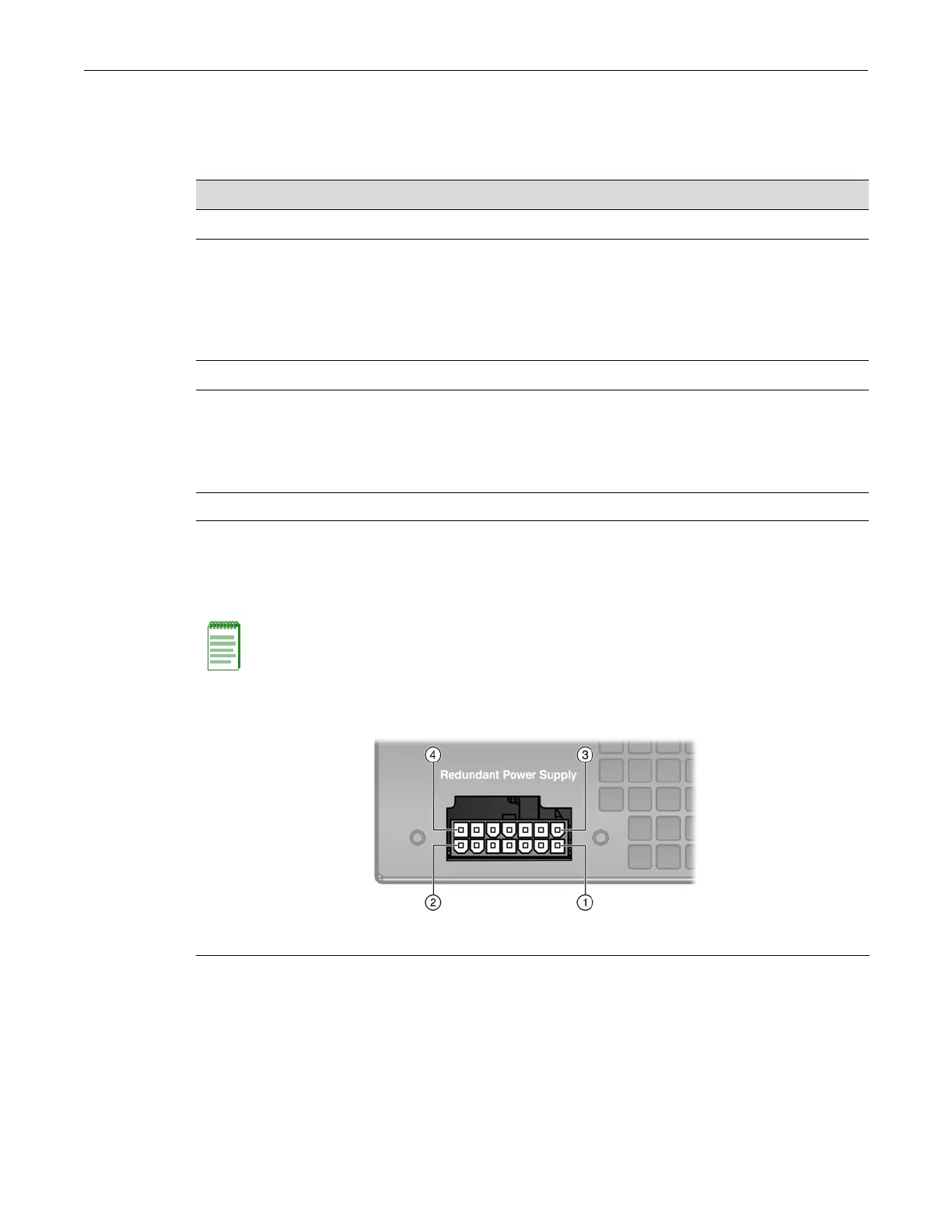

Figure A-1 STK-RPS-150PS Power Supply Connector Pin Locations
Table A-5 STK-RPS-150PS
Specifications
Item Specification
Electrical
AC Input Frequency Range
AC Input Voltage Range
Output Voltage
Output Current
Maximum Output Power
47–63 Hz
85–264 Vac
12 Vdc
1.0 A min., 8.5 A or 13.0 A max.
102 W or 156 W continuous
Physical
Dimensions 19.6 H x 5.2 W x 25.7 D (cm)
7.7 H x 2.04 W x 10.1 D (in.)
Net Weight (Unit Only)
Gross Weight (Packaged Unit)
1.75 kg (3.85 lb)
3.20 kg (7.04 lb)
MTBF 300,000 Hours
Note: The following information is for troubleshooting purposes only. For proper operation, do not
use any other cable except the RPS cable supplied with the STK-RPS-150PS. This cable is
specially designed for this application and meets all necessary regulatory and safety standards.
The use of non-approved cables will void your warranty.
1 Pin 1 2 Pin 7 3 Pin 8 4 Pin 14
