5
IP1851EN - 2013-05-06
The manufacturer Entrematic Group AB, with headquarters in Lodjursgatan 10, SE-261 44 Landskrona, Sweden,
declares that the EL31R type control panel complies with the conditions of the following EC directives:
EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
R&TTE Directive 1999/5/EC
Landskrona, 29-01-2013 Marco Pietro Zini
(President & CEO)
2. EC Declaration of Conformity
Marco P
ietro Zini
(President & CEO)

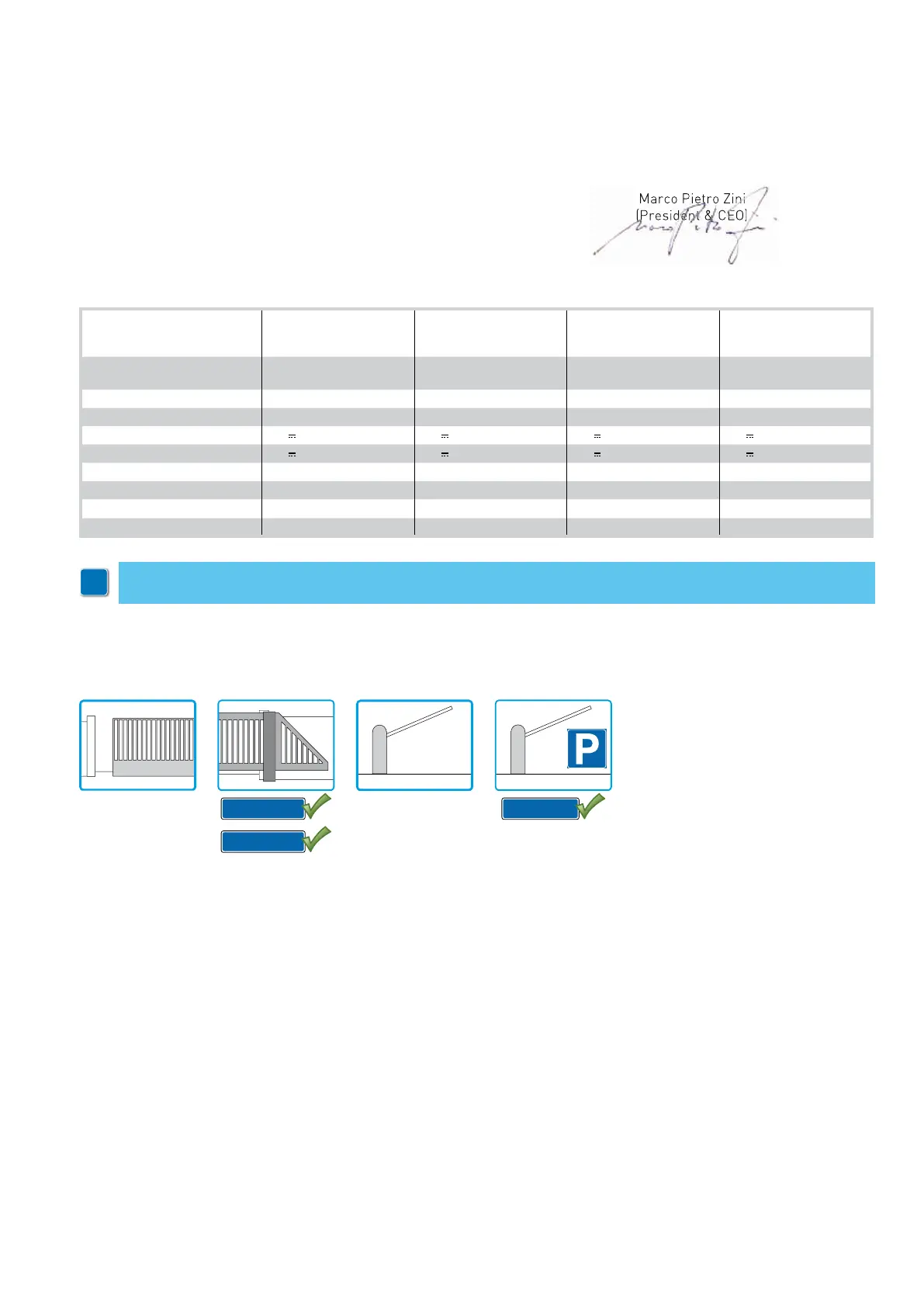

3. Technical specifications
CROSS3E
ALTA5EH
CROSS5EH
CROSS5EH1
ALTA7EH
CROSS7EH
CROSS7EH1
QIK7EH
QIK7YEH
Storage module 3M1CR3
3M1CR5
3M1CR5C5
3M1CR7
3M1CR7C5
3M1QK
3M1QKC7
Power supply 230 V~ 50/60 Hz 230 V~ 50/60 Hz 230 V~ 50/60 Hz 230 V~ 50/60 Hz
F1 fuse F1.6A F1.6A F2A F1.6A
Motor output 24 V
8 A 24 V 9.5 A 24 V 14 A 24 V 7 A
Accessories power supply 24 V
0.3 A 24 V 0.3 A 24 V 0.3 A 24 V 0.3 A
Temperature min -20° C max +55° C min -20° C max +55° C min -20° C max +55° C min -20° C max +55° C
Degree of protection IP24D IP24D IP24D IP24D
Radio frequency 433.92 MHz 433.92 MHz 433.92 MHz 433.92 MHz
Storable transmitters 100 (200 - BIXMR2) 100 (200 - BIXMR2) 100 (200 - BIXMR2) 100 (200 - BIXMR2)
i
3.1 Applications
N.B.: The given operating and performance features can only be guaranteed with the use of DITEC accessories and safety
devices.
3M1CR5C5
3M1QKC7
3M1CR7C5
