10 Printer Installation

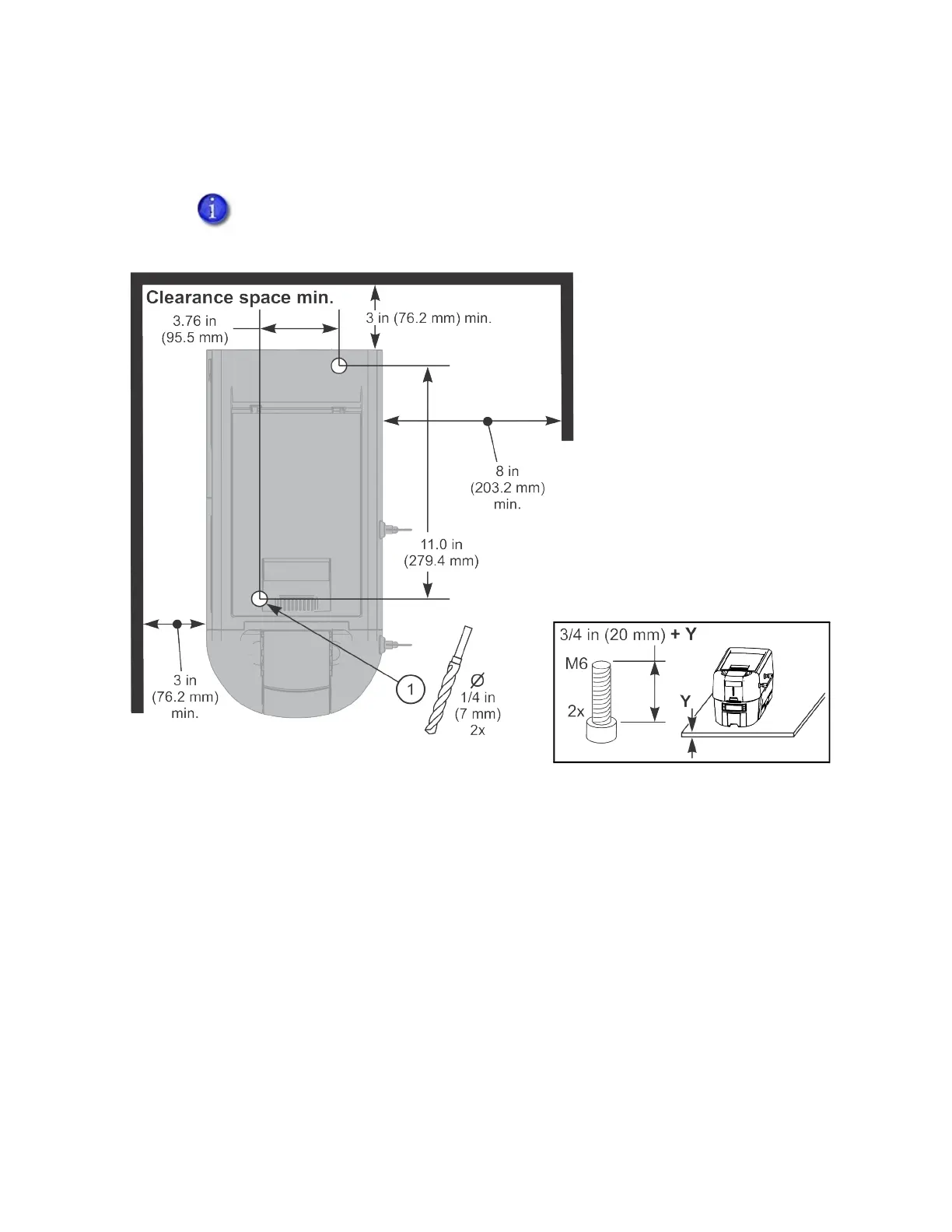

1. Drill two holes in the mounting surface following the dimensions and requirements shown in
the following figure.
A paper template (part no. 528119-001) that you can place on the mounting
surface to help identify the hole locations also is available.
