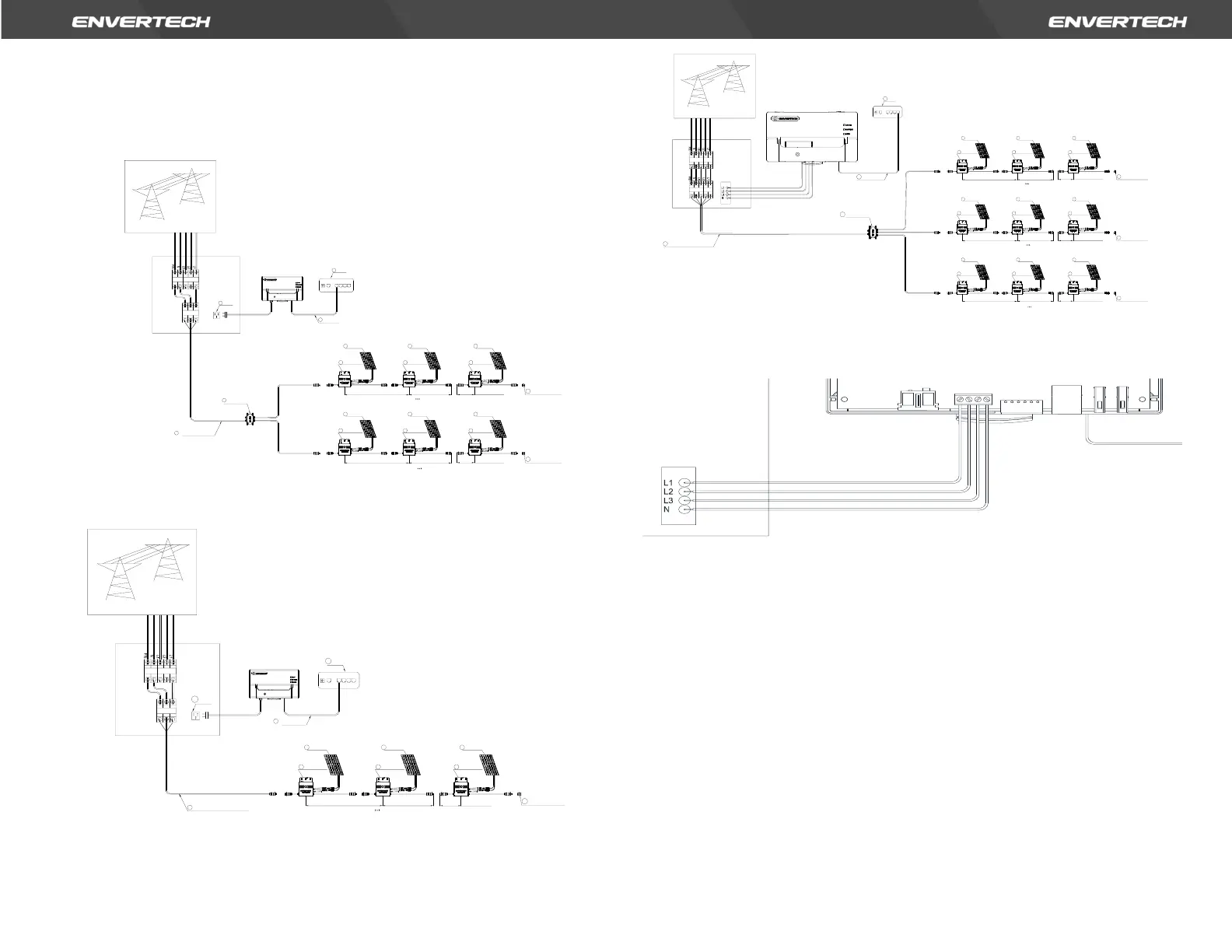

8. System Diagram
1. Single phase
2. Three phaes
Unscrew the front cover with the complimentary hex screwdriver, then
plug wires on each phase into the corresponding connector of EVB300.
4
Junction Box
5
Extention cable 4mm2
Distribution
control box
Grid
8
socket
7
Router
6
RJ45 Cable
3
Cable End Cap
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
length 1150 mm length 905 mm
3
Cable End Cap
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
length 1150 mm length 905 mm
Microinverter(n=13)
Microinverter(n=13)
length 245 mm
length 245 mm
Distribution
control box
Grid
7
Extention cable 4mm2
5
Router
4 RJ45 Cable
6
socket
3
Cable End Cap
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
length 1150 mm length 905 mm
Microinverter(n=13)
length 245 mm
Distribution
control box
Grid
6
Router
RJ45 Cable
5
4
Junction Box
7
Extention cable 4mm2
3
Cable End Cap
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
length 1150 mm length 905 mm
3
Cable End Cap
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
length 1150 mm length 905 mm
3
Cable End Cap
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
1
PV Module
2
Microinverter
length 1150 mm length 905 mm
Microinverter(n=13)
Microinverter(n=13)
Microinverter(n=13)
length 245 mm
length 245 mm
length 245 mm
5
6
7
4
2
1
1
2
1
1
2
1
1
Microinverter(n≤10)
length 1839 mm
length 2100 mm
length 261 mm
2
1
1
2
1
1
2
1
1
Microinverter(n≤10)
length 1839 mm
length 2100 mm
length 261 mm
2
1
1
2
1
1
2
1
1
Microinverter(n≤10)
length 1839 mm
length 2100 mm
length 261 mm
3
3
3
