Combustible FaCing Kit (optional):
Step 4: Make sure all your hand bend anges are bent prior to assembly and that you have the
correct length deector before instalation to the unit.
Step 5: If installing a C44 or C60, attach your extension piece to the C34 main panel.
Step 6: Attach your deector to your panel conguration as shown below.
Step 7: Remove the top cabinet T20 screws on the left and right side so that you can reuse them to
fasten the Combustible Facing Kit asembly to the unit.
Step 8: Use the provided self tapping screws to fasten the assembly via the remaining pilot holes.
Installation
QUALIFIED INSTALLERS ONLY

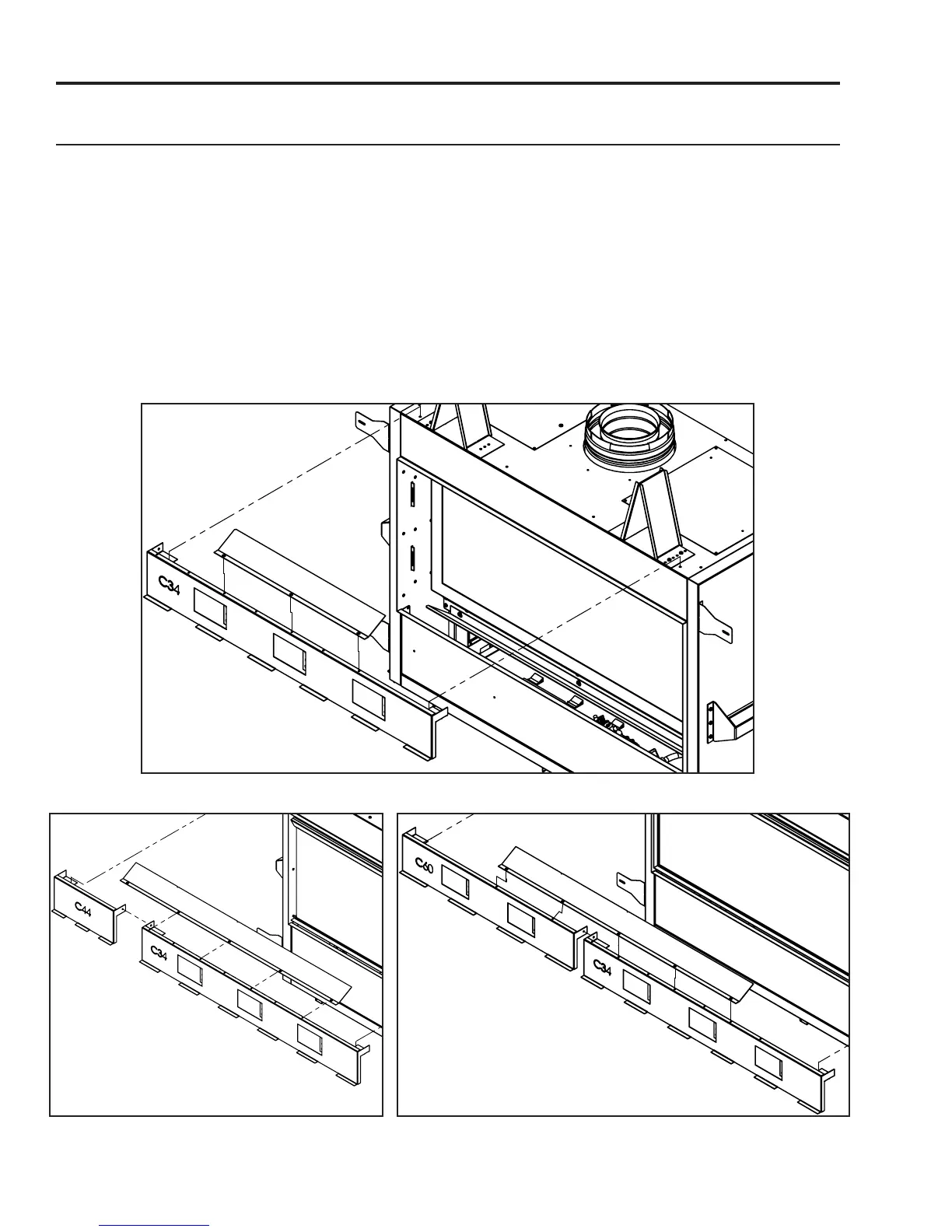

Figure 16. Combustible Facing Kit C34
Figure 17. Combustible Facing Kit C44 Left, C60 Right
