Combustible FaCing Kit (optional):

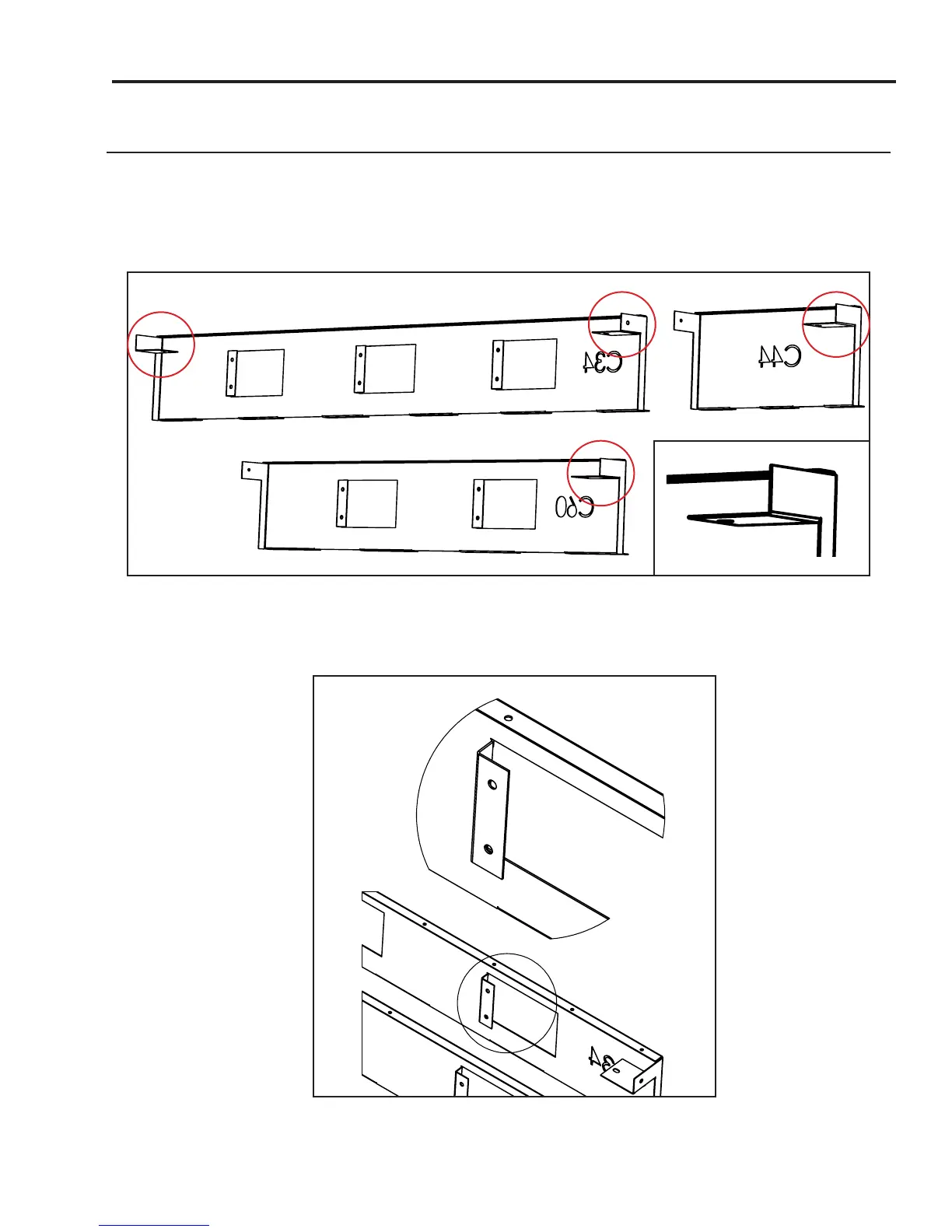

Step 2: All the Units use the C34 panel as a base. If installing a C44, use both the C34 and C44
panels. If installing a C60, use both the C34 and C60 panels. Once you have your required panels
locate the anges in the gure 14 below. Bend these anges inwards 90deg to match the gure 14
below.
Installation
QUALIFIED INSTALLERS ONLY
Step 4: All the middle anges must be bent 90deg inwards towards the unit as shown below.
Figure 15. Rear Panel hand bent anges
Figure 14. Rear Panel hand bent anges
Step 3: Verify that all the hand bends shown above are bend inwards 90deg as shown.
