Installation
Non-combustible
floor protection.
Existing floor
(combustible)
6"
(15 cm)
Rain cap
Flashing
24"
(61 cm)
2"
(5 cm)
Tee with
cleanout
Fresh air
intake
3" (7.5 cm)
Clearance
Support
bracket
Type "L"
vent

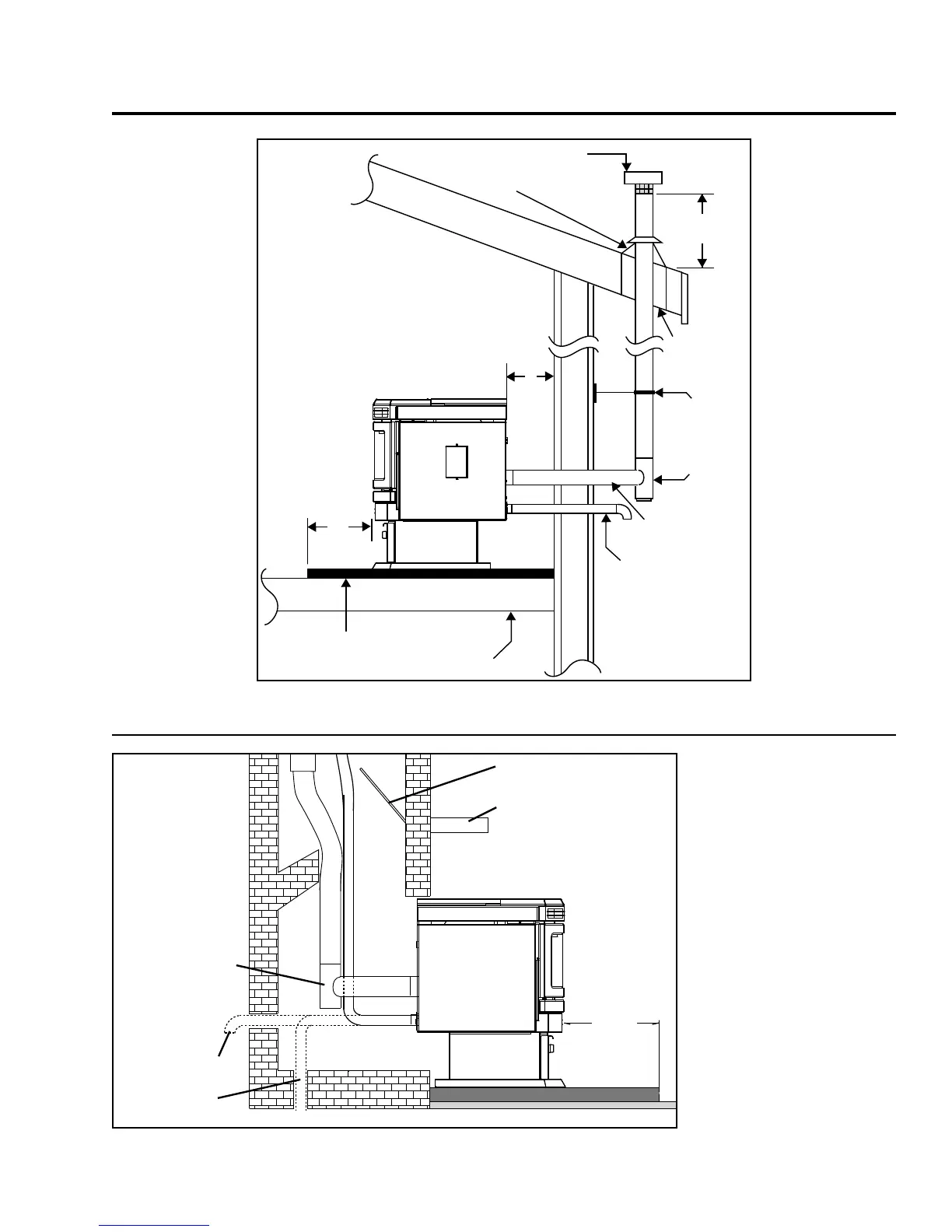

Figure 22: Outside Vertical Installation.
Refer to Figures 23 and 24.
1. Install the hearth pad.
2. Lock fireplace damper in
the open position.
3. Install a positive flue
connector at the fireplace
dampers.
4. Connect a tee or a 90°
elbow to the exhaust
pipe.
5. Install flexible stainless
steel liner or listed pellet
vent to the top of the
chimney.
HEARTH MOUNT INSTALLATION - FREESTANDING:
Figure 23: Freestanding hearth mount installation.
