Enviro Empress User Manual

Operating Instructions
control boarD functionS:
1. THERMOSTAT SWITCH: Used to set the unit’s controls to one of three mode settings; manual,
high/low, or auto/off.
ON/OFF
FEED RATE
TRIM
COMBUSTION
BLOWER TRIM
HEAT
LEVEL
AUTO/OFF
HIGH
/LOW
MANUAL
C-11825
1
2
3
4
5
ON/OFF
FEED RATE
TRIM
COMBUSTION
BLOWER TRIM
HEAT
LEVEL
AUTO/OFF
HIGH
/LOW
MANUAL
C-11825
1
2
3
4
5
1
2
3
4
5
6
2. FEED RATE TRIM BUTTON: Used to change the feed rate trims
in ¼ second increments for all feed settings. When this button is
pressed, all the light will light up on the Heat Output Indicator except
for the one that shows the current setting; the default setting is the
number 4 light. To adjust the setting hold the Feed Rate Trim button
down and press the Heat Level up or down buttons to adjust the
setting.
3. COMBUSTION BLOWER TRIM BUTTON: Used to change the
Combustion Blower trims in 5 volt increments for all feed settings
until it reaches line voltage. When this button is pressed, all the light
will light up on the Heat Output Indicator except for the one that
shows the current setting; the default setting is the number 2 light.
To adjust the setting hold the Combustion Blower Trim button down
and press the Heat Level up or down buttons to adjust the setting.
4. ON/OFF BUTTON: Used to turn the unit ON and OFF.
5. HEAT LEVEL ADJUSTMENT BUTTONS: When pressed, will
change the heat level setting of the unit up or down.
6. HEAT OUTPUT INDICATOR: Shows the present heat output
setting.

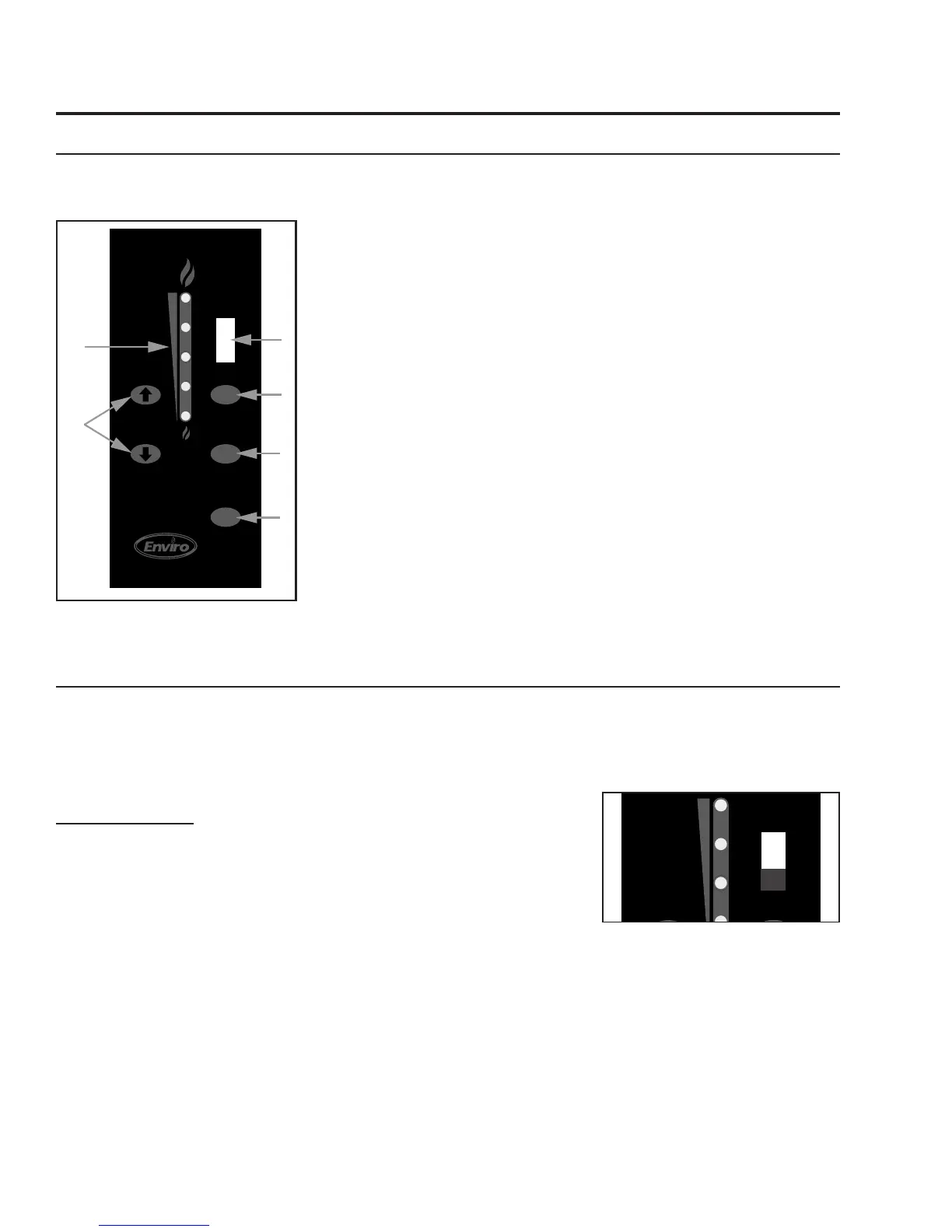

Figure 3: Circuit Board Control
Panel Decal.
oPerating your Pellet Stove:
PRE-BURN INSTRUCTIONS: The burn pot liner holes must be clear and the liner installed properly
against the ignitor tube for proper operation. Check the hopper for enough pellets to start the unit.
DO NOT OPERATE THE UNIT WITH THE DOOR OR ASH PAN OPEN.
Note: The thermostat mode can be changed during normal operation.
MANUAL MODE:
All control of circuit board function is adjusted at the circuit board.
To START: Press the ON / OFF button. The Heat Level Indicator will
show the Heat Level that the stove will run at after start-up and can
be adjusted but the change will not take affect until the start -up has
finished.
If this is the first time the unit has been started or the unit has run out
of fuel, the auger will need to be primed. This can be done by restarting the unit five (5) minutes into its
start-up or by putting a small hand full of pellets into the burnpot.
To OPERATE: When a fire has been established after approximately 10 - 15 minutes the unit will
switch from start up mode to run at the corresponding Heat Level setting. The convection blower (room
air blower) will turn on. The speed of this blower is controlled by the setting of the heat level output
indicator.
8
Figure 4: Thermostat Switch in
MANUAL position.
ON/OFF
FEED RATE
TRIM
COMBUSTION
BLOWER TRIM
HEAT
LEVEL
AUTO/OFF
HIGH
/LOW
MANUAL
C-11825
1
2
3
4
5
ON/OFF
FEED RATE
TRIM
COMBUSTION
BLOWER TRIM
HEAT
LEVEL
AUTO/OFF
HIGH
/LOW
MANUAL
C-11825
1
2
3
4
5
3
4
5
6
8
9
