This unit may be installed in an alcove. Maintain the
clearances to combustibles shown in Figure 4.
Install vent at clearances specified by the vent
manufacturer.
Minimum Width
48" (1219mm)
Minimum Height
48" (1219mm)
Maximum Depth
36" (914mm)
Installation
ALCOVE CLEARANCES:

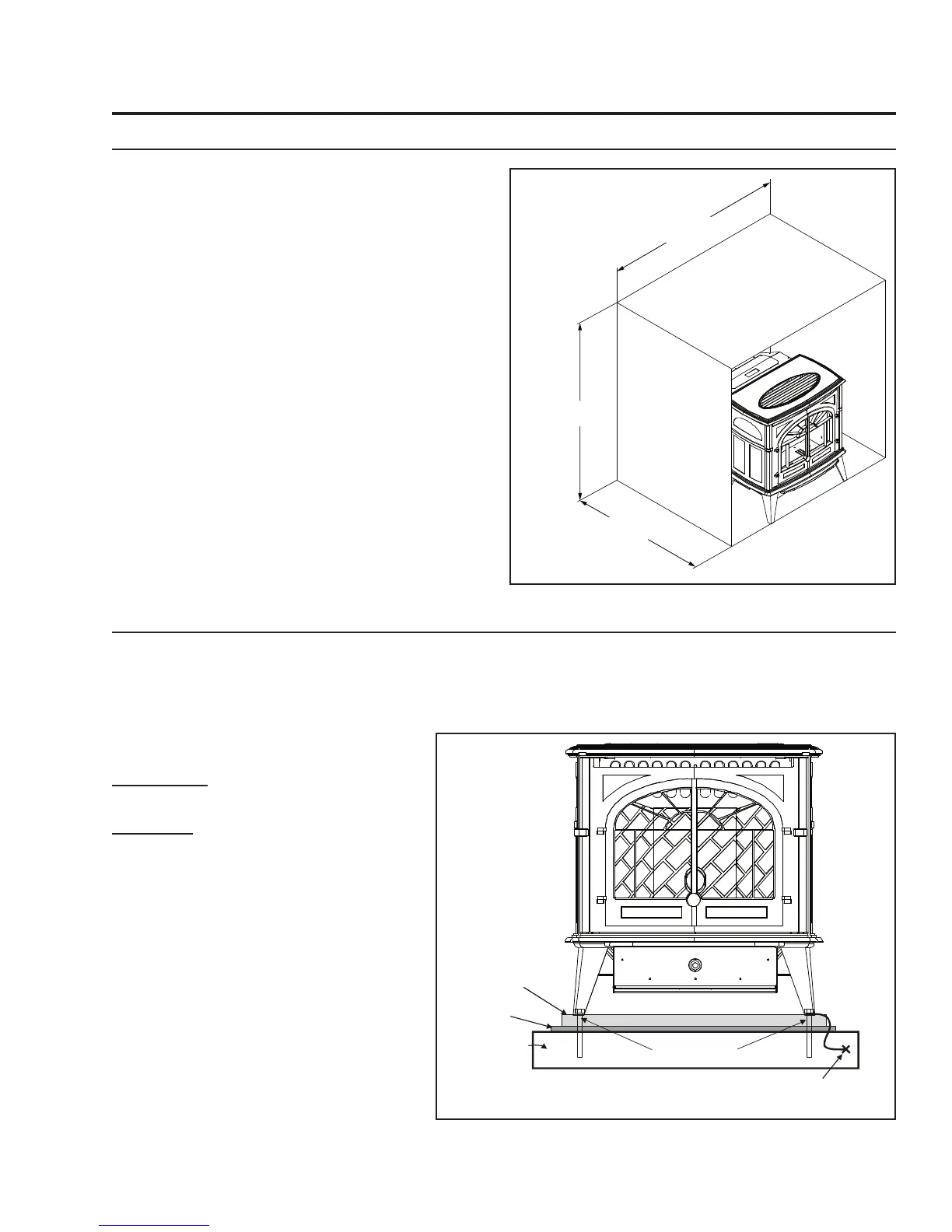

Figure 4: Alcove Clearances.
MOBILE HOME INSTALLATION:
● Secure the heater to the floor using the holes in the leg of the appliance (normally used for the leveling
legs).
● Ensure the unit is electrically grounded to the chassis of your home (permanently).
Ground wire directly
connected to metal chassis.
Hearth Pad
Flooring
Steel Frame
1
/
4" Lag bolts
securely fastened
Figure 5: Mobile Home Install Mounting.
WARNING: Do not install in a room
people sleep in.
CAUTION
: The structural integrity
of the manufactured home floor,
wall and ceiling/roof must be
maintained
• Outside fresh air is mandatory. Secure
outside air connections directly to
fresh air intake pipe and secure with
three (3) screws evenly spaced.
