Envirovent PIV User Manual

PIV & MIV
®
Loft Mounted Unit
INSTALLATION INSTRUCTIONS

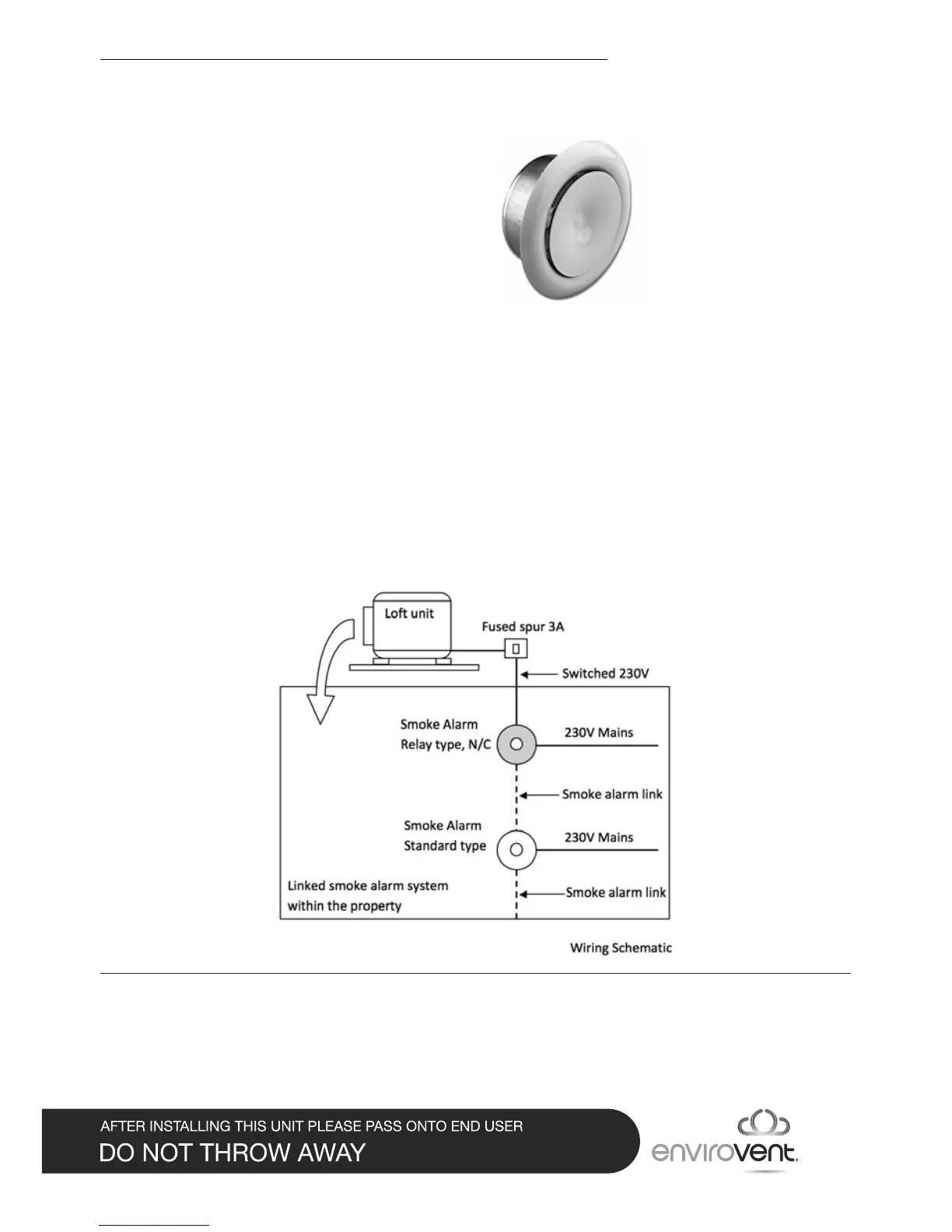

SMOKE ALARM
For installations in 3 storey dwellings the loft unit
should be wired in such a way that it shuts down
completely when the smoke alarm system is
triggered. This can be done by linking the PIV unit
to relay type smoke alarm (N/C), see schematic.
When the relay is triggered by the alarm, power
to the PIV unit will be interrupted and the unit
will stop. When the alarm resets, power will be
resumed to the unit and the EnviroVent PIV will
resume working at its previous settings.
INSTALLATION CHECKS AND MAINTENANCE
The re system should be checked at installation
to ensure proper function. The diuser should
be periodically checked to ensure they have not
been activated and that they are still delivering air
into the property. In the case of a re, the system
should be thoroughly checked.
Ø125mm metal re diuser
Installations in 3 storey dwellings
PIV Loft Mounted Unit
FIRE INSTALLATION KIT
For installations in 3 storey dwellings, it is
necessary to t an EnviroVent PIV unit (EVL-W or
EVL-H-W) with a re kit, EnviroVent part number:
KIT-PIV-SMOKE. It is important to follow the
installation instructions that come with the kit.
MIV
®
Loft Mounted Unit
For installations in 3 storey dwellings, it is necessary to t an EnviroVent PIV unit (EVL-W or EVL-H-W) with
a re kit, EnviroVent part number: KIT-PIV-SMOKE.
08
