Envision G2770 User Manual

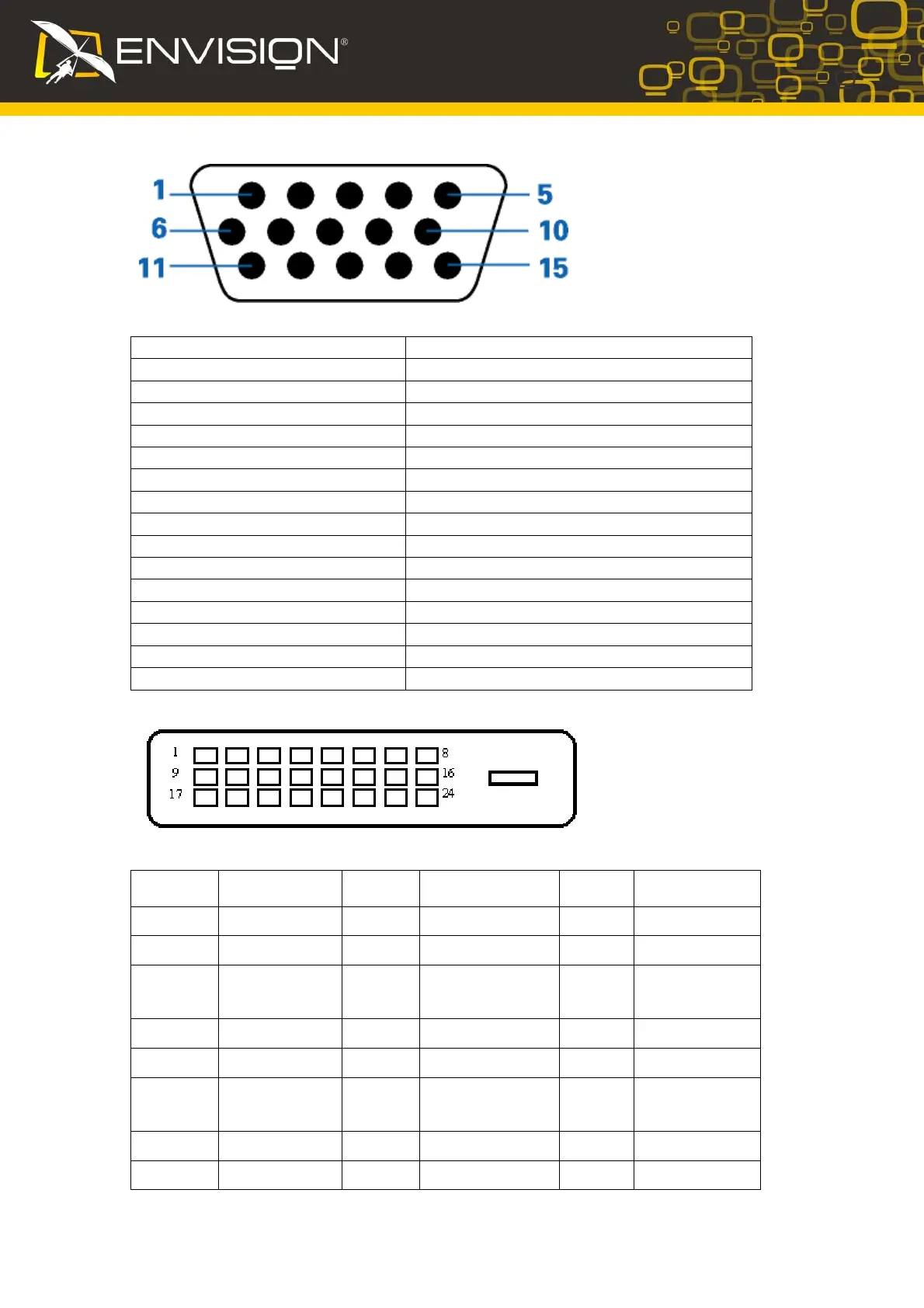

Pin Assignments
Pin Numbe
r
15-Pin Side of the Si
g
nal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4
Ground
5 Detect Cable
6 GND-R
7 GND-G
8 GND-B
9+5V
10 Ground
11
Ground
12 DDC-Serial data
13 H-s
y
nc
14 V-s
y
nc
15 DDC-Serial clock
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data 0-
2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+
3
TMDS Data 2/4
Shield
11
T
MDS Data 1/3
Shield
19
T
MDS Data 0/5
Shield
4 TMDS Data 4- 12 TMDS Data 3- 20 TMDS Data 5-
5 TMDS Data 4+ 13 TMDS Data 3+ 21 TMDS Data 5+
6 DDC Clock 14 +5V Power 22
TMDS Clock
Shield
7 DDC Data 15 Ground(for+5V) 23 TMDS Clock +
8 N.C. 16 Hot Plug Detect 24 TMDS Clock -
20
