4.5. ASSEMBLY & INSTALLATION

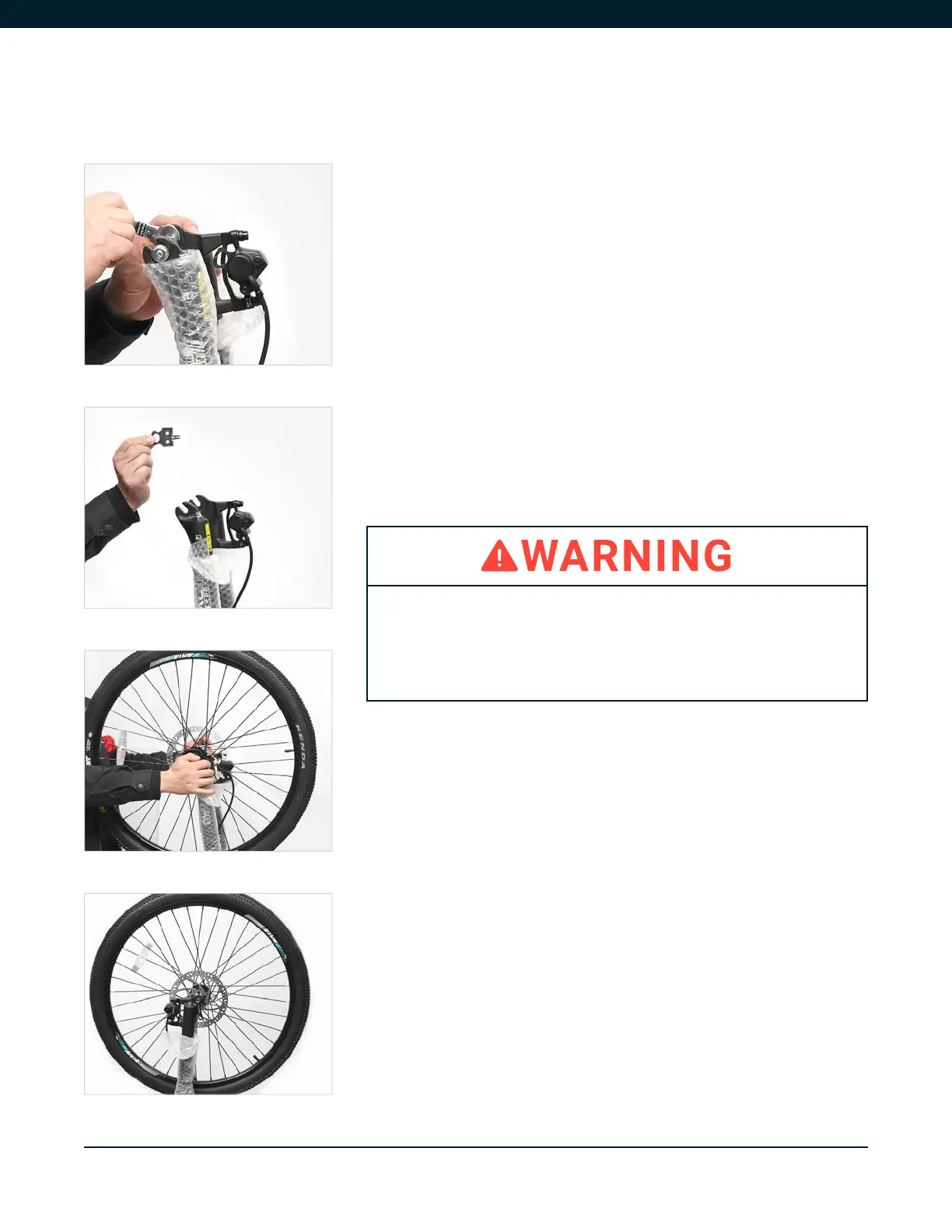

4.5.1. FRONT WHEEL MOUNTING
• Remove the stud provided between the fork Figure 4A
• Remove the pad spacer provided in the brake caliper
Figure 4B
• Mount the front wheel in the direction where the disk
brake lines up with the caliper
• Insert the quick release making sure there is a spring on
either side of the fork drop out. The narrow side of the
spring should face towards the wheel Figure 4C
• Tighten the quick release and lock it Figure 4D
Figure 4A
Figure 4B
Figure 4C
Figure 4D
Improper assembly of the bike may result in serious injury
or even death. Make sure you seek the help of a qualied
mechanic in case of any doubt.
