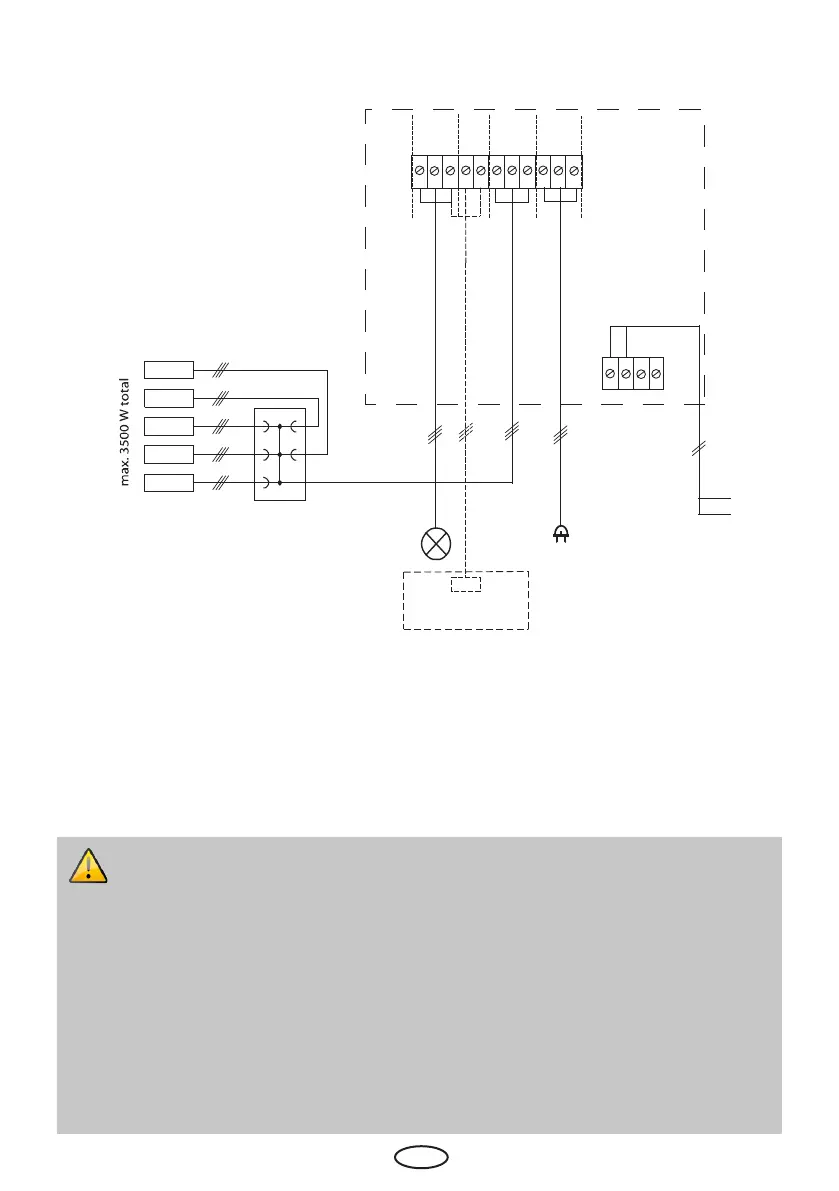

Connection diagram

S e ns o r

Verteilerblock

C onne c tion box

I R - E m it te r

Infratec Classic

2 3 0 V AC

PEPE

Licht

LSG

IR-

Strahler

Netz

bauseitige Lasterweiterung

Power rating extension

by customer

Attention!

Dear customer,

according to the valid regulations, the electrical connection of the heating equipment

and the control box has to be carried out through the appropriately qualied specialist

(electrician).

Please bear in mind that in case of a warranty claim, you are kindly requested to present a

proof that the installation has been carried out by an authorized person (e.g. invoice copy

from the electric shop or dealer).
