EPH Controls COMBIPACK4 - Specifications & Wiring

13
RF1A-OT Wireless Receiver CombiPack4

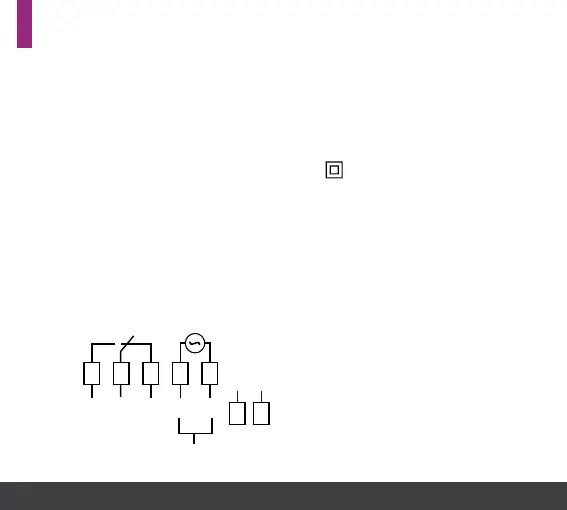

Internal wiring diagram for RF1A-OT
Specications & Wiring
Power supply: 200 - 240Vac 50-60Hz
Contact rating: 250 Vac 10(3)A
Ambient temperature: 0 … 45˚C
Automatic action: Type 1.C.Q
Appliance classes: Class II appliance
Pollution degree: Pollution degree2
IP Rating: IP20
Rated Impulse Voltage: Resistance to voltage surge 2500V
as per EN 60730
OFFON
321LN
L
MAINS SUPPLY
N
COM
O T
O T
* If mains voltage output is required,
terminals L & 2 must be electrically
linked.
Important: Do not connect Mains
Voltage to OpenTherm® terminals.
