16000 - X-Axis Replacement

X-Axis Assembly

Replacement

X-Axis Assembly Removal

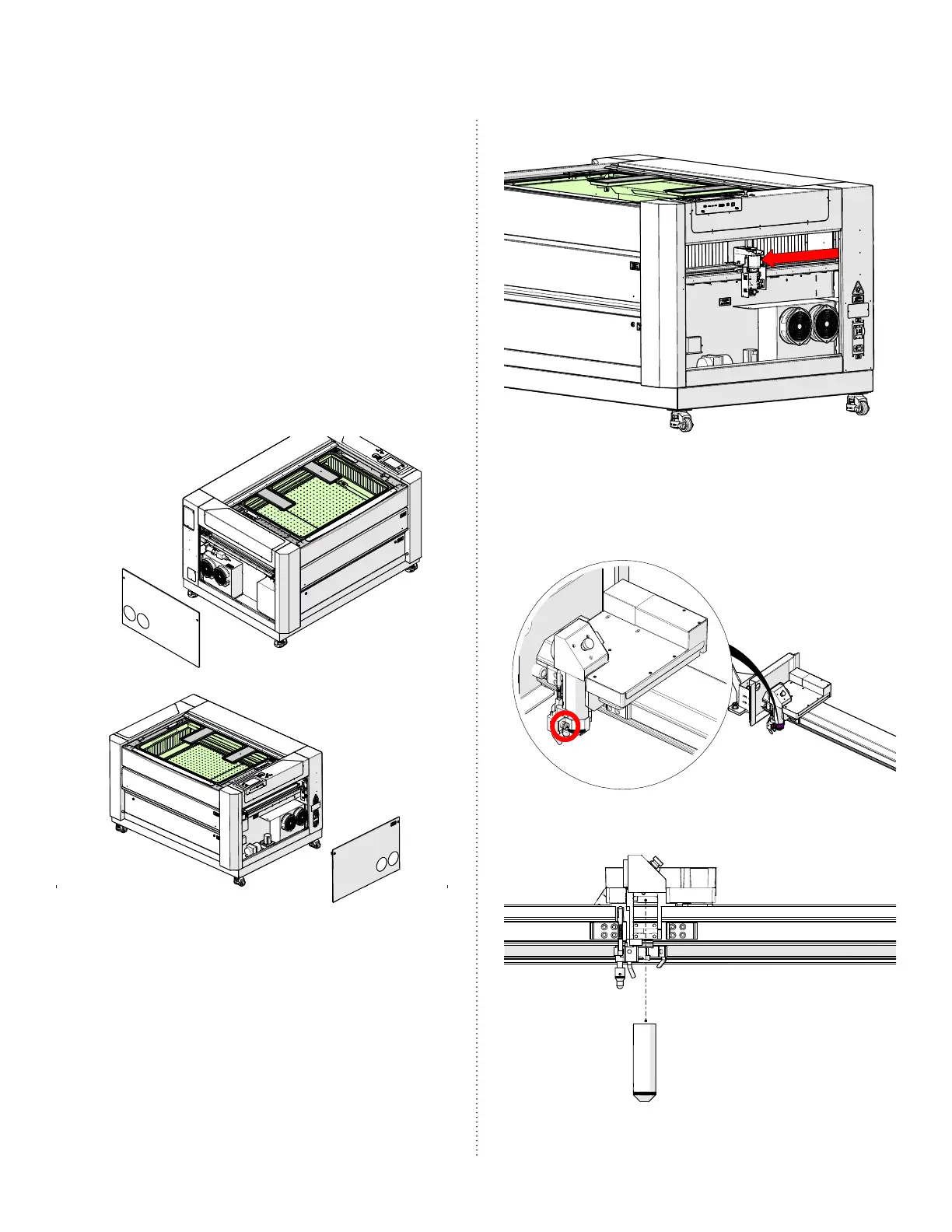

1. Turn o the engraver.

2. Disconnect engraver from power

source.

3. Remove the le and right panels of

the engraver by loosening the 5/32”

cam locks:

4. Manually move the x-axis assembly to

the middle of the engraver:

5. Loosen the Phillips screw on the lens

tube retaining collar. Make sure to

hold the lens tube to ensure that it

does not fall:

6. Remove the lens tube:
