PRO 32 & 48 X-AXIS ASSEMBLY
17
Before completing the table calibration
install the raster table.
Since the table will rise to depress the
autofocus plunger, use the Jog feature
to position the lens carriage in a position
which will prevent the autofocus plunger
and lens cone from coming into contact
with the le and or top ruler guides.

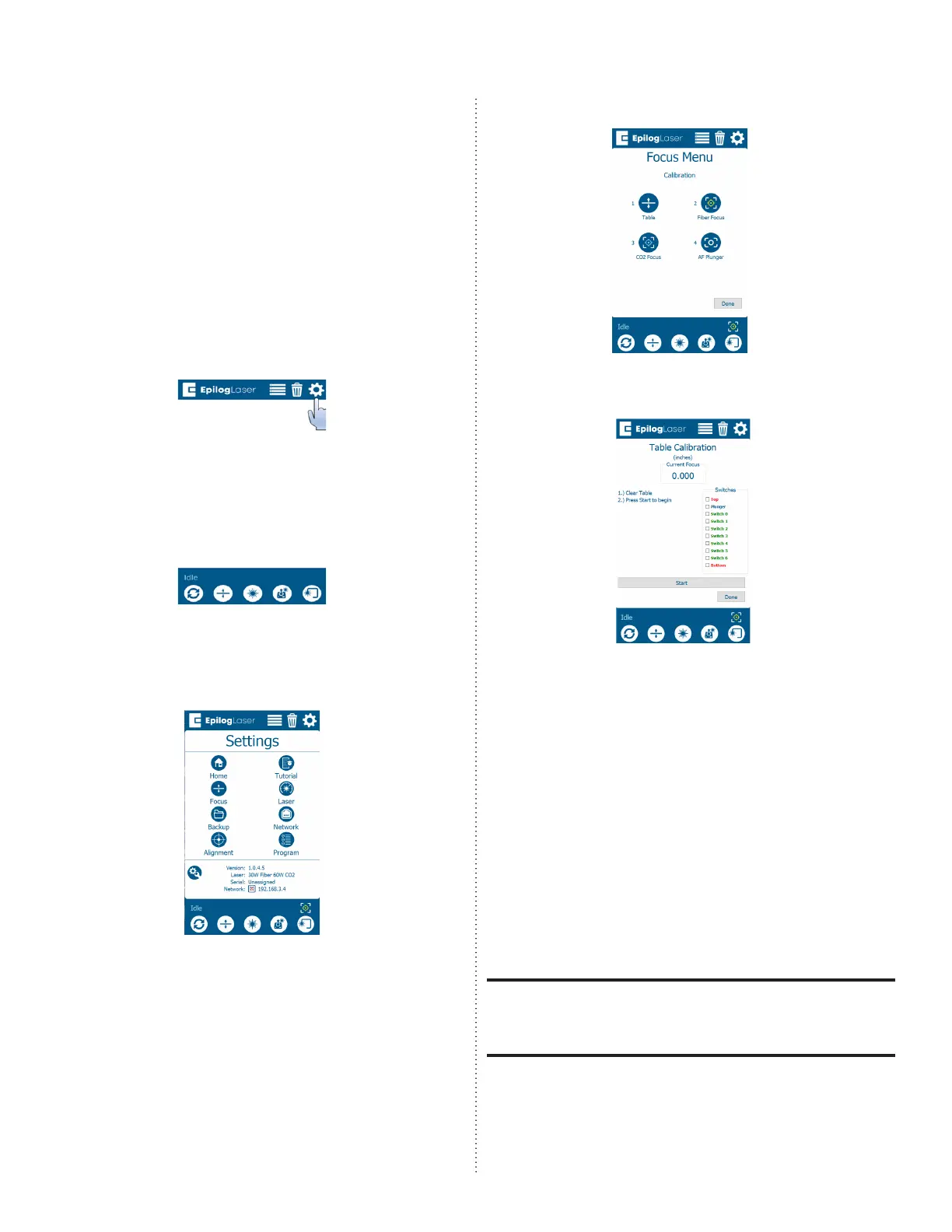

1. On the display, press the gear icon to
enter the Settings menu:
2. Once in the Settings menu, press
the Focus button to enter the Focus
Commands/Calibrations menu:
3. Press the Table button:
4. Press the Start button to start the table
calibration:
5. Allow the engraver to complete the
calibration. Once complete, a success
message should appear.
Move to the Fiber Focus Procedure.
Fiber Focus Calibration
The CO2 focus calibration establishes
the focal height of the laser and manual
focus gauge. You will run a small job while
adjusting the table height to find the
correct focal height.
A small piece of anodized aluminum (at
least 3” x 3” or 75mm x 75mm) is required to
complete this procedure.
