Adjusting the Table Level
Fusion and FiberMark Fusion
Revision Date: 9/10/2014 pg. 6 of 10

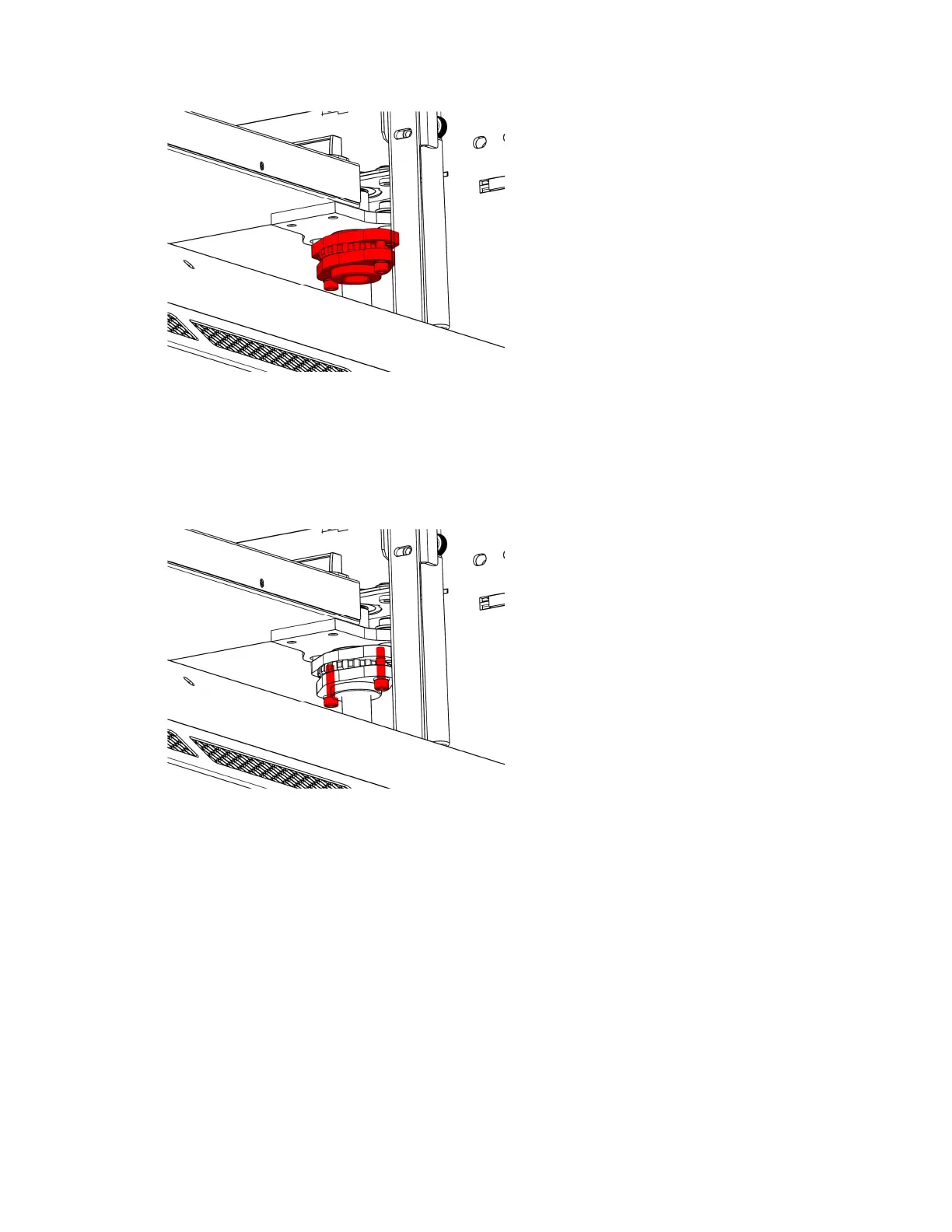

Step 4: Loosen the Lock Screws
Select the appropriate Table Level Adjuster for the corner that you wish to adjust.
Locate and loosen the two 3/32” Allen screws on the bottom of the Table Level Adjuster.
NOTE: Do not completely remove these screws.
Step 5: Make the Adjustment
Locate the Adjustment Wheel on the Table Level Adjuster. Turning the wheel to
the Right will raise the corner. Turning the wheel to the Left will lower the corner. Turn
the wheel until the corner of the table is lightly touching the Manual Focus Gauge.
