Adjusting the Table Level
Fusion and FiberMark Fusion
Revision Date: 9/10/2014 pg. 7 of 10
Step 6: Lock the Adjustment Wheel in Place.

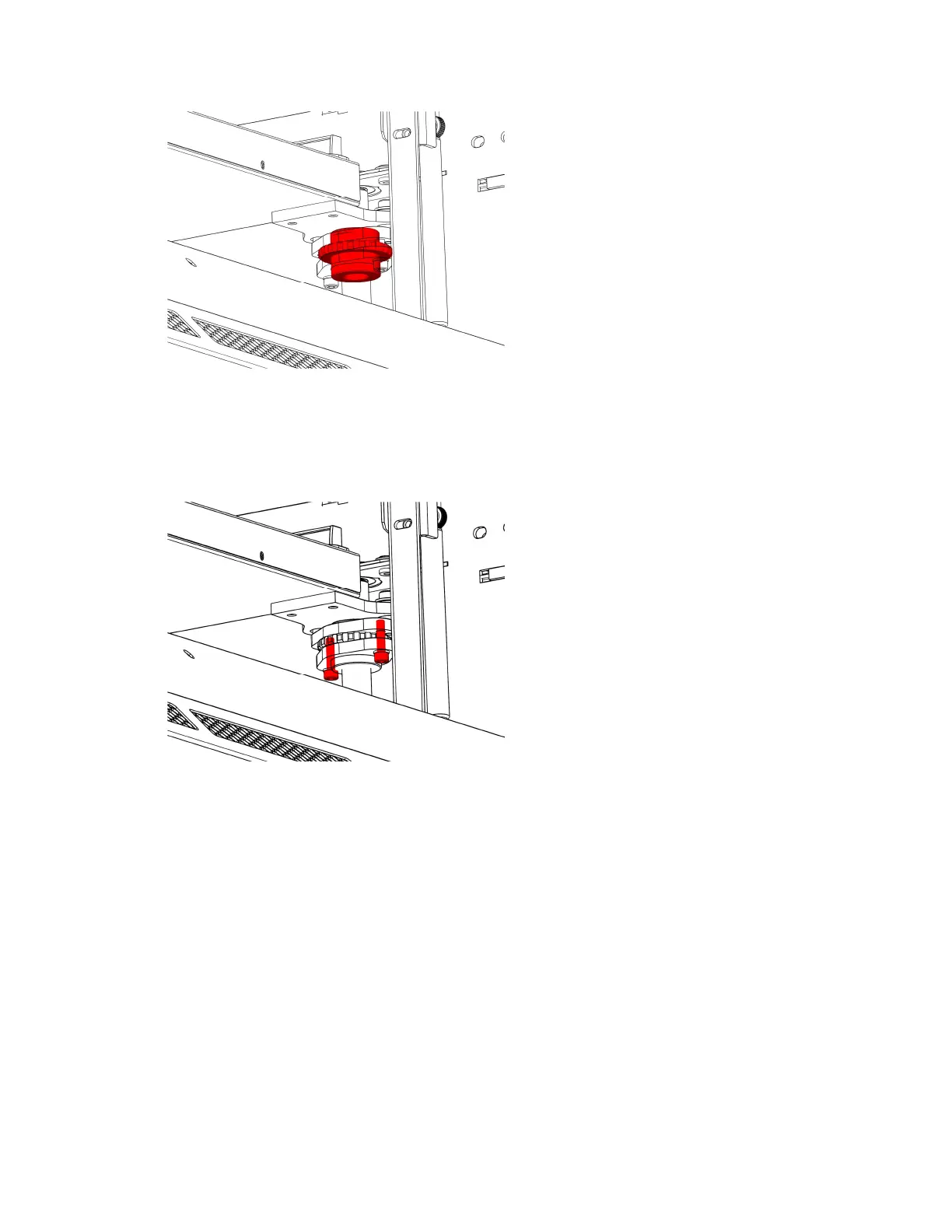

Tighten the two 3/32” Allen screws on the bottom of the Table Level Adjuster.
This will lock the level in place.
Procedure C:
Step 1: Move the Lens Carriage
Check the table level on each corner of the engraver.
