Epilog Laser Fusion User Manual

Adjusting the Table Level
Fusion and FiberMark Fusion
Revision Date: 9/10/2014 pg. 9 of 10

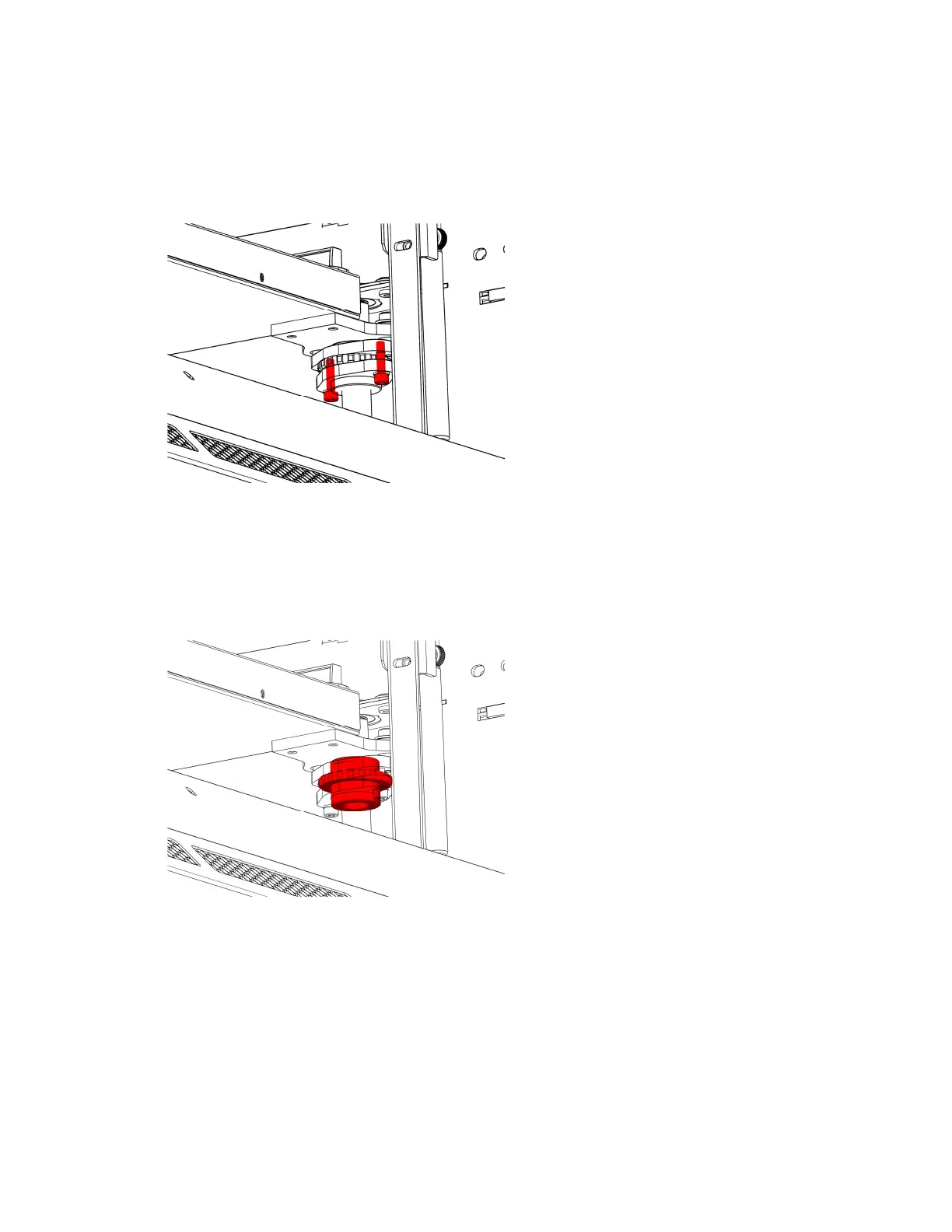

Step 4: Loosen the Lock Screws
Locate and loosen the two 3/32” Allen screws on the bottom of the Table Level
Adjuster. NOTE: Do not completely remove these screws.
Step 5: Make the Adjustment
Locate the Adjustment Wheel on the Table Level Adjuster. Turning the wheel to
the Right will raise the corner. Turning the wheel to the Left will lower the corner. Turn
the wheel until the corner of the table is lightly touching the Manual Focus Gauge.

Epilog Laser Fusion Specifications

General

Laser Type	CO2
Max Material Thickness	12.25" (311 mm)
Resolution	Up to 1200 DPI
Connectivity	Ethernet, USB
Operating Modes	Raster, Vector or Combined
Interface	Touchscreen control panel
Power Supply	110V or 220V, depending on model
Cooling	Water-cooled laser tubes
Software	Epilog Laser Dashboard
Supported File Formats	AI, BMP, DXF, EPS, GIF, JPG, PDF, PLT, PNG
Warranty	1 year limited warranty
Z Table Travel	Varies by model (typically 12 in)
Exhaust	Required, external blower recommended
