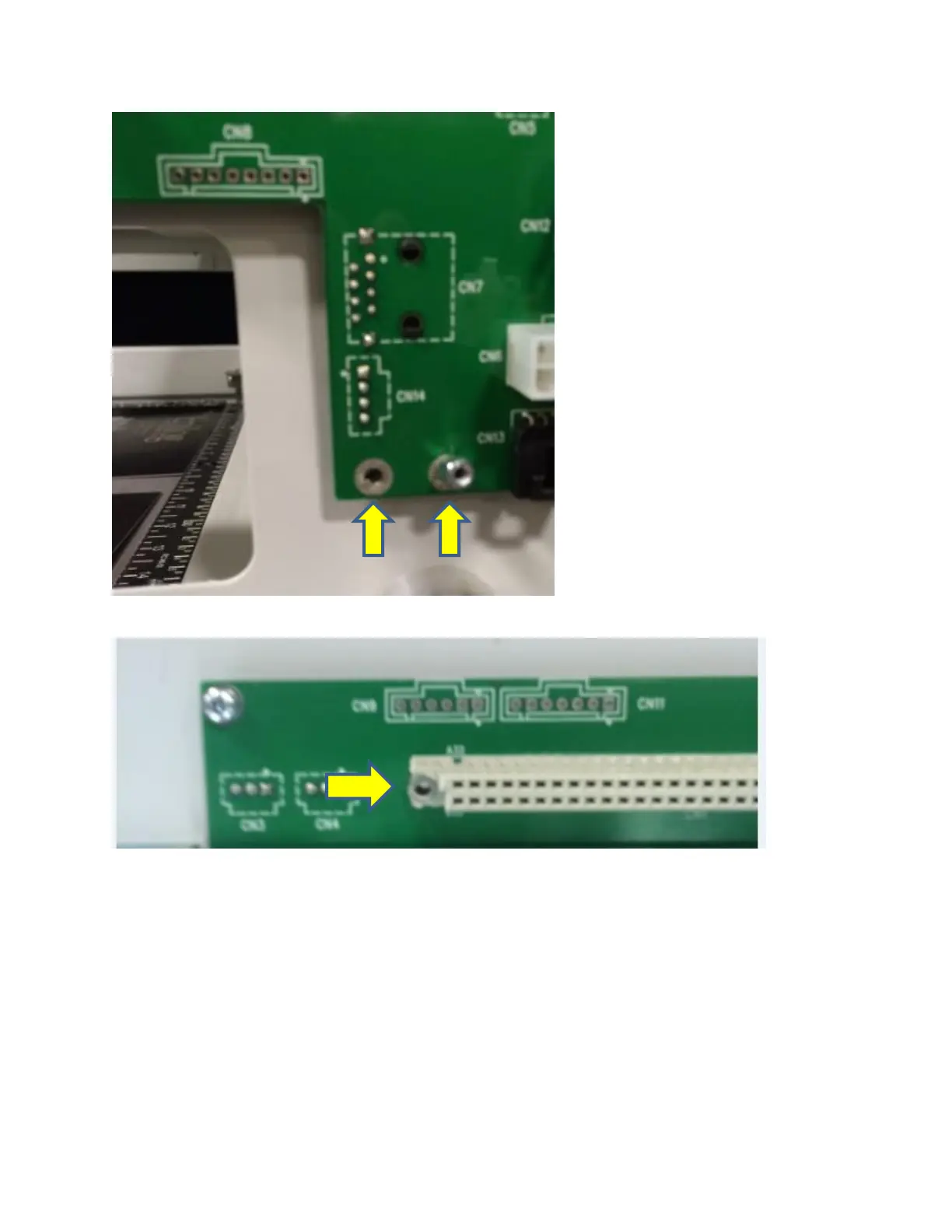

12. Next remove these allen wrenches that hold this plastic connector.
13. The Backplane board should be loose and can be removed. You can then
unplug these connectors on the back of the board.
