3.3 Signs / labels
WARNING Missing warnings
The name plate and the labels on the hydraulic attach-
ment contain important information about the hydraulic
attachment and for personal safety. A missing warning
can lead to overlooking or misinterpretation of possible
risks and cause personal hazards. The signs and labels
must always be clearly legible.
u Immediately replace any defective name plates and
labels.
u Use the spare parts list to order new name plates
and labels.

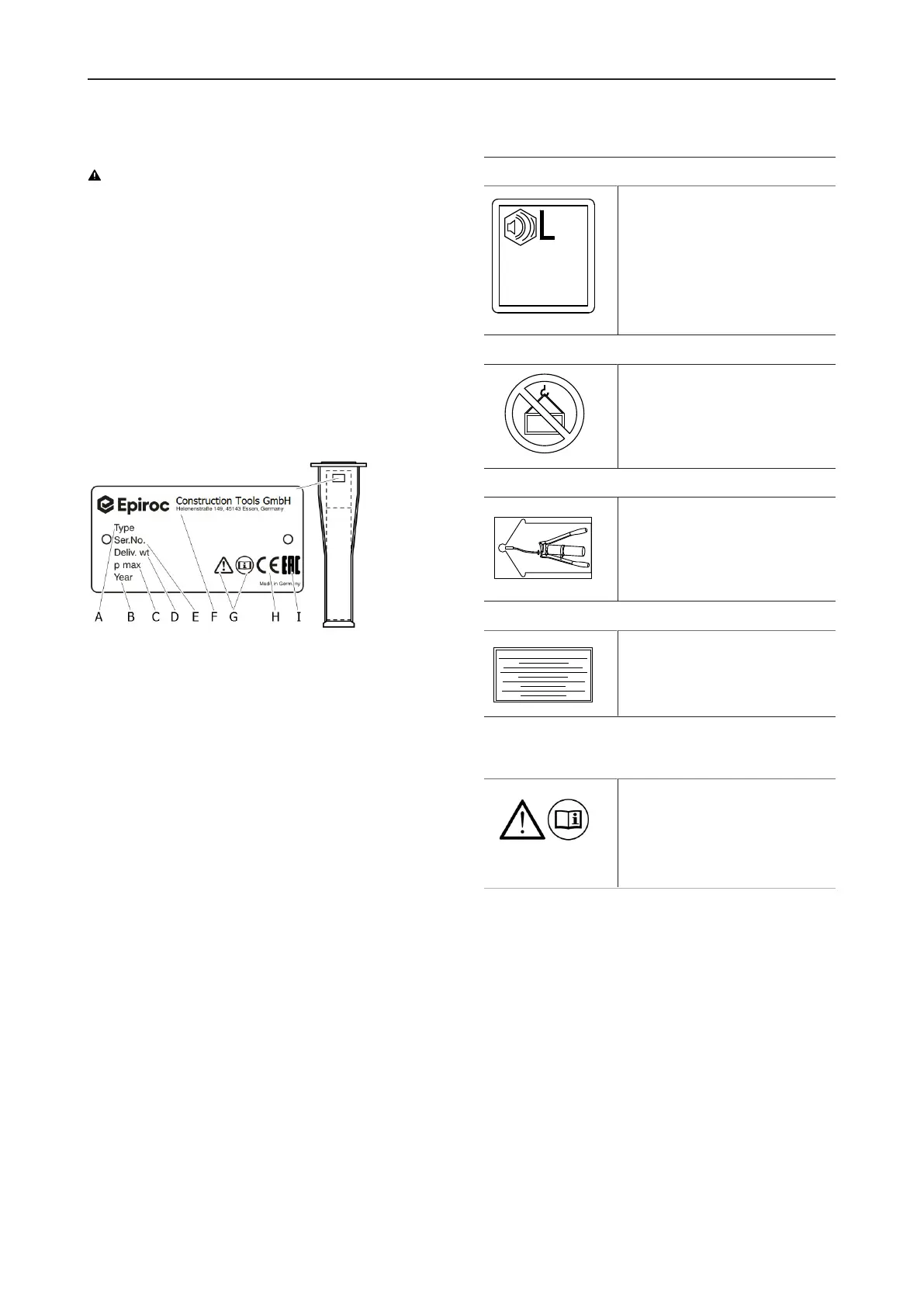

3.3.1 Name plate
A. Model
B. Year of construction of hydraulic attachment
C. Max. permissible operating pressure
D. Weight of hydraulic attachment
E. Serial number
F. Name and address of manufacturer
G. The warning symbol and the book symbol indicate
that the Safety and Operating Instructions must be
read prior to use of the hydraulic attachment and in
particular the chapter on Safety.
H. The CE symbol indicates that the hydraulic attach-
ment was produced in conformity with CE. You can
find further information about this in the enclosed EC
Declaration of Conformity.
I. The EAC symbol means that the machine is EAC
approved.
3.3.2 Labels
Sound Power
WA
xxx
dB
The label states the guaranteed
sound power level in accordance
with EC directive 2000/14/EC.
Transport warning
Never lift the hydraulic breaker
by the transport safety device.
This was not designed for lifting
and might break, causing the hy-
draulic breaker to fall
Lubrication symbol
The label identifies a lubrication
point.
Gas pressure
Gasdruck nur bei betriebswarmem Hammer prüfen!
Only check the gas pressure
when the hammer is at operating temperature!
Ne contrôler la pression d´azote que si le marteau
est à température de service!
Controllare la pressione del gas solo a mortello
a temperature d´esercizio!
¡Controlar la presión del gas sólo con el martillo
a temperatura de régimen!
The label indicates that the gas
pressure can only be checked if
the breaker has reached operat-
ing temperature.
3.3.3 Signs
The warning symbol and the
book symbol indicate that the
Safety and Operating Instruc-
tions must be read prior to use of
the hydraulic attachment and in
particular the chapter on Safety.
