I/O Shield Connector
The board is equipped with an I/O back panel. Please use the appropriate I/O shield
(figure 3).
Power-On/Off (Remote)
This board has a 20-pin ATX and a 4-pin ATX12V power supply connector (Figure
4). For power supplies that support the Remote On/Off feature, this should be
connected to the mainboard front panel PW_ON connector for the computer power
On/Off button.
The board has been designed with Soft Off" function. You can turn off the system
in two ways: by pressing the front panel power On/Off button or using the "Soft
Off" function (incorporated in the mainboards onboard circuit controller) that can
be controlled by an operating system such as Windows
®
ME/2000/98SE/XP.
Note: For maintaining the DDR SDRAM power during STR (ACPI S3) function, it is
strongly recommended to use ATX power supplies that have a +5VSB current
of (>=) 1A (1000mA). Please check the 5VSBs specification that has been
printed on the ATX power supplys outer case.
Note: The board requires a minimum of 250 Watt ATX power supply to operate. Your
system configuration (amount of memory, add-in cards, peripherals, etc.) may
exceed the minimum power requirement but to ensure that adequate power is
provided, use a 300 Watt (or greater) ATX power supply.

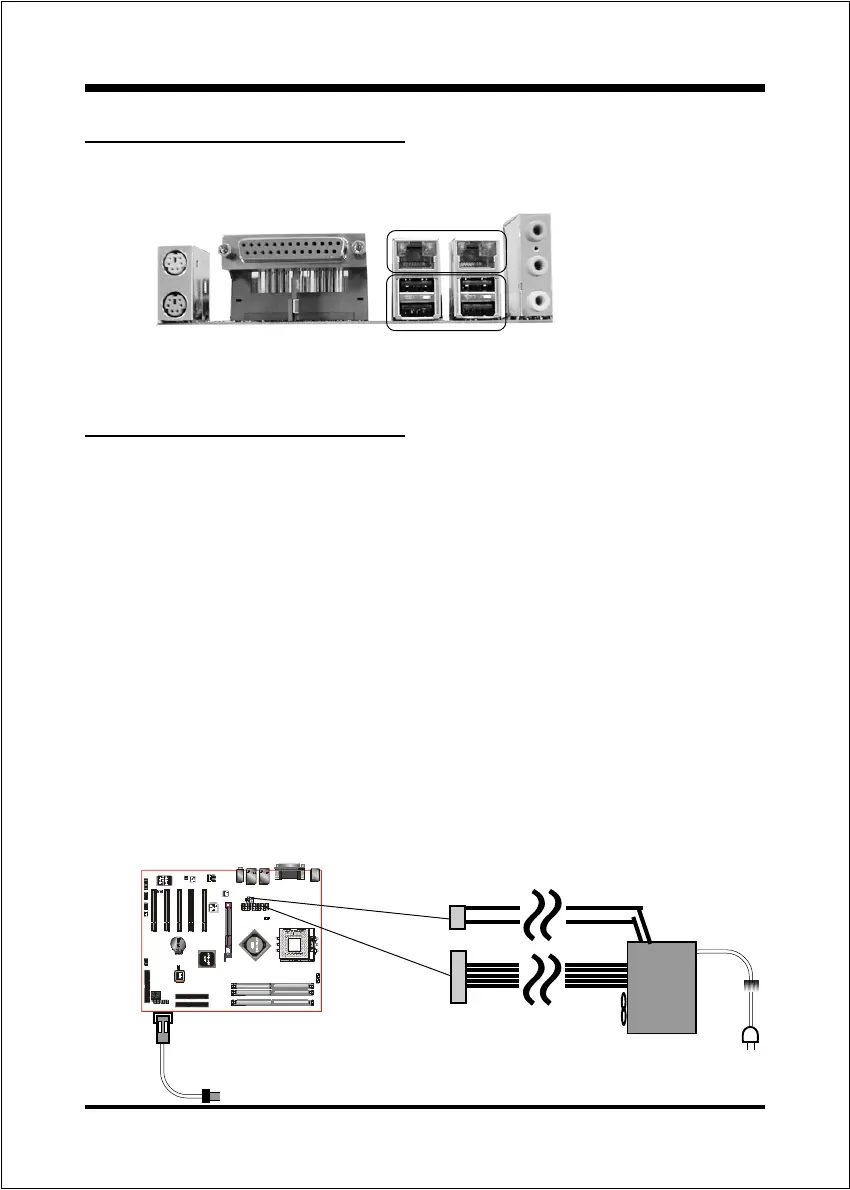

Figure 3: I/O back panel layout
USB2.0 ports
Parallel Port
PS/2
Mouse
PS/2
Keyboard
RJ45 LAN
(Optional)
Mic-in/Center&Subwoofer (Pink)
Line-out/Front out (Green)
Line-in/Rear out (Blue)
PW-ON
Case (chassis) Power ON/OFF button (PW-ON)
POWER SUPPLY
12V 4-pin
20-pin
Figure 4: Simple ATX power ON/OFF controller
