Installation
Page 3-14

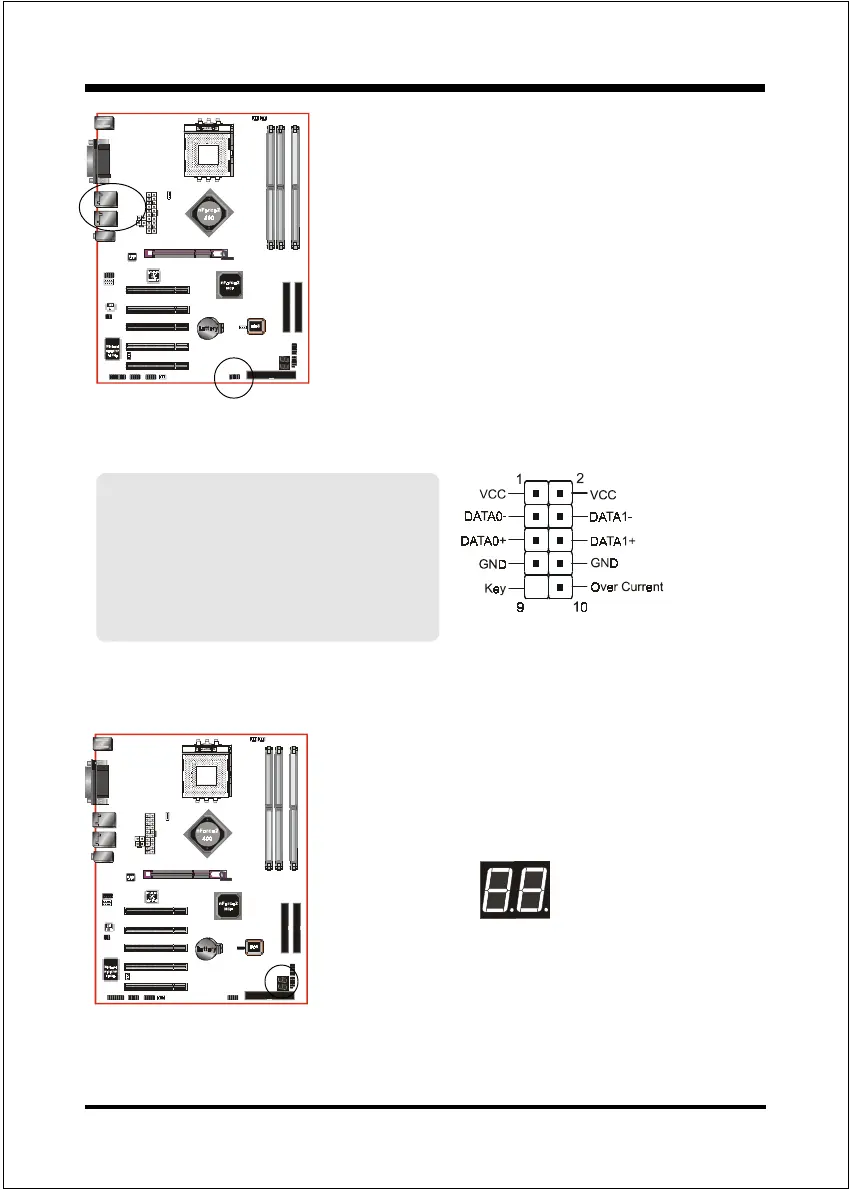

USB1/USB2/CUSB3: Six USB 2.0 ports
The mainboard is equipped with sixt onboard USB2.0/
1.1 ports (4 at rear panel).
It is equipped with a 10-pin connector for connect-
ing 2 additional external USB 2.0/1.1 ports. If you
wish to use the additional USB ports, install the
card-edge bracket to the system chassis then insert
the connector that is attached to the USB port
cables to this 10-pin connector.
USB2.0 allows data transfer speed up to 480Mbps.
CUSB3
USB1
USB2
LED1: 80 Port Debug LED
Provides two-digit POST code to show why the
system fail to boot. Allows quick and easy
optimization.
80 Port Debug 7-segment LED display
(Refer to Appendix D for POST codes)
CAUTION !
Please make sure the USB cable has the same
pin assignment. A different pin assignment
may cause damage to the system.
If you need the USB cable, please contact our
retailer.
