8
If wiring the load connection to a load distribution panel, each load circuit
should be fused separately. The total load draw should not exceed the load
rated current of controller.
Step 3: Solar wiring
WARNING: Risk of electric shock! Exercise caution
when handling solar wiring. The solar module(s) high
voltage output can cause severe shock or injury. Be
careful operation when installing solar wiring.
The controller can accept12V, 24V nominal off-grid solar module(s).
Grid-tie solar module(s) may be used if the open circuit voltage of solar
module doesn’t exceed the Maximum PV input voltage of the controller.
The solar module(s) work voltage must be equal to or greater than the
system voltage.

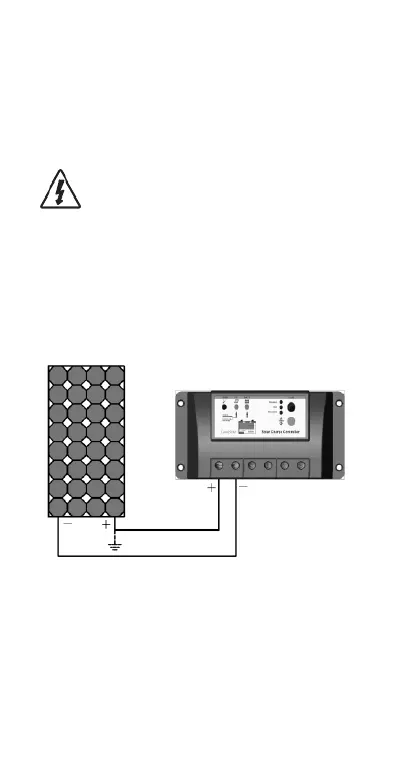

Figure 3-4 Solar wiring
