3.2 Wiring

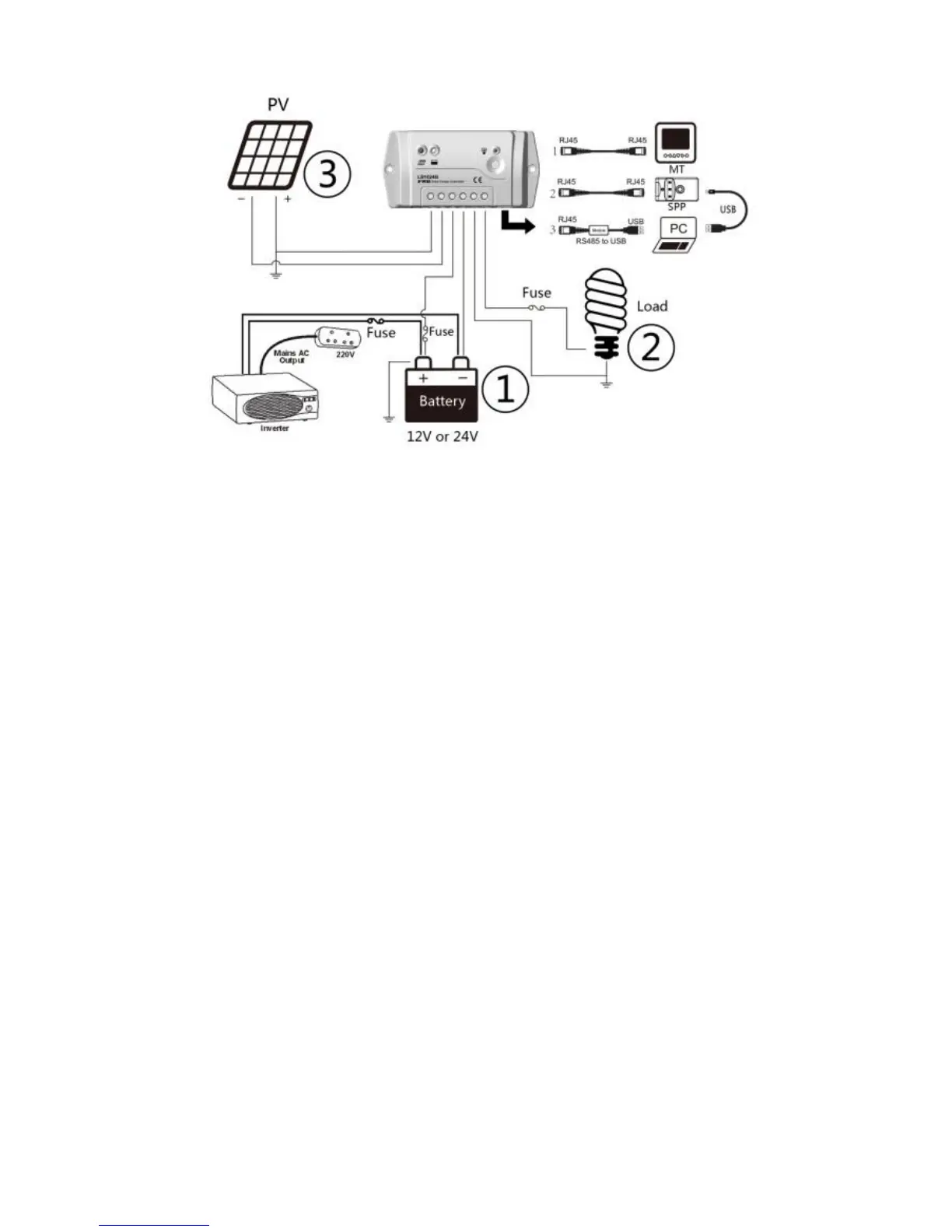

1， Connect components to the charge controller in the sequence
as shown in above picture and pay much attention to the “+”
（Red）and “-“（Black）.Always power the battery First.
2， After power the battery, check the battery indicator on the
controller, it will be green. If it’s not green, please refer to
chapter 5.
3， The battery fuse should be installed as close to battery as
possible. The suggested distance is within 150mm.
