8.6 Connector Summary
This section shows the connections between the main components of Artisan 835/725/PX820FWD/TX820FWD/PX720WD/TX720WD.

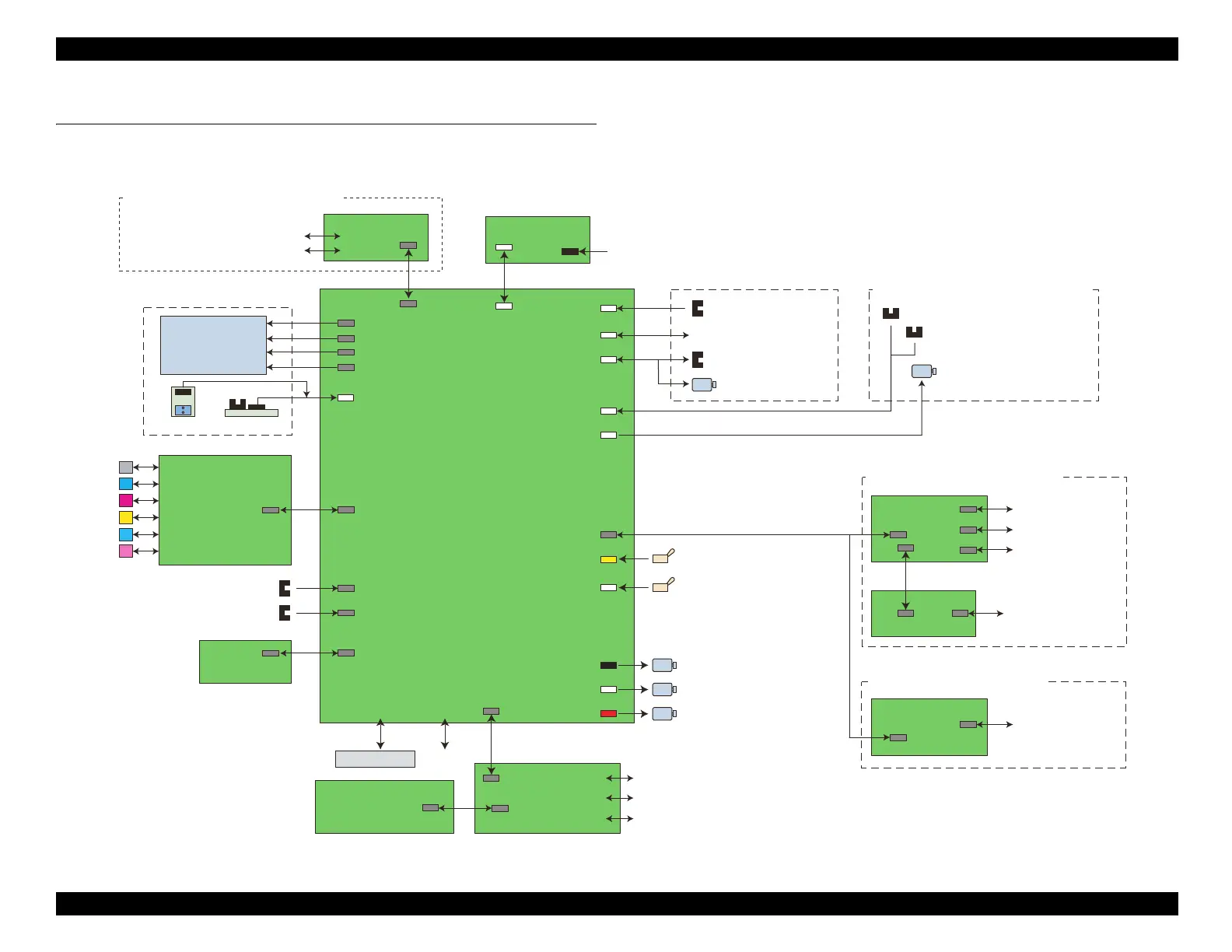

Figure 8-35. Block Diagram (Artisan 835/725/PX820FWD/TX820FWD/PX720WD/TX720WD)

CA73 PSB
Printhead
PW Sensor
CR Encoder
PF Encoder
B
M
Y
Carriage Assy
AC in
CN2
CN501
CN1
CN2
CN3
CN4
CN6
CN5
CN7
CN1
CN1
CN1
CSIC
CR Contact Module
CA73 SUB-B
LM
C
LC
CN8
PE Sensor
CN9
CN30
PF Motor
CN22
CR Motor
CN21
Decompression Motor
CN24
Photo Tray Sensor
CN12
Duplex Unit Sensor
CN13
Wired LAN
CN31
USB 2.0
CN1
CA52 STG
CN7
Compact Flash
CN8
MS/SD/xD/MMC
CN2
USB Host 2.0
CN3
Wireless LAN Module
J2
CA29 PNL
CN33
CN1
CN3
Touch panel
CN2
3.5 inch LCD Module
CN5
SUB-C Board
CA29 PNL-B
SUB-B Board
CIS Module
CN41
Scanner Encoder
Scanner Motor
CN49
Scanner Unit
CN25
CN51
DOC Sensor
ADF Motor
ADF Unit
CN35
Scanner Open Sensor
CN10
PE Sensor
Operation Panel Unit
CA74 PNL
CN1
CN201
2.5 inch LCD Module
CN4 CN5
CN4
Main Board
Only Artisan 835/PX820FWD/TX820FWD
CN1
CN3
CA29 IF-B
LINE Port
CN20
CN2
1
EXT Port
Only Artisan 835/PX820FWD/TX820FWD
Artisan 835/PX820FWD/TX820FWD
Operation Panel Unit
Artisan 725/PX720WD/TX720WD
*
Note* : The model number of the main boards is as follows.
CA73 MAIN: Artisan 835/PX820FWD/TX820FWD
CA74 MAIN: Artisan 725/PX720WD/TX720WD
