9.4.2.13 Scanner Open Sensor
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/Decoration Plate Left Upper Sub/Paper Guide Top Assy/
Upper Housing
 Removal procedure

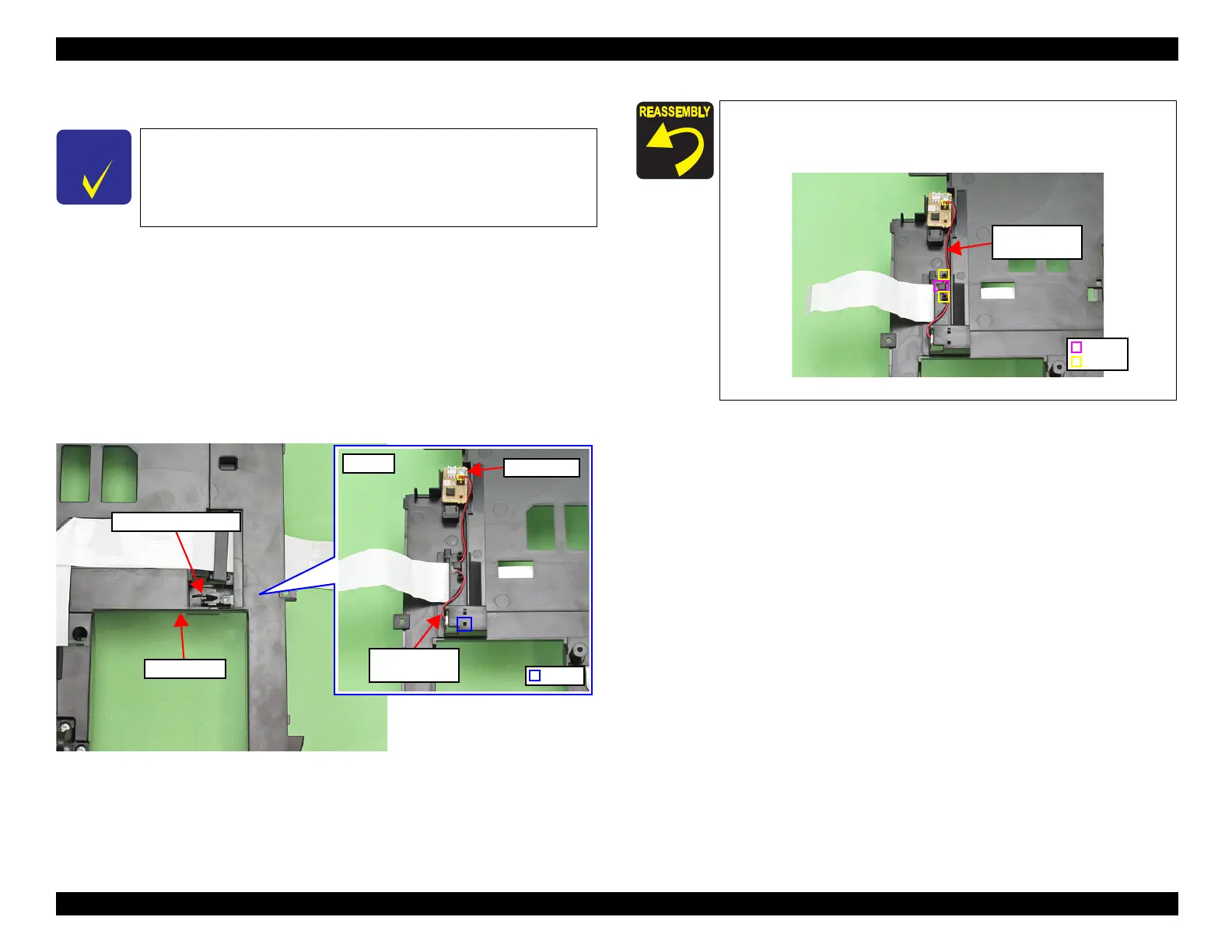

1. Disconnect the Scanner Open Sensor cable from the connector on the Relay
Board. (See
Fig. 9-34.)
2. Release the hook (x1), and remove the Scanner Open Sensor from the Upper
Housing.
Figure 9-34. Removing the Scanner Open Sensor
C H E C K
P O I N T
This section describes the disassembly/reassembly procedures of the
Scanner Open Sensor for Artisan 837/PX830FWD.
The disassembly/reassembly procedures for Artisan 730/PX730WD/
TX730WD differ from those for Artisan 837/PX830FWD, therefore,
see
"9.4.2.22 Scanner Open Sensor" (p.316) for the procedures.
Scanner Open Sensor
Bottom
Relay Board
Hook
Scanner Open
Sensor cable
Upper Housing
When installing the Scanner Open Sensor, route the Scanner Open
Sensor cable through the hook (x1) and dowels (x2) of the Upper
Housing as shown in
Fig. 9-35.
Figure 9-35. Routing the Scanner Open Sensor Cable
Hook
Rib
Scanner Open
Sensor cable
