100

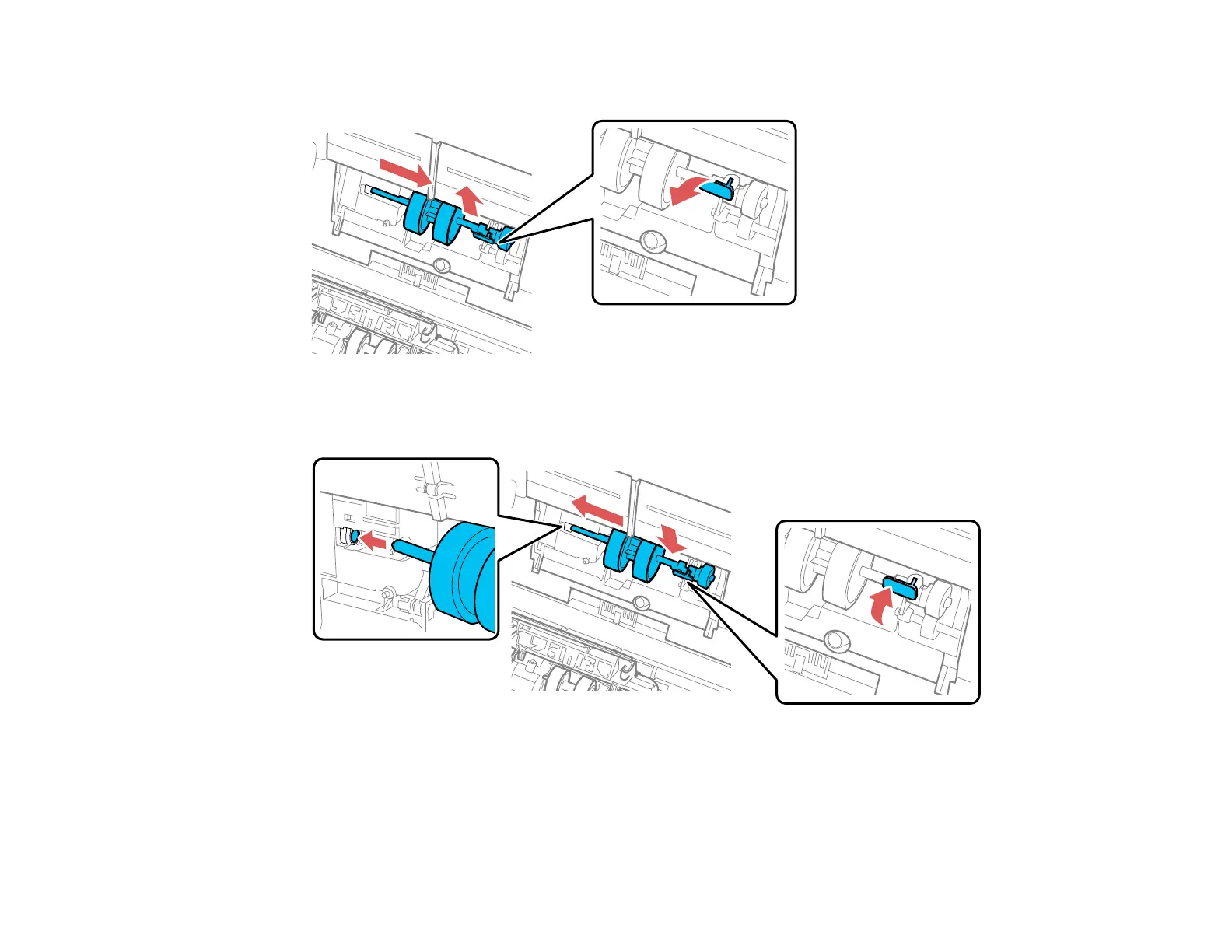

6. Pull down the tab on the pickup rollers and slide the rollers to the right to remove them.
7. To install the new pickup rollers, align the notches on the roller unit and slide it to the left. Press up
on the tab to secure the rollers.
