Epson BrightLink 450Wi - Interactive Projector Installation

Installation Worksheet
for Projecting on a Pre-installed Wall-mounted Board
Use this worksheet to determine where to position the wall mount for a BrightLink
™
installation
with a pre-existing whiteboard.
(1) Measure the ceiling height (distance from the floor to the ceiling).
(2) Measure the height of the board’s image area (h).
(3) Measure the width of the board’s image area (w).
(4) Measure the distance from the floor to the bottom of the board’s image area (f ).
(5) Measure the distance from the ceiling to the top of the board’s image area (c).
(6) Measure the thickness of the board (x).
_____
_____ (h)
_____ (w)
_____ (f)
_____ (c)
_____ (x)

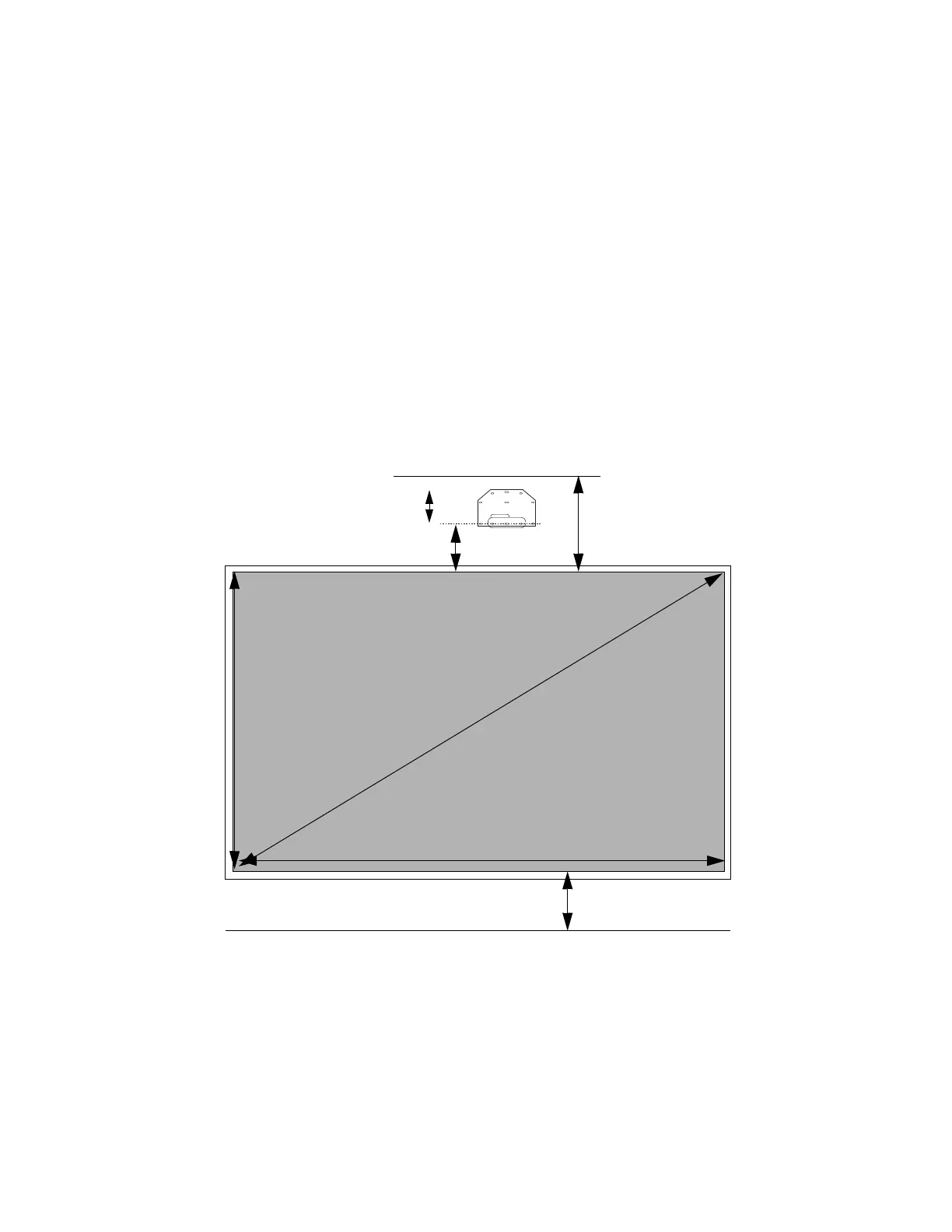

10 in. (254 mm)—height of
wall plate plus cover
Required distance from top
of image area to wall plate (b)
Diagonal size of
image area (S)
Height of
image area (h)
Distance from ceiling to
top of image area (c)
Width of image area (w)
Distance from floor to
bottom of image area (f)

Epson BrightLink 450Wi - Interactive Projector Specifications

General

Display Technology	3LCD
Native Resolution	WXGA (1280 x 800)
Contrast Ratio	2000:1
Operating Temperature	41°F to 95°F (5°C to 35°C)
Output Ports	VGA, Audio out
Wireless Connectivity	Optional (via wireless module)
Weight	13.2 lbs (6 kg)
Power Consumption	0.4W (Standby)
Lamp Life	3500 hours (Normal), 5000 hours (Eco)
