Epson EB-1485Fi Installation Guide

Introduction
6

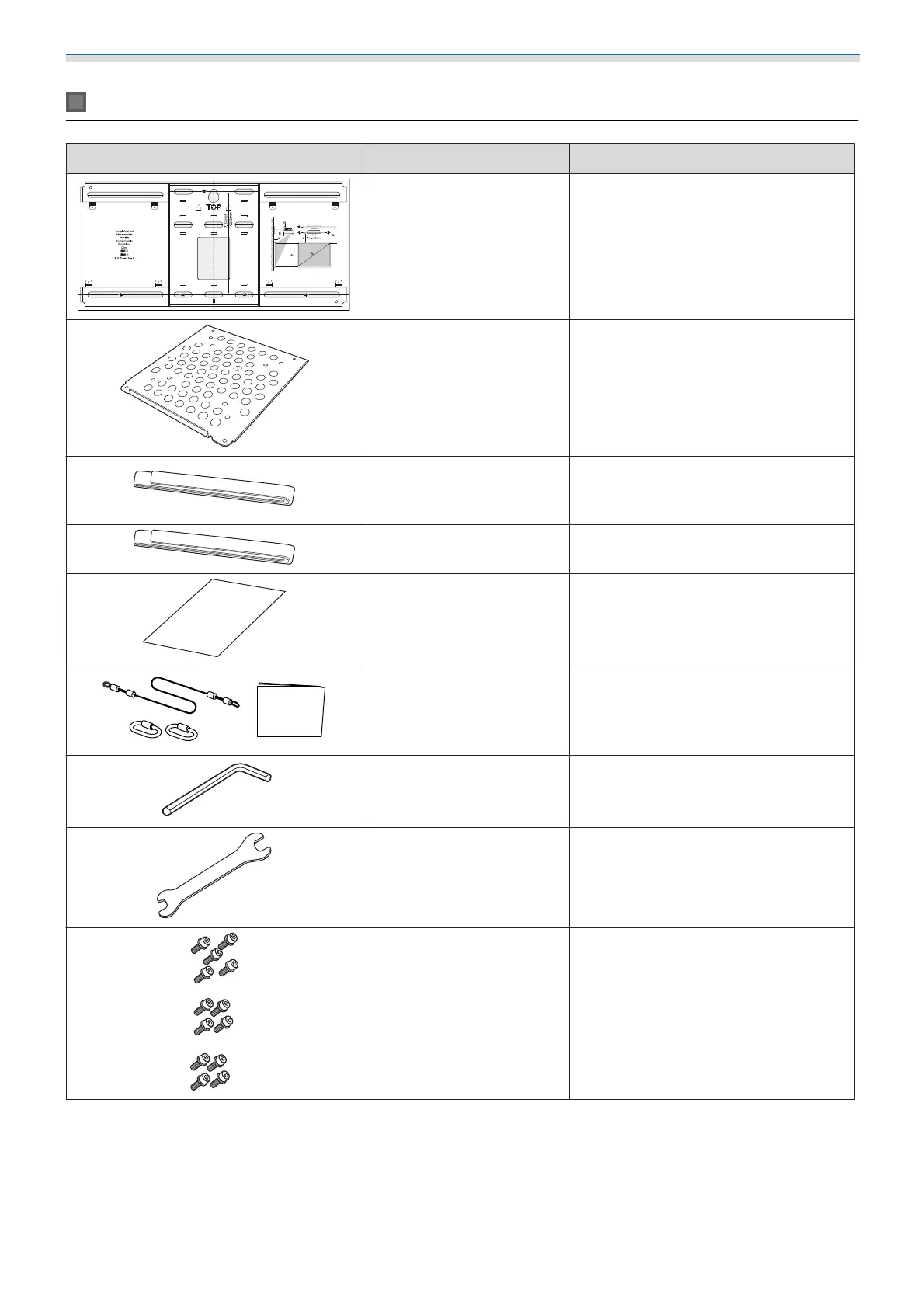

Accessories
Part Name Application
Template sheet Attach this to the wall before attaching
the wall plate, and use it to drill neces‐
sary holes.
Mini PC plate Attach this to the wall plate when in‐
stalling a mini PC or stick PC.
Mini PC belt Secure the PC to the plate when at‐
taching a mini PC or a stick PC that can‐
not be attached using screws.
Cable binding belt Secure excess cables after performing
wiring.
Masking sticker Stick this over the groove in the arm of
setting plate to cover it up after instal‐
ling.
Safety wire set Connect to the wall mount and the
projector to prevent the projector from
falling. See the user's guide supplied
with the safety wire set for more details.
Hexagon wrench (for M4) -
No.13 open-ended spanner
(for M8 and M6), No. 6
(for hexagonal axis)
-
M4 x 12 mm hexagon sock‐
et head cap bolt with wash‐
er/spring washer (x13)

Assemble the wall plate as shown in
the figure on p.5 (x5)

Secure the adjustment unit to the pro‐
jector (x4)

Secure the adjustment unit to the set‐
ting plate (x4)

Epson EB-1485Fi Specifications

General

Matrix size	0.62 \
Heat dissipation	1244 BTU/h
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	0 - 0.78 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	65 - 100 \
Projection distance (tele)	0 - 0.6 m
Projection distance (wide)	0 - 0.4 m
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-3 - 3 °
Projector brightness (economic mode)	3500 ANSI lumens
Focus	Manual
Throw ratio	0.27 - 0.37:1
Zoom capability	Yes
Fixed focal length	3.9 mm
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	366 W
Power consumption (economy mode)	262 W
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
DVI port	No
Composite video in	0
HDMI connector type	Full-size
HDMI ports quantity	3
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	1
Mobile High-Definition Link (MHL)	-
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Noise level	36 dB
Country of origin	China
Interactive input supported	Interactive pen/Touch
Noise level (economic mode)	27 dB
Compatible operating systems	Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Windows 10, Windows 10 (32/64 bit), Windows 2000
Placement	Wall
Product type	Ultra short throw projector
Product color	White
Market positioning	Business
Cable lock slot type	Kensington
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
RMS rated power	16 W
Storage temperature (T-T)	-10 - 60 °C
Bundled software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Quantity per pallet (UK)	12 pc(s)
Harmonized System (HS) code	85286200
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Sustainability certificates	TCO
Software support	via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Windows operating systems supported	Windows 10, Windows 10 x64, Windows 2000

Weight and Dimensions

Depth	375 mm
Width	458 mm
Height	210 mm
Weight	9300 g
Package depth	590 mm
Package width	472 mm
Package height	640 mm
Package weight	27700 g
