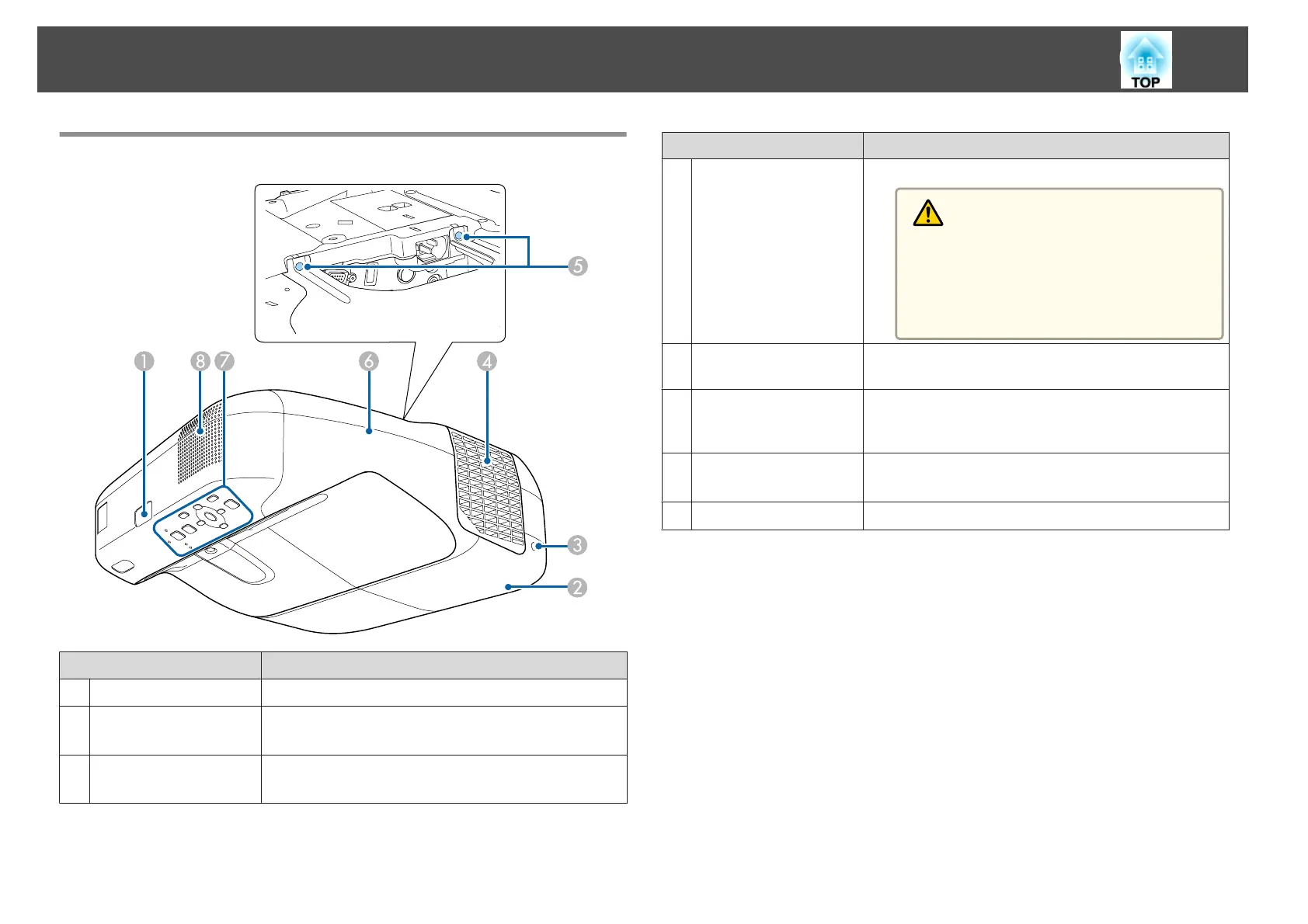

Front/Side
Name Function
A
Remote receiver
Receives signals from the remote control.
B
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.175
C
Lamp cover fixing
screw
Screw to fix the lamp cover in place.
s "Replacing the Lamp" p.175
Name Function
D
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
E
Cable cover fixing
screws
Screws to fix the cable cover in place.
F
Cable cover
Loosen the two screws and open the cover when
connecting cables for external devices or installing the
wireless LAN unit.
G
Control panel
Operates the projector.
s "Control Panel" p.16
H
Speaker
Outputs audio.
