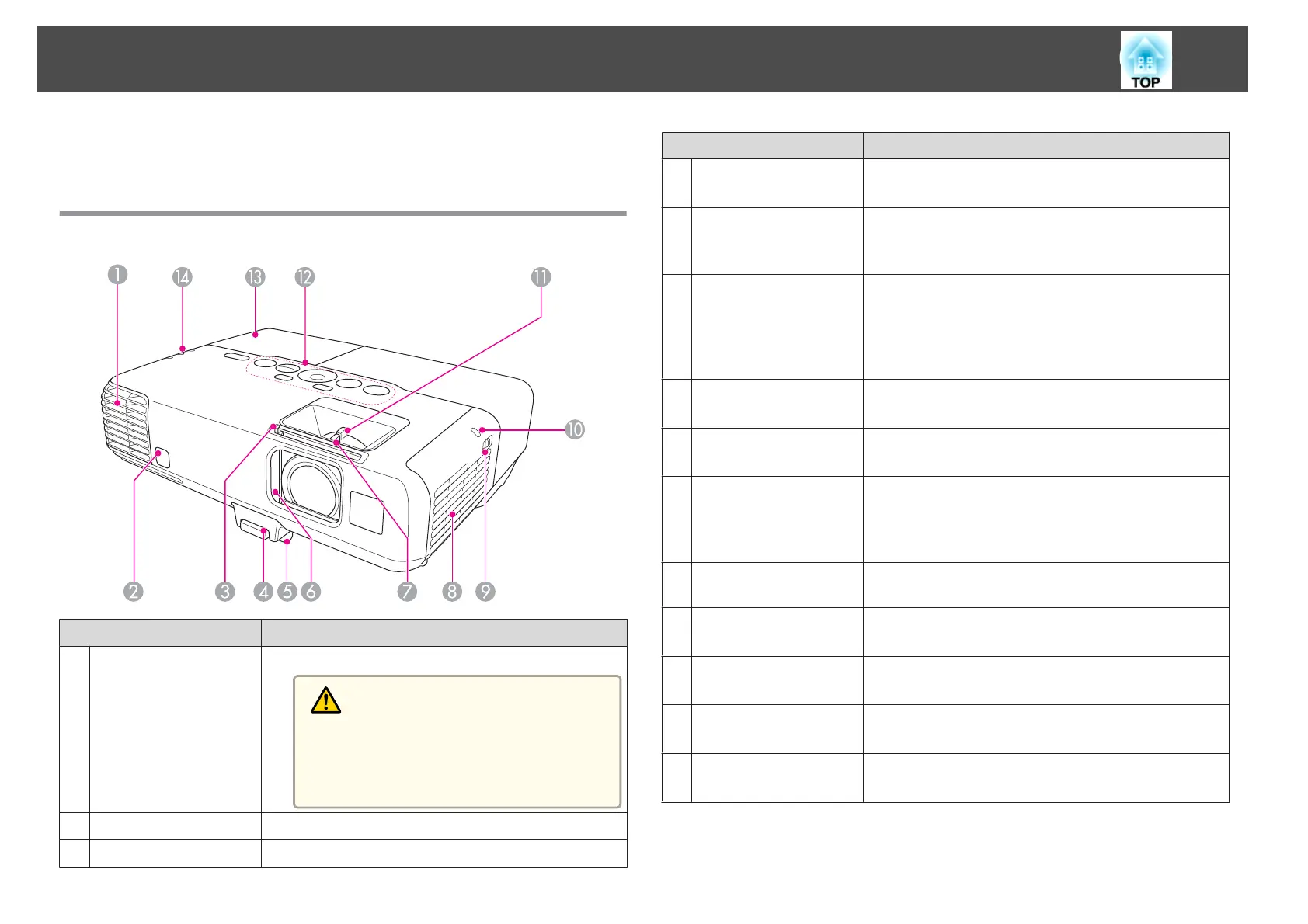

All of the features in this guide are explained using illustrations of EB-925
unless otherwise mentioned.
Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent.
B
Remote receiver
Receives signals from the remote control.
C
A/V mute slide knob
Slide the knob to open and close the A/V mute slide.
Name Function
D
Foot adjust lever
Press the foot lever to extend and retract the front foot.
s "Adjusting the Image Position" p.39
E
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.39
F
A/V mute slide
Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.51
G
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.40
H
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.110
I
Air filter cover open/
close switch
Opens and closes the air filter cover.
Open this cover when installing the optional wireless LAN
unit.
s "Replacing the Air Filter" p.116
J
Wireless LAN indicator
Displays the access status of the optional Wireless LAN
unit.
K
Zoom ring
Adjusts the image size.
s "Adjusting the Image Size" p.39
L
Control panel
Operates the projector.
s "Control Panel" p.13
M
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.112
N
Indicators
Indicates the projector's status.
s "Reading the Indicators" p.95
