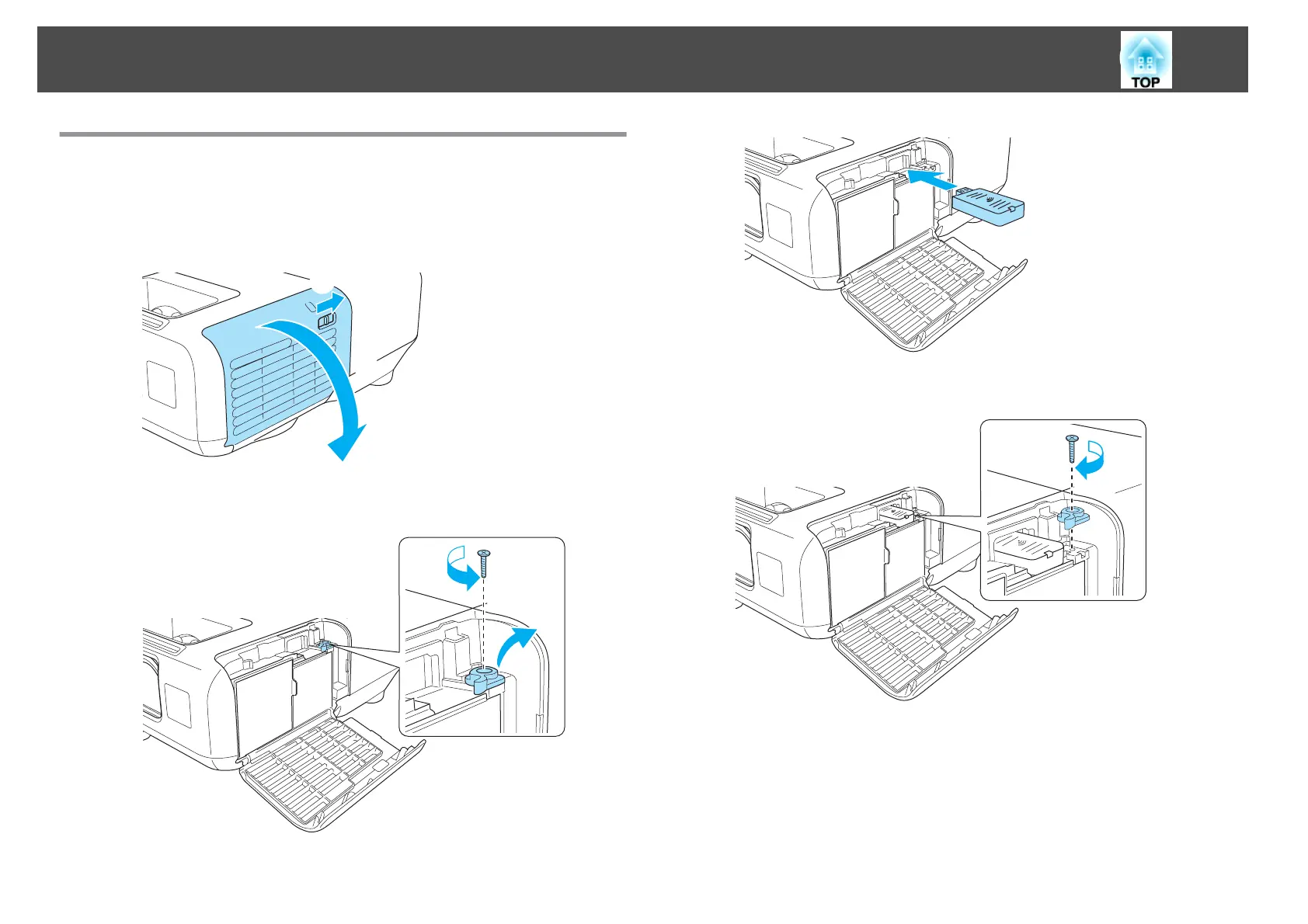

Installing
the
Wireless
LAN
Unit
a
Open
the
air
filter
cover.
Slide
the
air
filter
cover
open/close
switch,
and
open
the
air
filter
cover.
②
①
b
R
e
m
o
v
e t
h
e s
t
o
p
p
e
r f
o
r
t
h
e W
i
r
e
l
e
s
s L
A
N u
n
i
t
.
②
①
c
Install
the
Wireless
LAN
unit.
d
Fix
the
stopper
in
place
with
the
screw.
e
C
l
o
s
e t
h
e a
i
r f
i
l
t
e
r c
o
v
e
r
.
Connecting Equipment
28
27
29
Table of Contents
Notations Used in this Guide
2
Table of Contents
3
Introduction
6
Projector Features
7
List of Functions by Model
7
Quick and Easy Set Up, Projection, and Storage
8
Easy Writing on a Whiteboard or Blackboard Using the Pattern Function
8
Connecting with a USB Cable and Projecting (USB Display)
8
Detecting Projector Movements and Automatically Correcting Image Distortion
8
Useful Functions for Projecting Images
8
Increasing Projection Content in Wide (WXGA) Screen (EB-915W/EB-910W/EB-96W Only)
8
Connecting to a Network and Projecting Images from the Computer's Screen
8
Easy Connection to a Computer with Quick Wireless
9
Making the most of the Remote Control
9
Enlarge and Project Your Files with the Document Camera
9
Enhanced Security Functions
9
Part Names and Functions
10
Front/Top
10
Rear
11
Base
12
Control Panel
13
Remote Control
14
Replacing the Remote Control Batteries
16
Remote Control Operating Range
17
Preparing the Projector
18
Installing the Projector
19
Installation Methods
19
Screen Size and Approximate Projection Distance
20
Connecting Equipment
22
Connecting a Computer
22
Connecting Image Sources
23
Connecting USB Devices
25
Connecting External Equipment
26
Connecting a LAN Cable (EB-925/EB-915W/EB-905/EB-96W/EB-95 Only)
27
Installing the Wireless LAN Unit
28
Basic Usage
29
Projecting Images
30
From Installation to Projection
30
Automatically Detect Input Signals and Change the Projected Image (Source Search)
31
Switching to the Target Image by Remote Control
32
Projecting with USB Display
32
System Requirements
32
Connecting for the First Time
33
Uninstalling
34
Adjusting Projected Images
36
Correcting Keystone Distortion
36
Correcting Automatically (Auto V-Keystone)
36
Correcting Manually (Manual H/V-Keystone)
36
Correcting Manually (Quick Corner)
37
Adjusting the Image Size
39
Adjusting the Image Position
39
Adjusting the Horizontal Tilt
39
Correcting the Focus
40
Adjusting the Volume
40
Selecting the Projection Quality (Selecting Color Mode)
40
Setting Auto Iris
41
Changing the Aspect Ratio of the Projected Image
42
Changing Methods
42
Changing the Aspect Mode (EB-915W/EB-910W/EB-96W Only)
42
Changing the Aspect Mode (EB-925/EB-905/EB-900/EB-95 Only)
43
Contents
45
Useful Functions
45
Projection Functions
46
Projecting Without a Computer (Slideshow)
46
Specifications for Files that Can be Projected Using Slideshow
46
Slideshow Examples
46
Slideshow Operating Methods
46
Projecting the Selected Image
48
Projecting Image Files in a Folder in Sequence (Slideshow)
49
Image File Display Settings and Slideshow Operation Settings
50
Hiding the Image and Sound Temporarily (A/V Mute)
51
Freezing the Image (Freeze)
51
Pointer Function (Pointer)
52
Enlarging Part of the Image (E-Zoom)
53
Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)
54
Saving a User's Logo
55
Saving User Pattern
57
Security Functions
59
Managing Users (Password Protect)
59
Kinds of Password Protect
59
Setting Password Protect
59
Entering the Password
60
Restricting Operation (Control Panel Lock)
61
Anti-Theft Lock
62
Installing the Wire Lock
62
Monitoring and Controlling
63
About Easymp Monitor
63
Changing Settings Using a Web Browser (Web Control)
63
Projector Setup
63
Displaying the Web Control Screen
64
Displaying the Web Remote Screen
64
Using the Mail Notification Function to Report Problems
66
Reading Error Notification Mail
66
Management Using SNMP
66
ESC/VP21 Commands
67
Command List
67
Cable Layouts
67
About Pjlink
68
About Crestron Roomview
69
Operating a Projector from Your Computer
69
Configuration Menu
73
Using the Configuration Menu
74
List of Functions
75
Configuration Menu Table
75
Network Menu
76
Image Menu
77
Signal Menu
78
Settings Menu
80
Extended Menu
81
Network Menu
83
Notes on Operating the Network Menu
84
Soft Keyboard Operations
84
Basic Menu
85
Wireless LAN Menu
85
Security Menu
87
Wired LAN Menu (EB-925/EB-915W/EB-905/EB-96W/EB-95 Only)
88
Mail Menu
89
Others Menu
90
Reset Menu
91
Info Menu (Display Only)
91
Reset Menu
92
Troubleshooting
93
Using the Help
94
Problem Solving
95
Reading the Indicators
95
When the Indicators Provide no Help
98
Contents
99
Problems Relating to Images
99
No Images Appear
99
Moving Images Are Not Displayed (Only the Moving Image Portion Turns Black)
100
Projection Stops Automatically
100
Not Supported" Is Displayed
100
No Signal" Is Displayed
100
Images Are Fuzzy, out of Focus, or Distorted
101
Interference or Distortion Appear in Images
102
The Image Is Truncated (Large) or Small, or the Aspect Is Not Suitable
102
Image Colors Are Not Right
103
Images Appear Dark
104
Problems When Projection Starts
104
The Projector Does Not Turn on
104
Other Problems
105
No Sound Can be Heard or the Sound Is Faint
105
No Sound Can be Heard from the Microphone
105
The Remote Control Does Not Work
106
I Want to Change the Language for Messages and Menus
106
Mail Is Not Received Even if an Error Occurs with the Projector
106
About Event ID
108
Maintenance
109
Cleaning
110
Cleaning the Projector's Surface
110
Cleaning the Lens
110
Cleaning the Air Filter
110
Replacing Consumables
112
Replacing the Lamp
112
Lamp Replacement Period
112
How to Replace the Lamp
113
Resetting the Lamp Hours
115
Replacing the Air Filter
116
Air Filter Replacement Period
116
How to Replace the Air Filter
116
Appendix
117
Optional Accessories and Consumables
118
Optional Accessories
118
Consumables
118
Screen Size and Projection Distance
119
Projection Distance (for EB-925/EB-905)
119
Projection Distance (for EB-915W)
120
Projection Distance (for EB-910W)
121
Projection Distance (for EB-900)
123
Projection Distance (for EB-96W)
124
Projection Distance (for EB-95)
125
Supported Monitor Displays
127
Supported Resolutions
127
Computer Signals (Analog RGB)
127
Component Video
127
Composite Video
127
Input Signal from the HDMI Port
127
Specifications
129
Projector General Specifications
129
Appearance
134
Glossary
136
General Notes
138
About Notations
138
General Notice
138
Index
156
