Epson EB-E20 User Manual

Projector Connections
27
See these sections to connect the projector to a variety of projection sources.
Attention
Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or your
projector could be damaged or could malfunction.
a
See the Quick Start Guide for a list of cables supplied with your
projector. Purchase optional or commercially available cables when
necessary.
gg Related Links
• "Connecting to a Computer" p.27
• "Connecting to Video Sources" p.29
• "Connecting to External USB Devices" p.31
• "Connecting to a Document Camera" p.32
• "Connecting to External Devices" p.32
Connecting to a Computer
Follow the instructions in these sections to connect a computer to the
projector.
gg Related Links
• "Connecting to a Computer for VGA Video and Audio" p.27
• "Connecting to a Computer for USB Video and Audio" p.28
• "Connecting to a Computer for HDMI Video and Audio" p.29

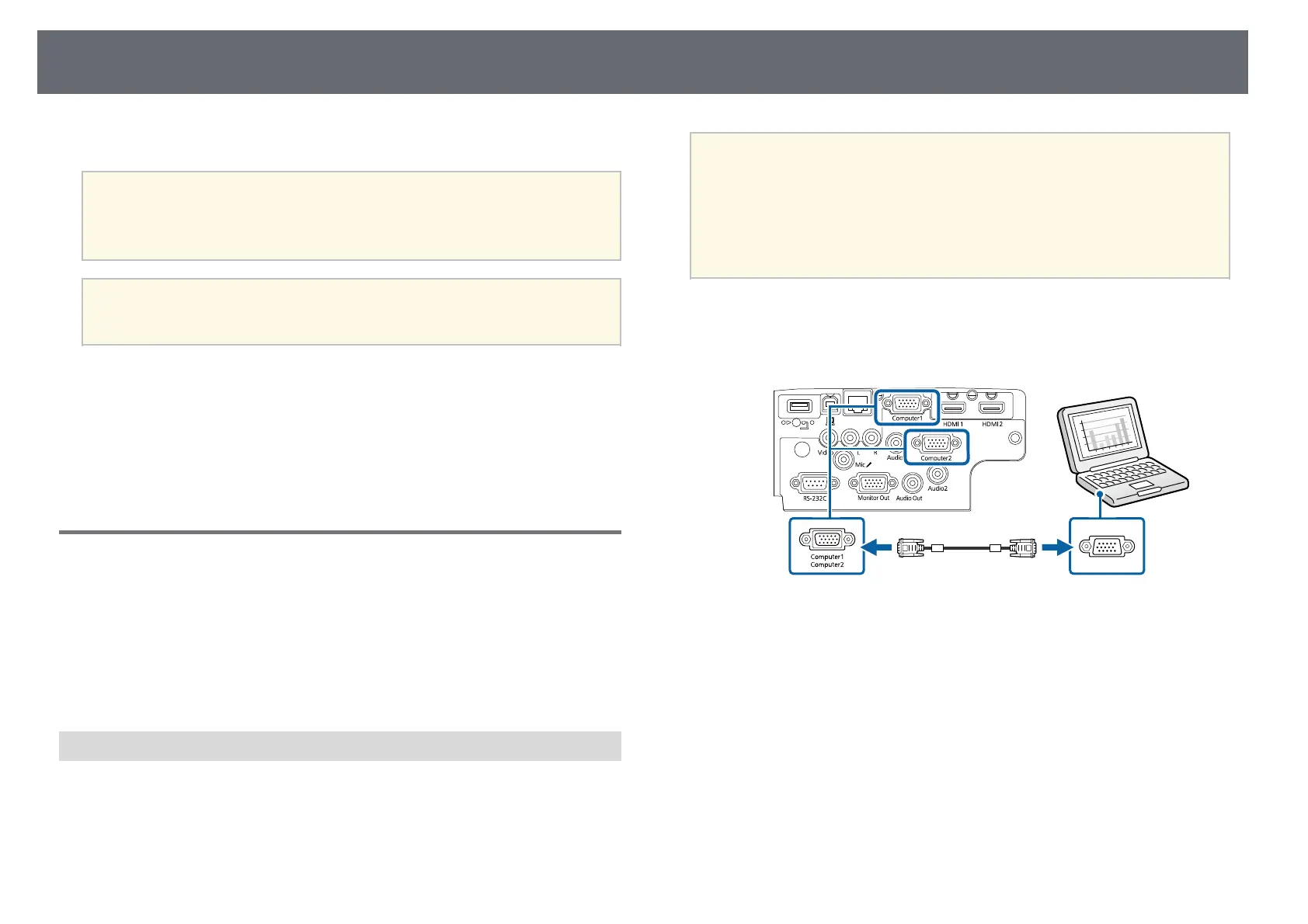

Connecting to a Computer for VGA Video and Audio
You can connect the projector to your computer using a VGA computer
cable.
You can play sound through the projector's speaker system by connecting a
commercially available 3.5 mm stereo mini-jack audio cable.
a
• To connect a computer that does not have a VGA video port, you
need an adapter that allows you to connect to the projector's VGA
video port.
• You can also set the port used for audio input in the projector's
Extended menu.
s Extended > A/V Settings > Audio Settings > Audio Output
• Make sure the audio cable is labeled "No resistance".
a
Connect the VGA computer cable to your computer's monitor port.
b
Connect the other end to a Computer port on the projector.
c
Tighten the screws on the VGA connector.
d
Connect the audio cable to your laptop's headphone or audio-out jack,
or your desktop's speaker or audio-out port.

Epson EB-E20 Specifications

General

Matrix size	0.55 \
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	30 - 350 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	5 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Built-in display	No
Noise level	37 dB
Preset modes	Blackboard, Dynamic, Presentation, Theatre, sRGB
Noise level (economic mode)	28 dB
Focus	Manual
Throw ratio	1.44 - 1.95:1
Fixed focal length	16.7 mm
Focal length range	- mm
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Analog signal format system	-
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	282 mm
Width	309 mm
Height	87 mm
Weight	2700 g
